Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |

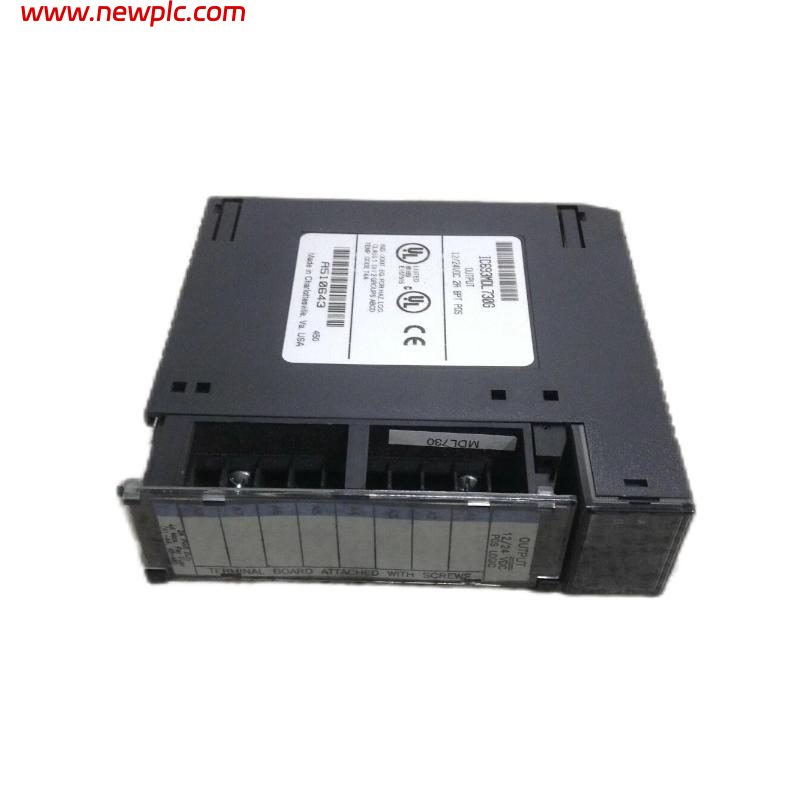

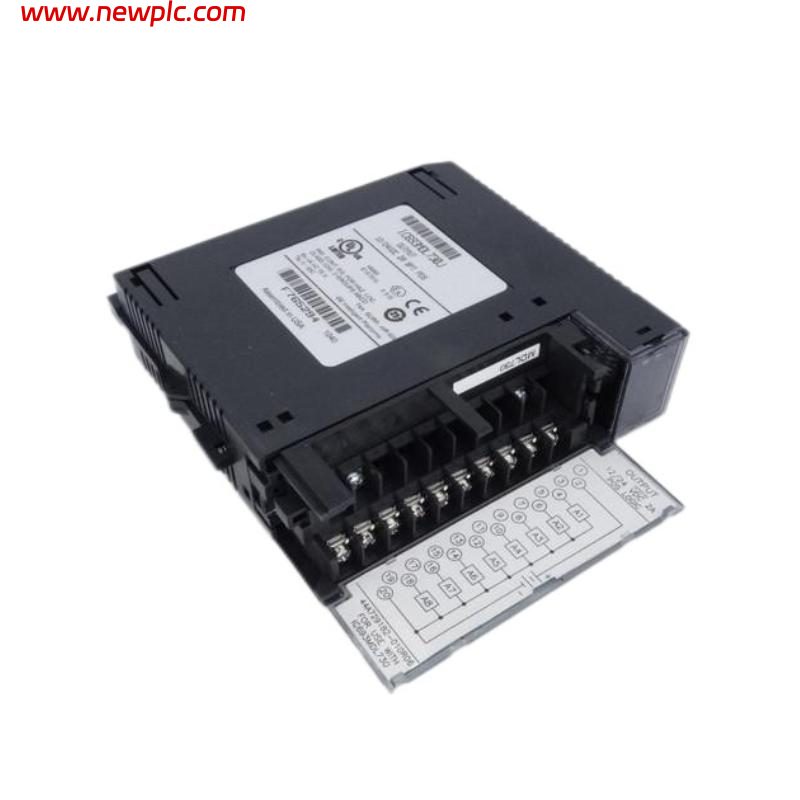

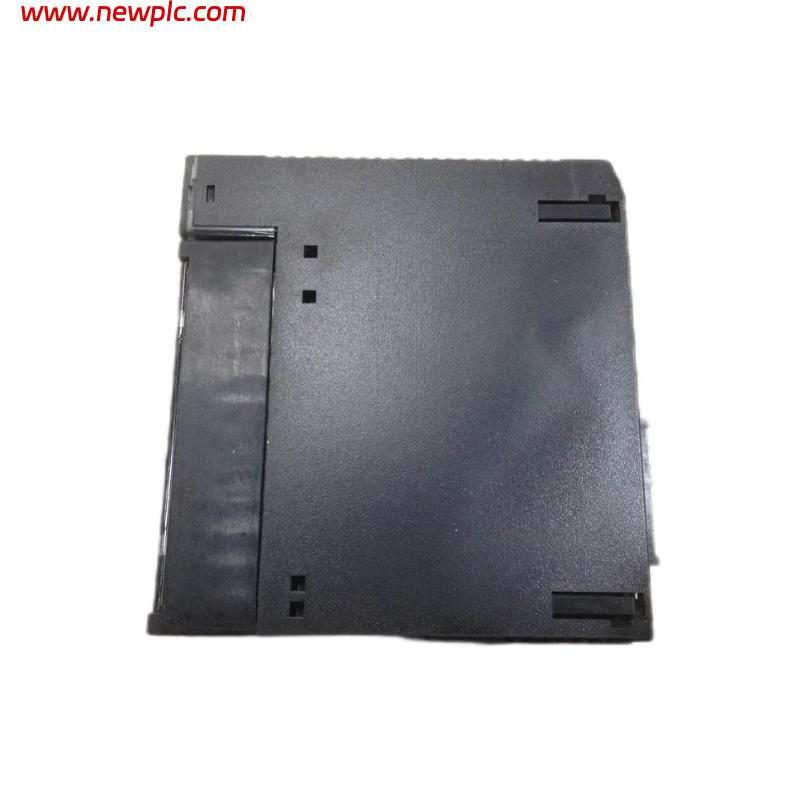

| Product Model | IC693MDL730E |
| Product Type | Discrete DC Output Module |
| Series | Series 90-30 PLC |
| Function | Provides transistor-based digital DC output signals for controlling external field devices |
| Output Type | Positive Logic Transistor Output |
| Number of Output Points | 8 points |
| Output Groups | 1 group of 8 outputs |
| Nominal Output Voltage | 12/24 VDC |
| Output Voltage Range | 10.2–28.8 VDC (12/24 VDC +20%, -15%) |
| Output Current | 2 A maximum per point |
| Output Current per Fuse | 2 A maximum at 60°C; 4 A maximum at 50°C |
| Maximum Inrush Current | 9.4 A for 10 ms |
| Output Voltage Drop | 1.2 V maximum |
| Off-State Leakage Current | 1 mA maximum |
| ON Response Time | 2 ms maximum |
| OFF Response Time | 2 ms maximum |
| Isolation | 1500 VAC between field side and logic side |
| Output Protection | Fused output groups |
| Power Consumption | 55 mA from 5 VDC backplane supply (all outputs ON) |
| Internal Power Source | Supplied by Series 90-30 backplane |
| Wiring Connection | 20-pin terminal block |
| Compatible Systems | GE Fanuc / Emerson Series 90-30 PLC |
| Mounting Location | Any Series 90-30 I/O slot |
| Status Indicators | Individual output status LEDs |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (H × W × D) | Approx. 130 × 35 × 125 mm (5.12 × 1.38 × 4.92 in.) |
| Weight | Approx. 0.34 kg (0.75 lb) |
| Hardware Revision | E |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC693MDL730E used for?
The IC693MDL730E is an 8-point positive logic DC output module for the Series 90-30 PLC platform. It is used to switch 12/24 VDC field devices such as solenoid valves, relays, contactors, and indicator lamps.
Q2: How many output channels does the IC693MDL730E provide?
The module provides 8 transistor output channels arranged as one output group. Each output point can independently control a connected 12/24 VDC load.
Q3: What voltage and current ratings are supported by the IC693MDL730E?
The module operates with 12/24 VDC output voltage and supports up to 2 A per output point, making it suitable for higher-current DC control applications.
Q4: Does the IC693MDL730E require an external power supply?
The module receives its internal operating power from the Series 90-30 backplane. However, an external DC supply is required to power the connected field devices connected to the outputs.
Q5: What type of output technology does the IC693MDL730E use?
The IC693MDL730E uses transistor-based positive logic outputs, providing fast switching performance compared with relay output modules and making it suitable for frequent switching operations.
Q6: What protection features are included in the IC693MDL730E?
The module includes fused output protection and provides protection against abnormal output conditions. Each output group is protected by dedicated fusing to improve system reliability.
Q7: What does the “E” revision indicate?
The “E” suffix identifies the hardware revision of the IC693MDL730 output module. Revision letters represent manufacturing and lifecycle updates while maintaining compatibility with Series 90-30 PLC systems.
Q8: What should be checked before replacing an IC693MDL730E module?
Before replacement, verify the Series 90-30 baseplate compatibility, output voltage requirements, field wiring, load current ratings, fuse conditions, PLC hardware configuration, and connected field devices to ensure correct operation after installation.
