Technical Specifications
| Parameter | Value |
|---|---|

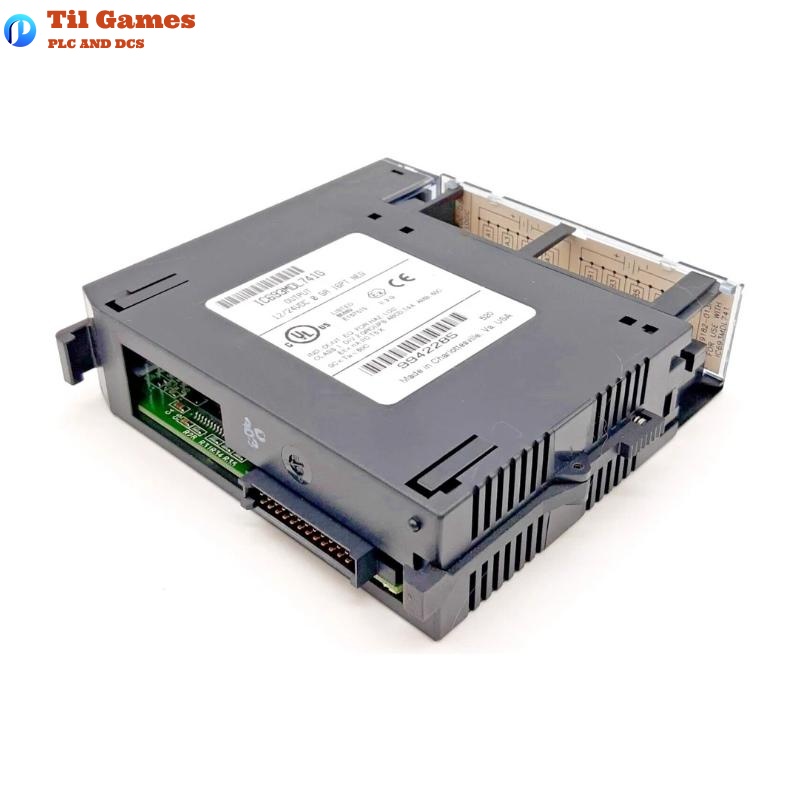

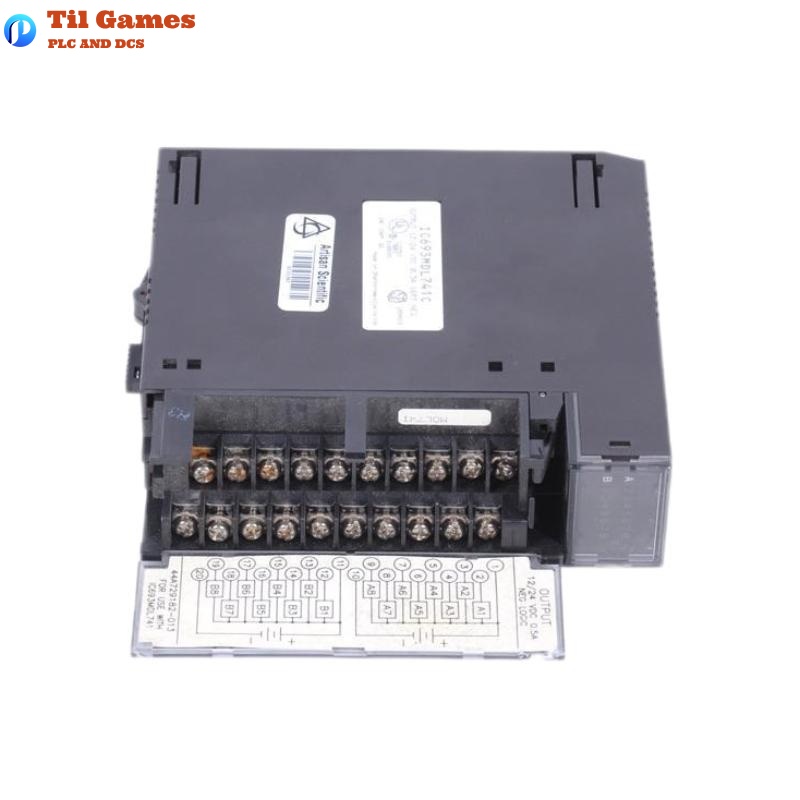

| Model Number | IC693MDL741 |
| Module Type | Digital DC Output Module |
| Number of Outputs | 8 Points |
| Output Type | Positive Logic (Sourcing) |
| Rated Voltage | 24 VDC |
| Voltage Range | 5 ~ 30 VDC |
| Max Current/Point | 0.5 A |
| Max Current/Module | 2 A |
| Response Time | Max 0.2 ms |
| Output Protection | Suppression diode for inductive load |
| Load Type | Resistive and Inductive |
| Isolation Voltage | 1500 VAC (to backplane), 500 VAC (point-to-point) |
| Dimensions | 150 × 100 × 70 mm |
| Weight | 0.4 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many output points does the IC693MDL741 provide?
A1: It provides 8 independent DC output points.
Q2: Is the output type sourcing or sinking?
A2: It is a sourcing (positive logic) output module.
Q3: What is the maximum current per output point?
A3: Each channel can handle up to 0.5 A.
Q4: What voltage range does this module support?
A4: The supported voltage range is from 5 to 30 VDC.
Q5: Does the module have built-in short-circuit protection?
A5: No, short-circuit protection is not built-in. External fusing is recommended.
Q6: What is the switching response time?
A6: The typical response time is up to 0.2 milliseconds.
Q7: Does the module provide electrical isolation?
A7: Yes, it offers 1500 VAC isolation from the backplane and 500 VAC between output points.
Q8: What are the typical applications for this module?
A8: It is commonly used for switching 24VDC loads such as indicator lamps, solenoids, and small motors.
