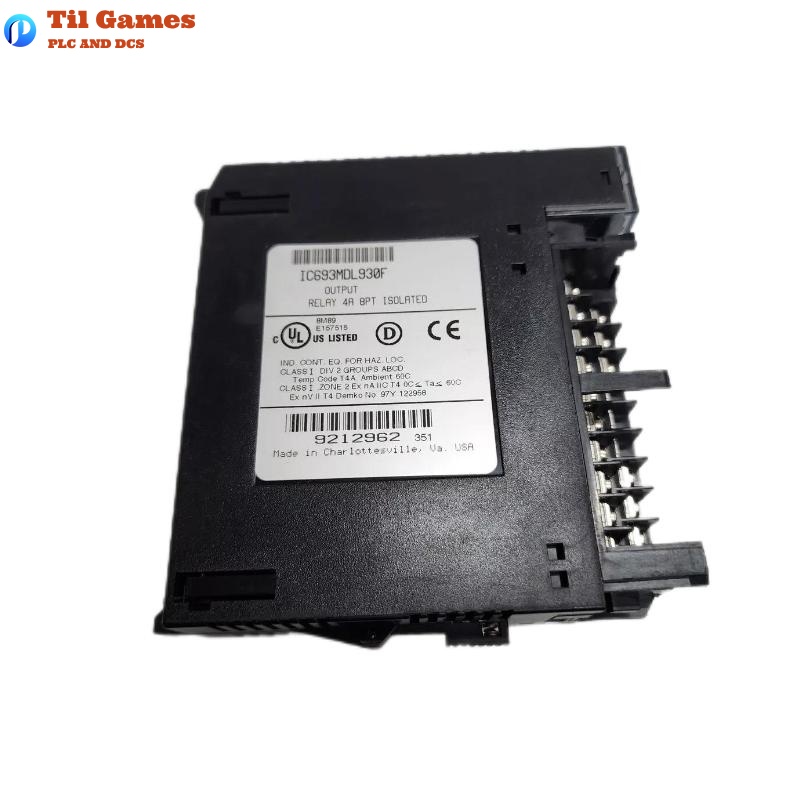

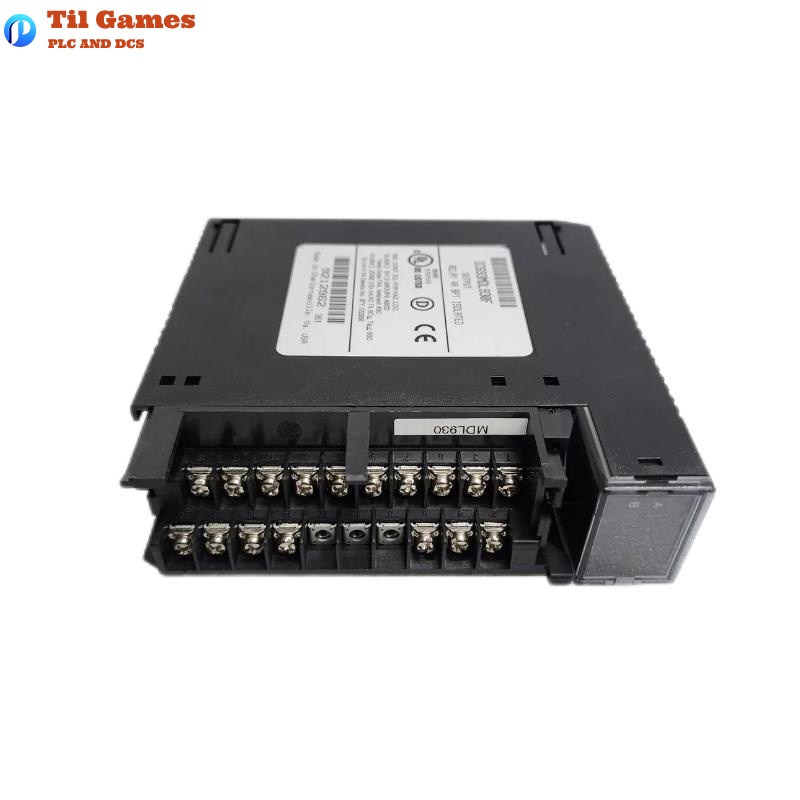

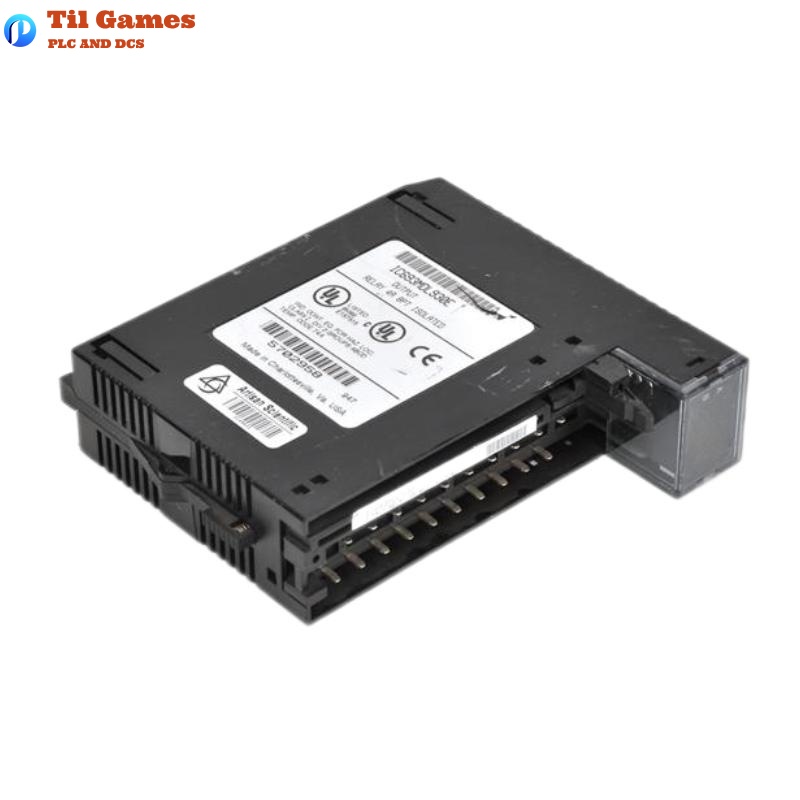

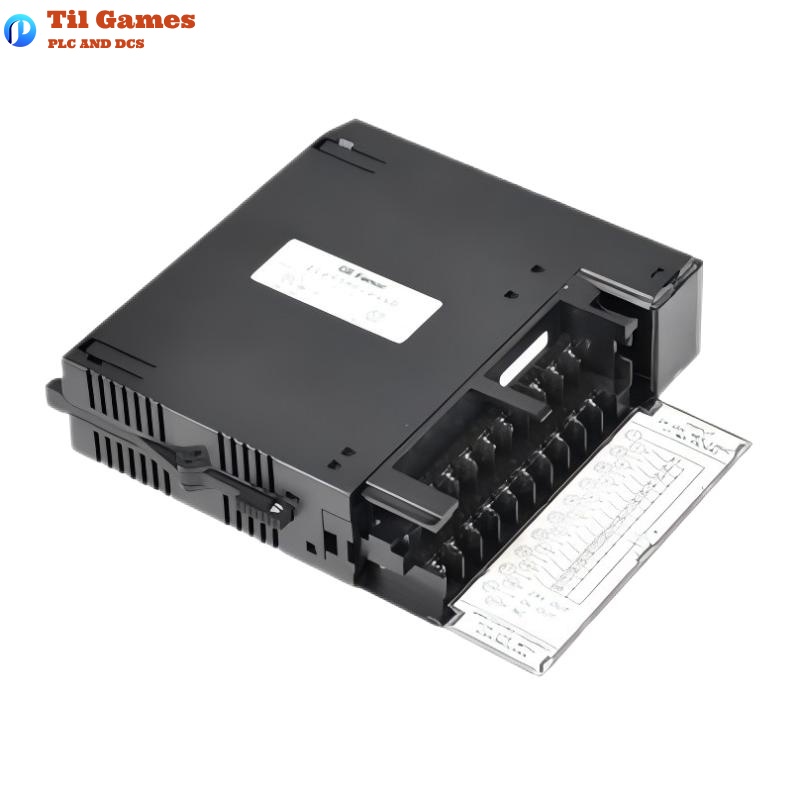

Manufacturer:GE
Product Number:IC693MDL930
Product Type:AC/DC Voltage Output Module
Origin:USA
Dimensions:89 x 107 x 188 mm
Weight:0.45 kg
FAQ
FAQ
Q1: What type of outputs does the IC693MDL930 provide?
A1: It provides 8 isolated normally open relay outputs.
Q2: Can the outputs be used for both AC and DC loads?
A2: Yes, they can handle both AC (up to 250 VAC) and DC (up to 125 VDC) loads.
Q3: What is the maximum load per output channel?
A3: Each channel supports up to 4 A resistive load.
Q4: Is this module hot-swappable?
A4: No, hot-swapping is not supported and may damage the module or system.
Q5: How are the relay outputs indicated?
A5: Each output has a corresponding LED to indicate its ON/OFF state.
Q6: What precautions are needed for hazardous locations?
A6: Must be installed in an ultimate enclosure and not serviced live in hazardous areas.
Q7: What is the lifespan of relay contacts under typical loads?
A7: From 50,000 to 1,000,000 operations depending on load type and voltage.
Q8: Are there built-in fuses in this module?
A8: No, the module does not contain internal fuses.
