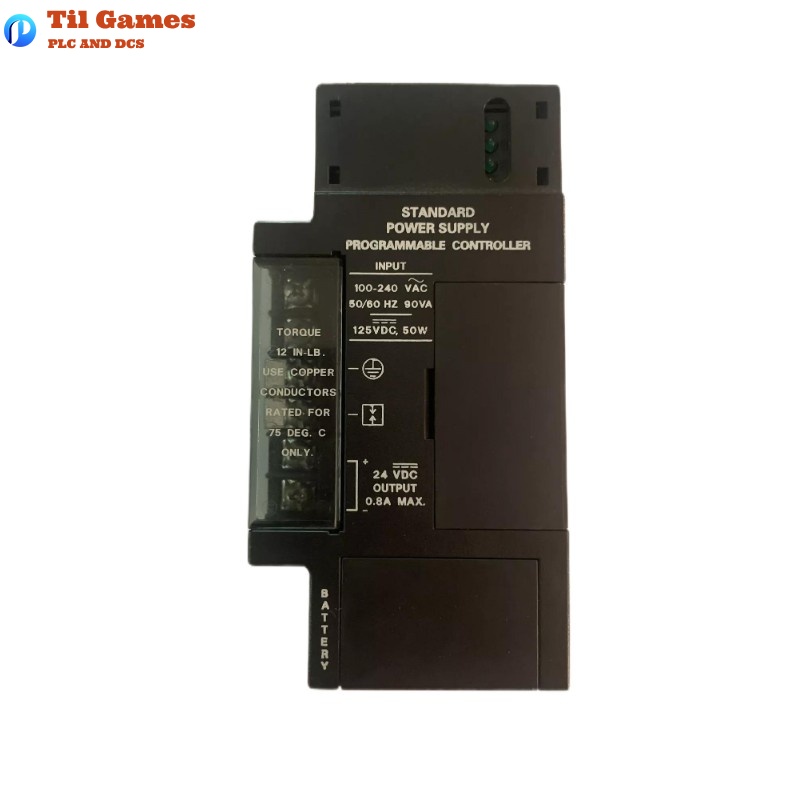

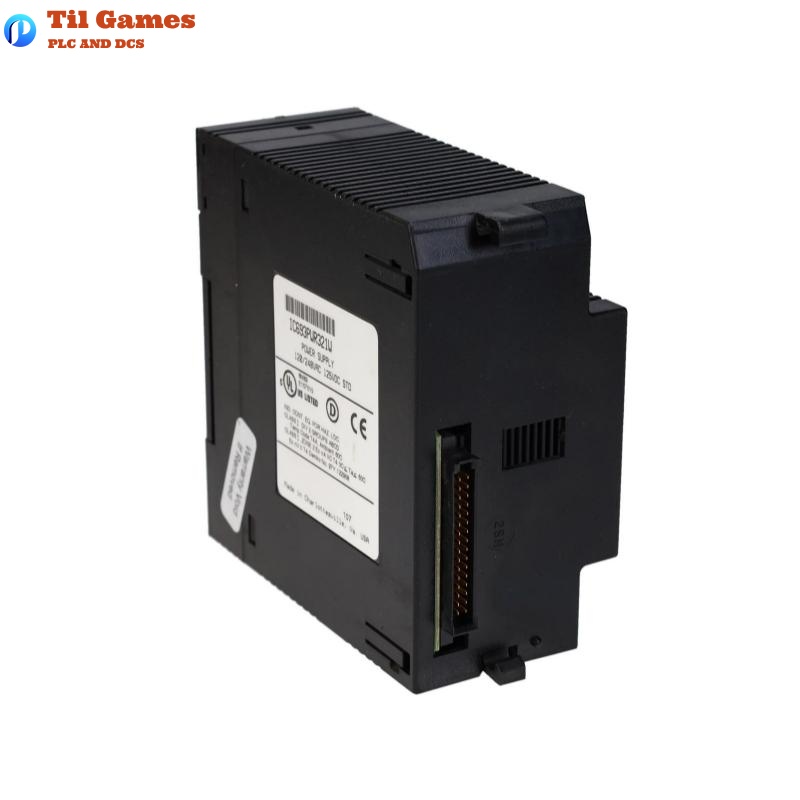

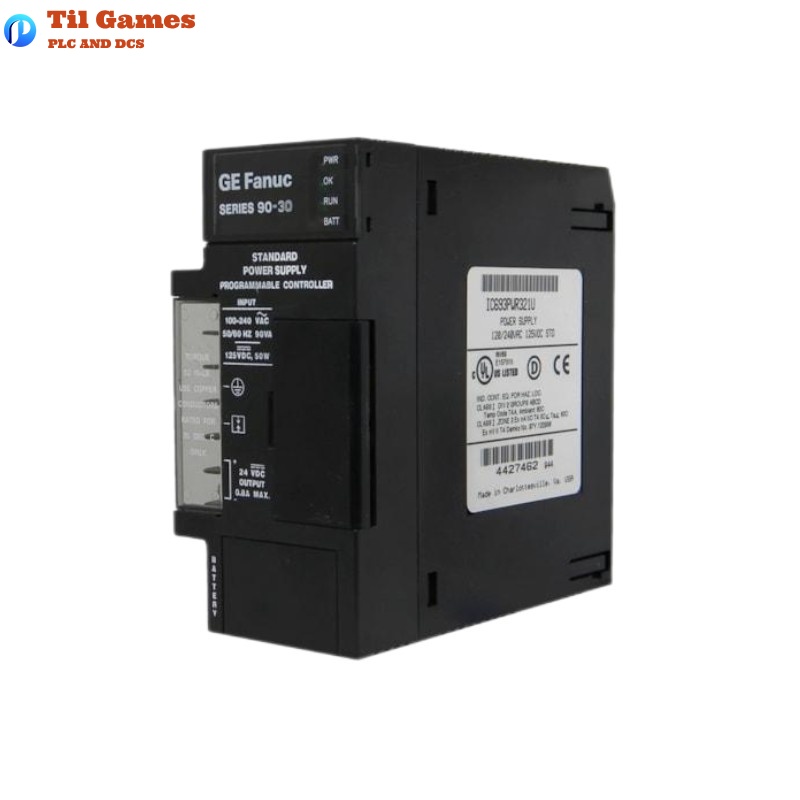

GE IC693PWR321 Series 90-30 Power Supply

Frequently Asked Questions (FAQ)

Q1: What is the maximum output power of the IC693PWR321?
A1: The combined total output of all channels must not exceed 30 watts.

Q2: Does this module support DC power input?
A2: Yes, it supports a DC input range of 100 to 300 VDC.

Q3: How many types of +24V outputs does it have?
A3: Two types: Isolated 24V DC output and 24V DC Relay output.

Q4: Is there overvoltage and overcurrent protection?
A4: Yes, the +5 VDC output is protected against overvoltage (6.4–7 V) and overcurrent (4 A max).

Q5: What is the typical application of the IC693PWR321?
A5: It provides power to GE Fanuc Series 90-30 PLC systems.

Q6: Can the isolated 24V DC output be used for external modules?
A6: Yes, it can power external 24V DC input modules.

Q7: Are there status LEDs on the module?
A7: Yes, indicators such as PWR OK, RUN, and BATT are included on the front panel.

Q8: Is there any restriction on installation position?
A8: Yes, it must be installed in the leftmost slot of any baseplate.

GE IC693PWR321 Power Supply Series 90-30
