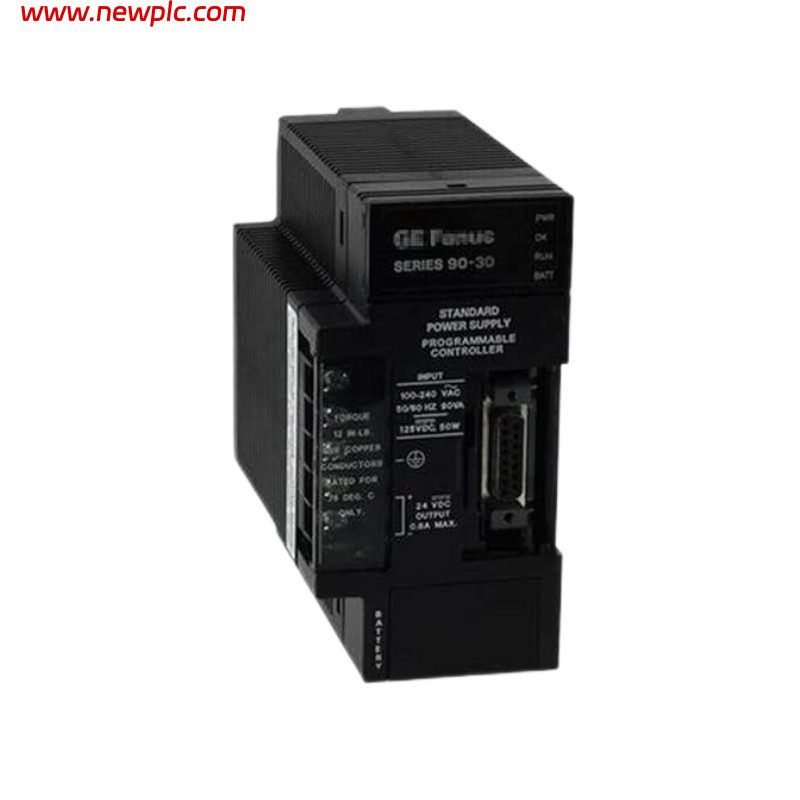

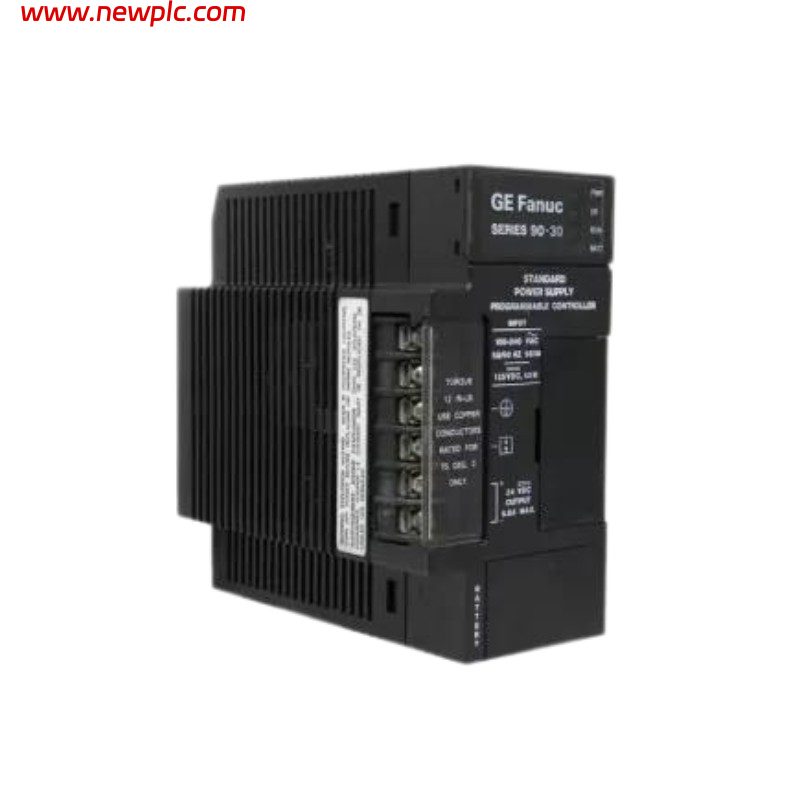

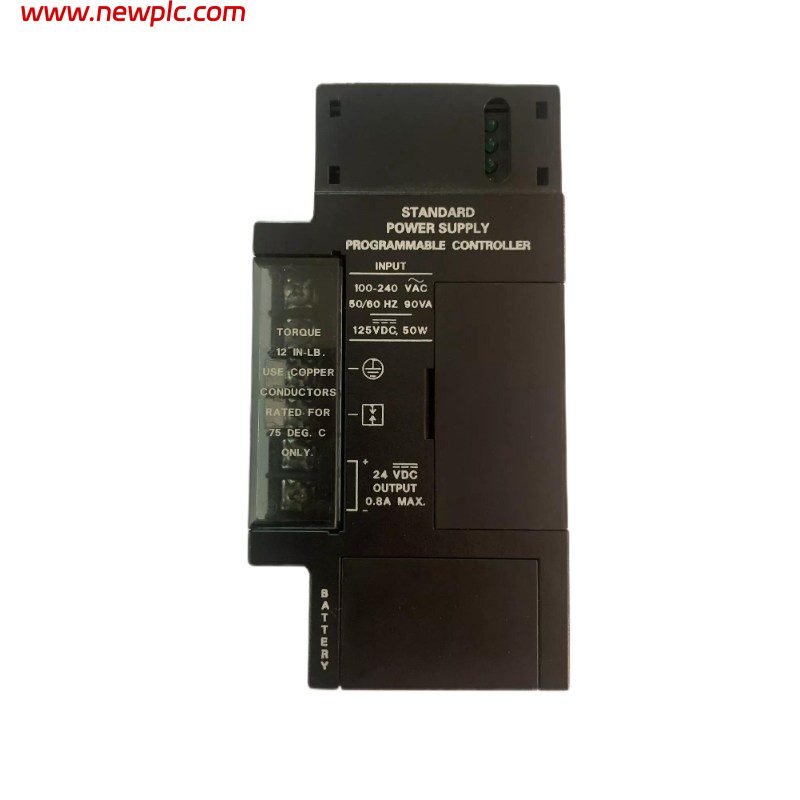

GE IC693PWR321Z Standard AC/DC Power Supply Module

FAQ

Q1: What is the GE Fanuc IC693PWR321Z used for?
The IC693PWR321Z is a standard power supply module for the Series 90-30 PLC system. It converts AC or DC input power into regulated DC outputs required by the PLC CPU, I/O modules, and external 24 VDC devices.

Q2: What input voltage does the IC693PWR321Z support?
The module supports a wide input range of 85–264 VAC or 100–300 VDC, allowing it to operate in both AC-powered and DC-powered industrial control systems.

Q3: What output voltages are provided by the IC693PWR321Z?
The power supply provides three DC outputs: +5 VDC output, +24 VDC Relay output, and isolated +24 VDC output. The isolated 24 VDC output can also be used to supply compatible 24 VDC input modules.

Q4: What is the maximum power capacity of the IC693PWR321Z?
The module provides a maximum combined output capacity of 30 watts. The individual outputs have separate power ratings, but the total load of all outputs must not exceed 30 W.

Q5: Where is the IC693PWR321Z installed in a Series 90-30 PLC system?
The module must be installed in the leftmost slot of the Series 90-30 baseplate. It supplies power to the CPU and all connected modules on that rack.

Q6: Does the IC693PWR321Z include protection functions?
Yes. The power supply includes current limiting for direct short conditions, overload protection, and diagnostic features to help protect the PLC hardware and improve system reliability.

Q7: What does the “Z” revision indicate?
The “Z” suffix identifies the hardware revision of the IC693PWR321 power supply. It represents a later production version while maintaining compatibility with Series 90-30 PLC systems.

Q8: What should be checked before replacing an IC693PWR321Z?
Before replacement, verify the input power type (AC or DC), baseplate compatibility, total PLC power consumption, wiring connections, battery connection, and output load requirements to ensure correct operation after installation.
