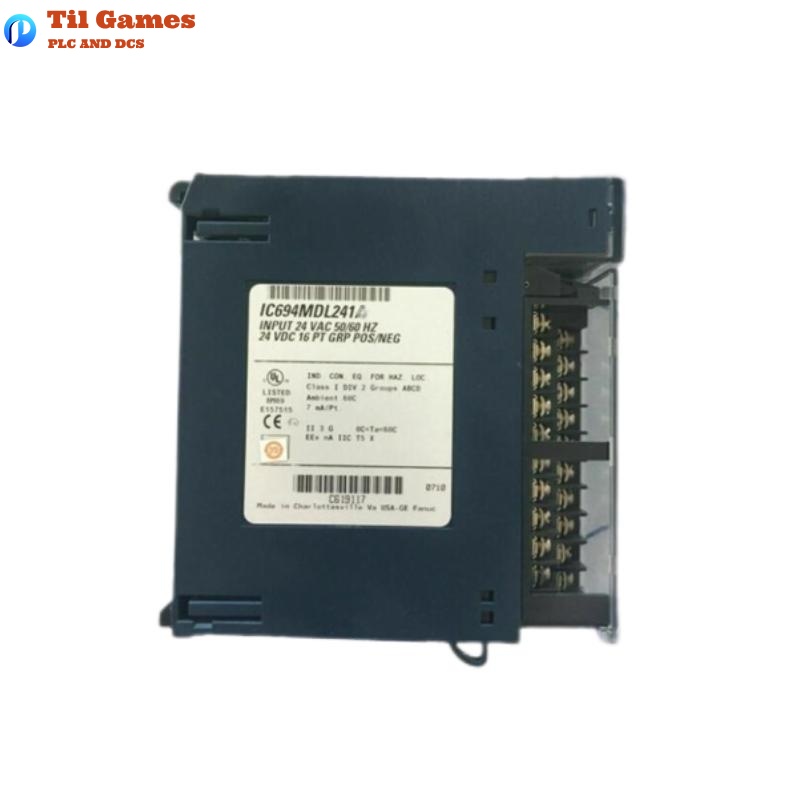

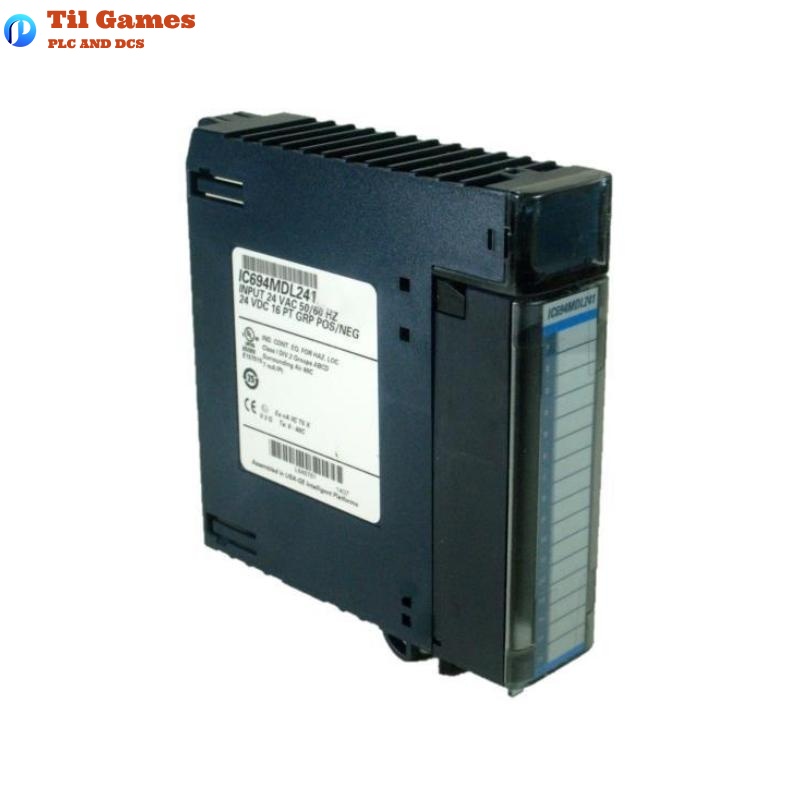

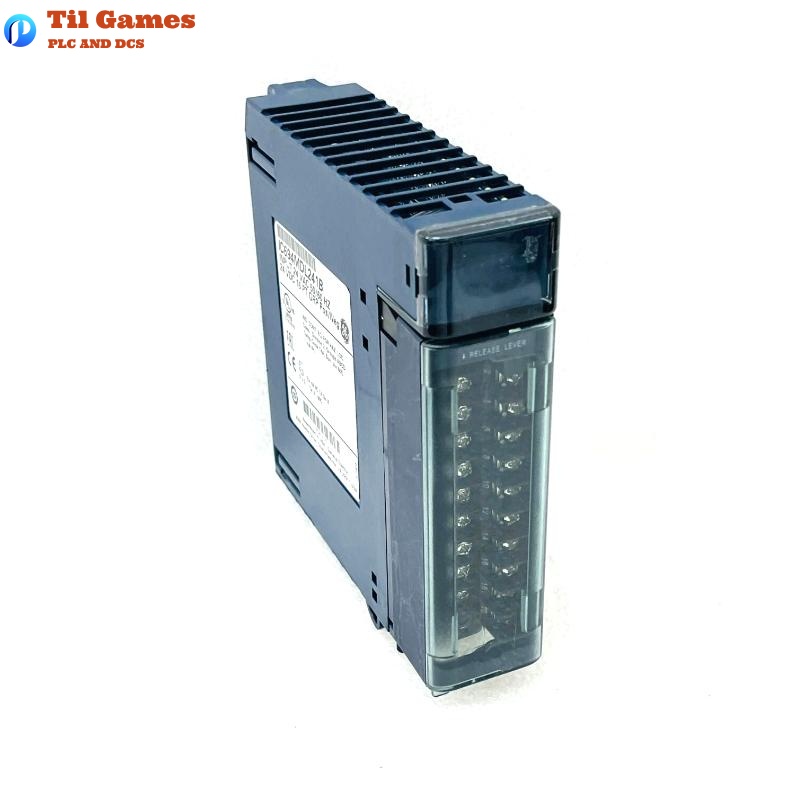

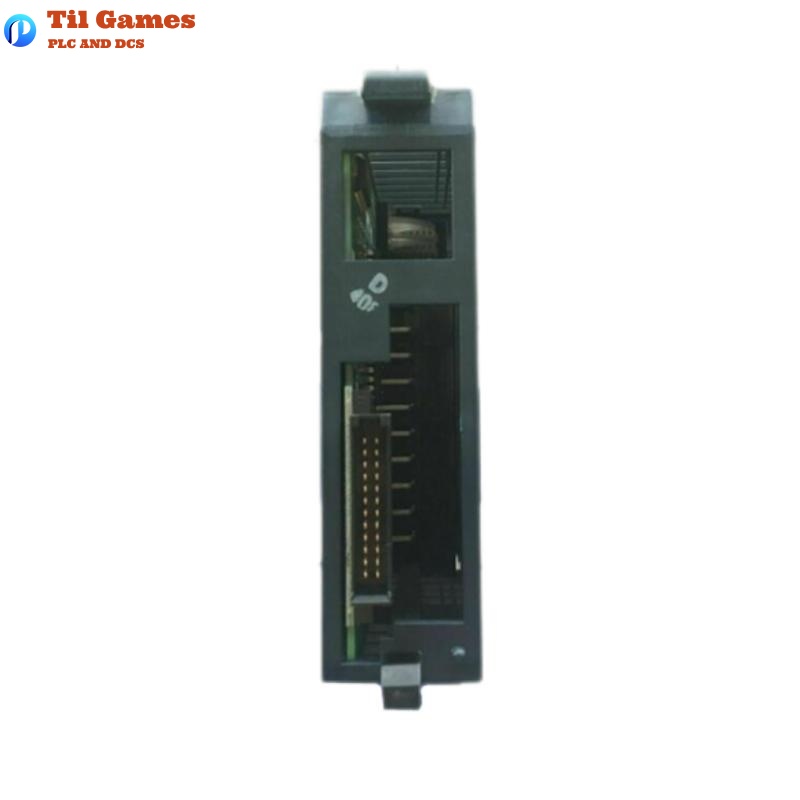

Technical Specifications
| Parameter | Technical Data |
|---|---|
| Module Model | IC694MDL241 |
| Rated Input Voltage | 24V AC or 24V DC |
| Input Voltage Range | 0 to +30V AC/DC, 50/60Hz |
| Number of Inputs | 16 (single group with one common terminal) |
| Isolation | Optical isolation: 250 VAC continuous, 1500 VAC for 1 min |
| Input Current | 7 mA typical at rated voltage |
| On-State Voltage | 11.5 to 30V AC or DC |
| Off-State Voltage | 0 to +4V AC or DC |
| On-State Current | Minimum 3.2 mA |
| Off-State Current | Maximum 1 mA |
| On Response Time | 12 ms typical |
| Off Response Time | 28 ms typical |
| Power Consumption 5V | 80 mA from 5V backplane (all inputs ON) |
| Power Consumption 24V | 125 mA from isolated 24V or user power supply |
| Status Indicators | 16 green LEDs for individual input point status |
| Installation Position | Any I/O slot of the RX3i system |
| Dimensions (W×H×D) | 34 × 145 × 140 mm |
| Weight | 0.24 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What voltage types are supported by the IC694MDL241 module?
A1: It supports 24V AC and 24V DC input with both positive and negative logic.
Q2: How many input points are available on this module?
A2: The module provides 16 input points in a single group with a common terminal.
Q3: Does the module include input status indicators?
A3: Yes, 16 green LEDs indicate the ON/OFF status of each input point.
Q4: Is there electrical isolation between field input and backplane?
A4: Yes, optical isolation provides 250 VAC continuous or 1500 VAC for one minute.
Q5: Where can this module be installed?
A5: It can be installed in any I/O slot within the PACSystems RX3i rack.
Q6: Does the module support negative logic?
A6: Yes, in DC mode, the input logic can be configured for either positive or negative logic.
Q7: What is the power consumption of the module on 5V and 24V buses?
A7: It draws 80 mA from 5V (when all inputs are ON) and 125 mA from 24V.
Q8: What are the dimensions and weight of the module?
A8: The module measures 34 x 145 x 140 mm and weighs 0.24 kg.
