Technical Specifications:
| Parameter | Value |
|---|---|
| Module Type | Discrete Output |
| Number of Points | 32 |
| Output Voltage Range | 12-24 VDC |
| Load Current per Point | 0.5 A |
| Response Time | 0.5 ms on / 0.5 ms off |
| Output Type | Transistor |
| Polarity | Positive |
| Points per Common | 8 |
| Connector Type | Terminal Block (20 screws) |
| Internal Power Used | 260 mA @ 5 VDC |
| Dimensions | 34 x 145 x 140 mm |
| Weight | 0.249 kg |
FAQ

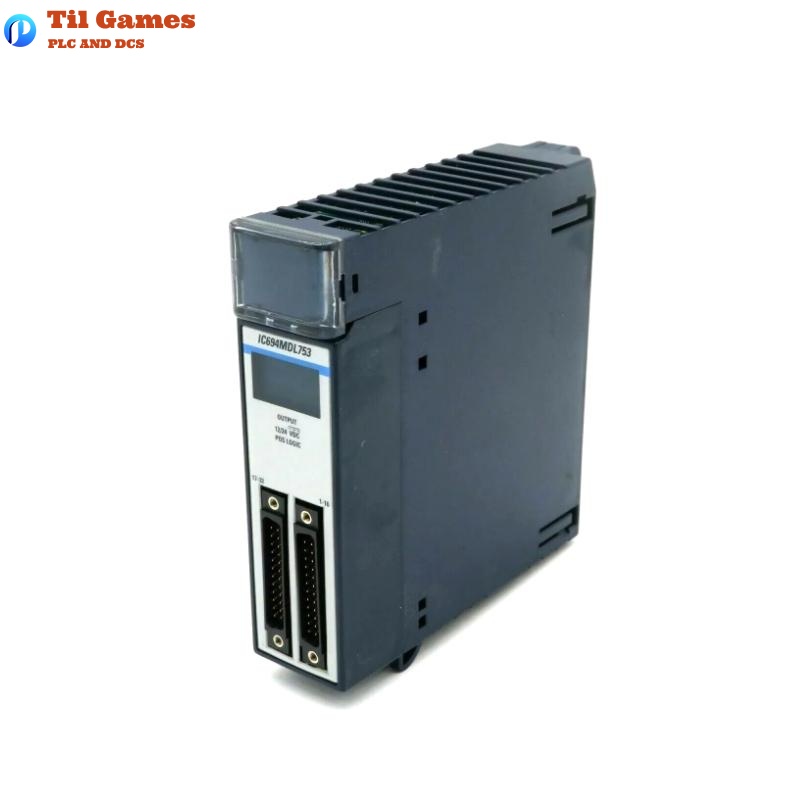

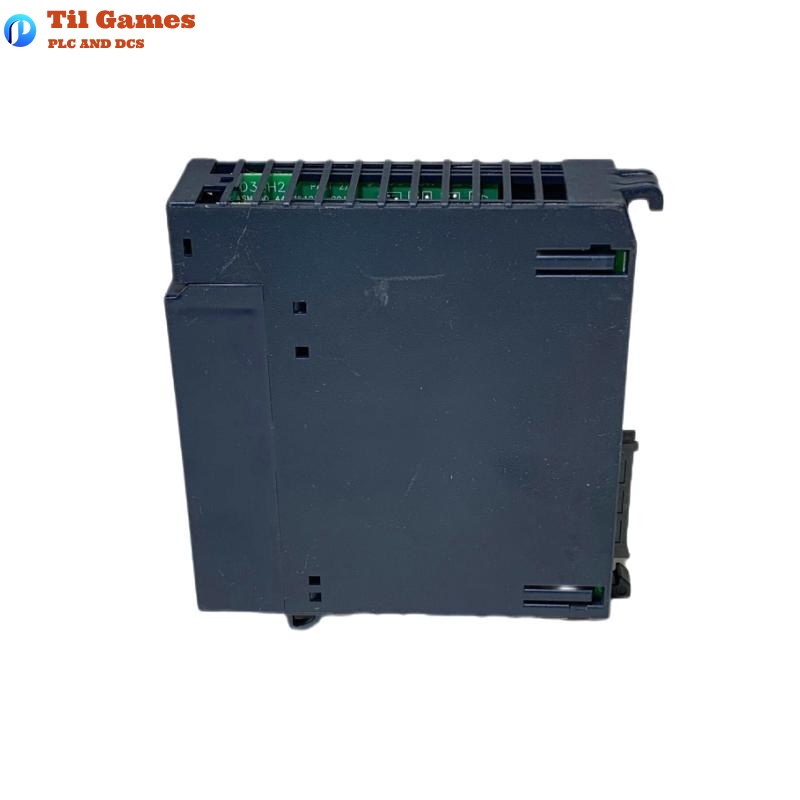

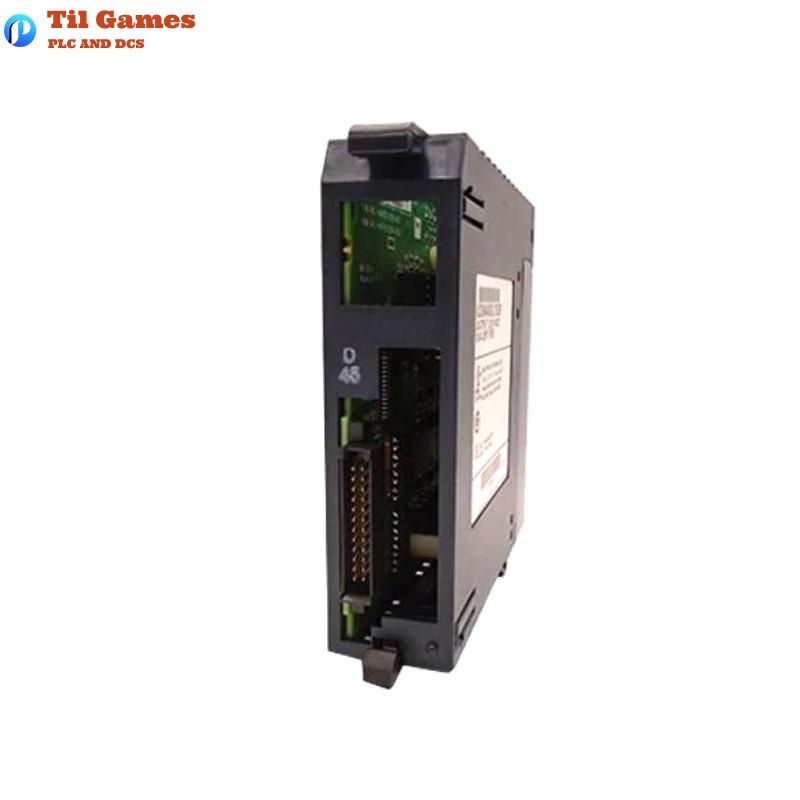

GE IC694MDL753 PACSystems RX3i DC Voltage Output Module – FAQ
Q1: What is the voltage output range of the IC694MDL753 module?
A1: The output voltage range of the IC694MDL753 module is 12-24 VDC.
Q2: How many points does the IC694MDL753 module have?
A2: The module has 32 output points.
Q3: What is the maximum load current per point?
A3: The maximum load current per point is 0.5 A.
Q4: What is the response time of the IC694MDL753 module?
A4: The response time is 0.5 milliseconds on and 0.5 milliseconds off.
Q5: What type of output does the IC694MDL753 module provide?
A5: The module provides a transistor output.
Q6: What is the polarity of the IC694MDL753 output?
A6: The output polarity is positive.
Q7: How many points per common are supported by the IC694MDL753 module?
A7: The module supports 8 points per common.
Q8: What is the weight of the IC694MDL753 module?
A8: The weight of the module is 0.249 kg.
