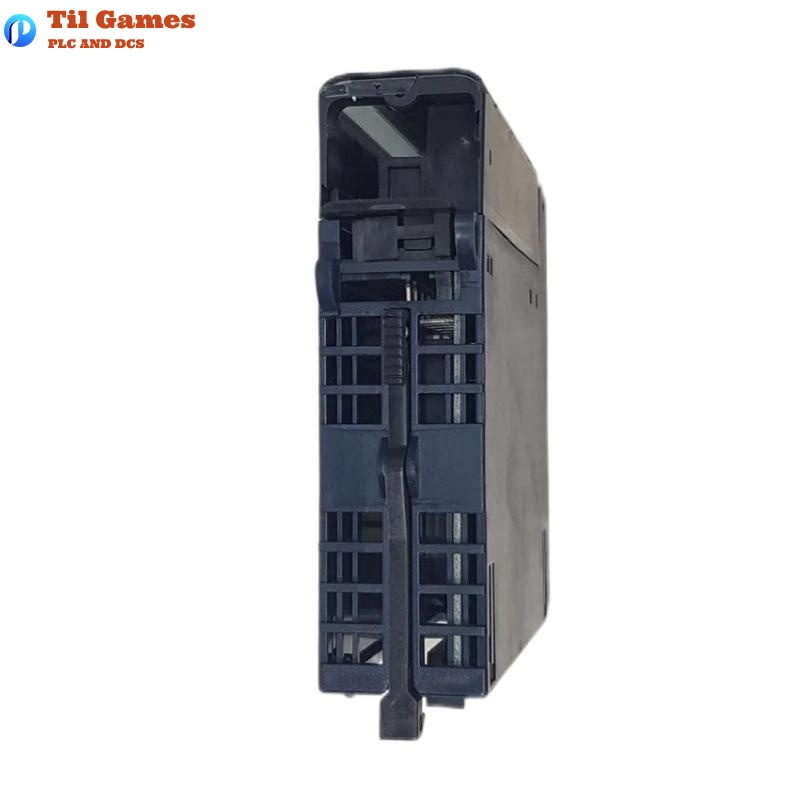

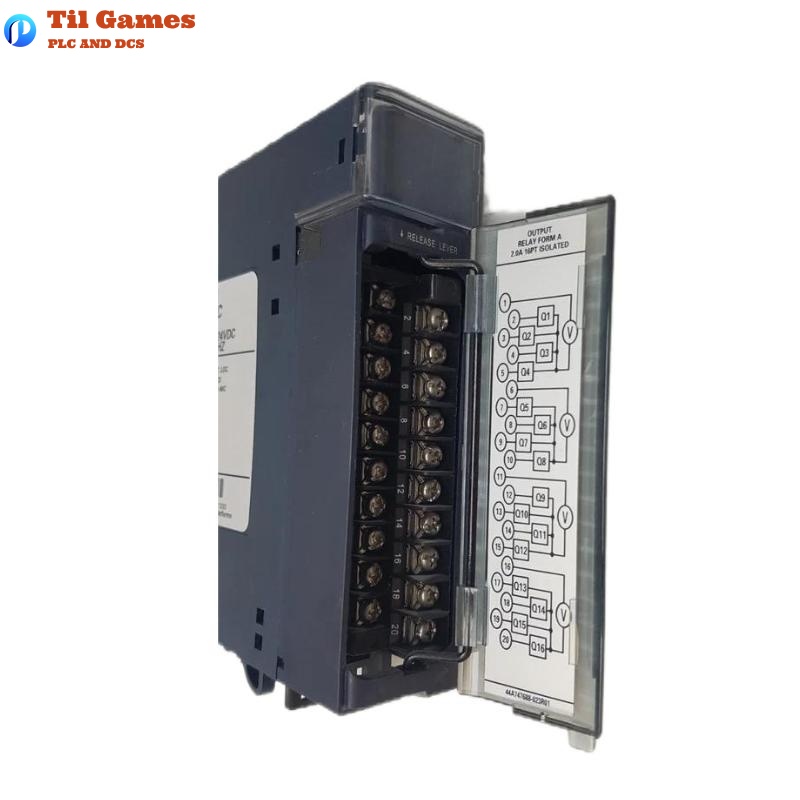

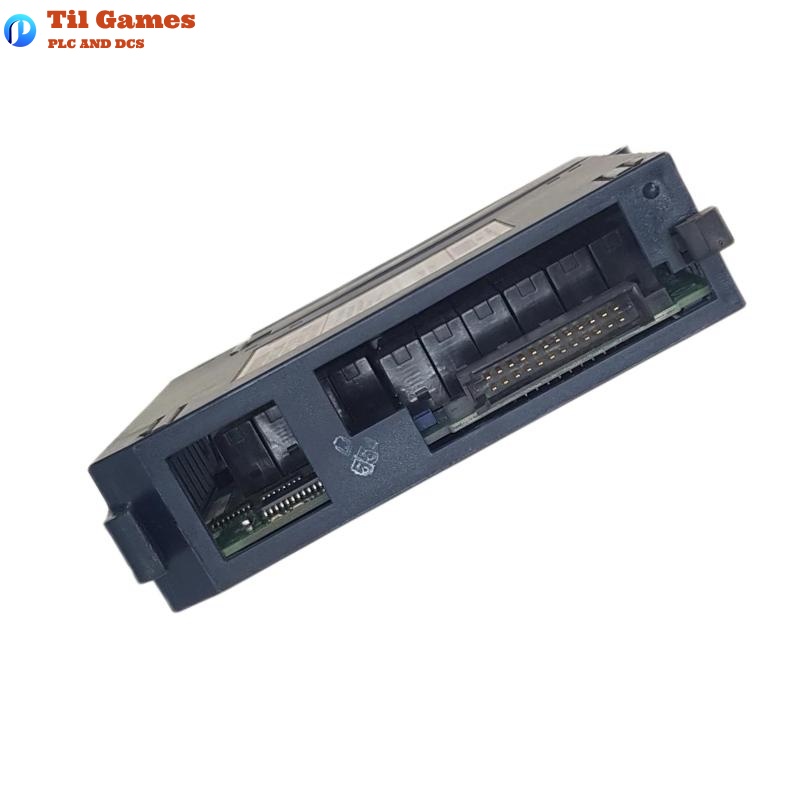

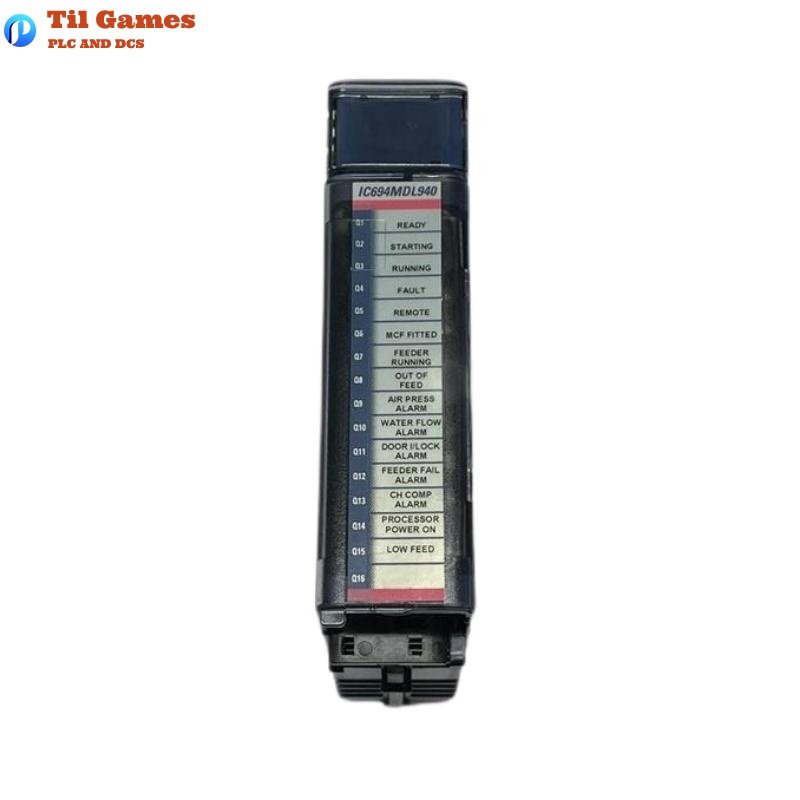

GE IC694MDL940 PACSystems RX3i AC/DC Voltage Output Module Technical Specifications
| Specification | Value |
|---|---|
| Model | IC694MDL940 |
| Output Voltage Range | 120/240 VAC, 0-265 VAC, 47-63 Hz |
| Number of Points | 16 |
| Load Current (per point) | 2 A |
| Response Time (ms) | 15ms on/off |
| Output Type | Relay (N.O.) |
| Isolation | Yes |
| Connector Type | 20-screw terminal block included |
| Internal Power Used | 180 mA @ 5 VDC |
| Dimensions | 34 x 145 x 140 mm |
| Weight | 0.159 kg |
FAQ
GE IC694MDL940 PACSystems RX3i AC/DC Voltage Output Module FAQ
Q: What is the output voltage range of the IC694MDL940 module?
A: The IC694MDL940 supports 120/240 VAC output voltage range, with a 0-265 VAC range and a frequency of 47-63 Hz.
Q: How many output points does the module have?
A: The module has 16 output points.
Q: What is the load current per point for the IC694MDL940?
A: The load current per point is 2 A.
Q: What is the response time of the IC694MDL940?
A: The response time is 15 milliseconds for on/off cycles.
Q: What is the output type of the IC694MDL940?
A: The output type is a relay (N.O., normally open).
Q: Does the IC694MDL940 module provide isolation?
A: Yes, the IC694MDL940 module provides isolation.
Q: What are the dimensions of the IC694MDL940 module?
A: The dimensions are 34 x 145 x 140 mm.
Q: What is the weight of the IC694MDL940 module?
A: The weight is 0.159 kg.
