Technical Specifications
| Parameter | Description |
|---|---|

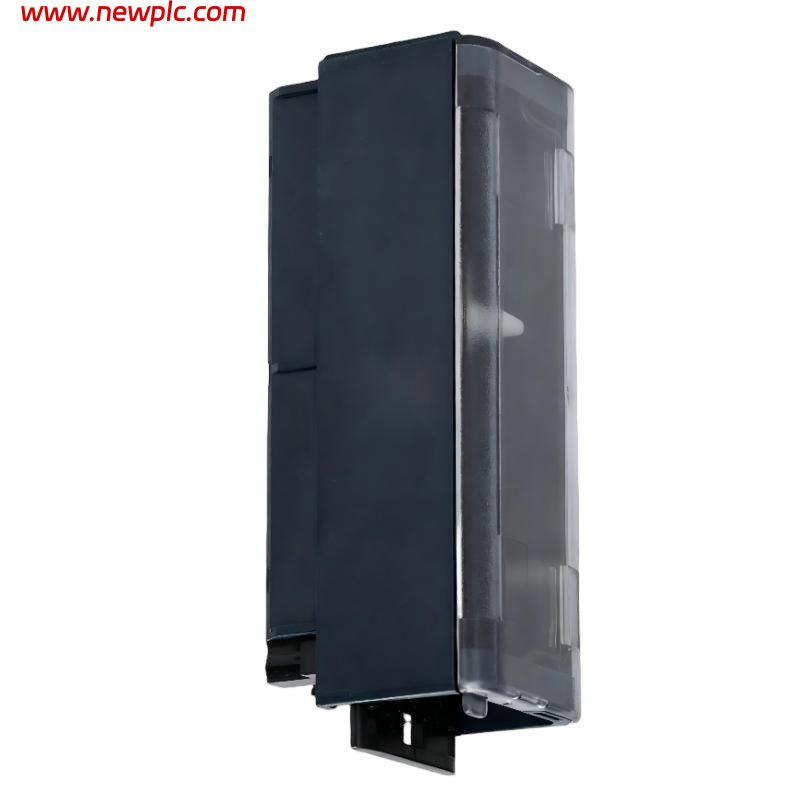

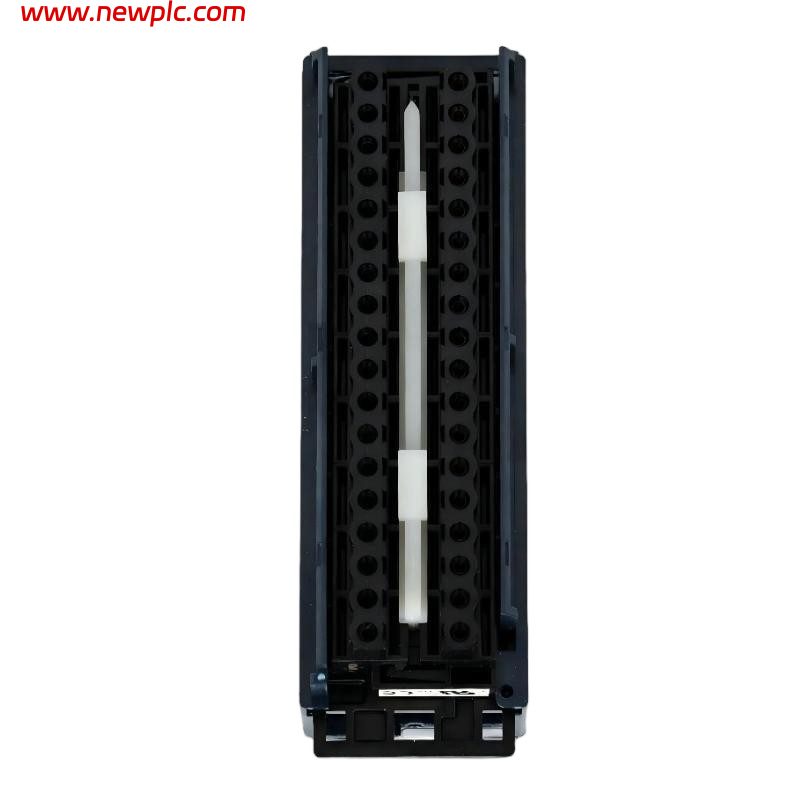

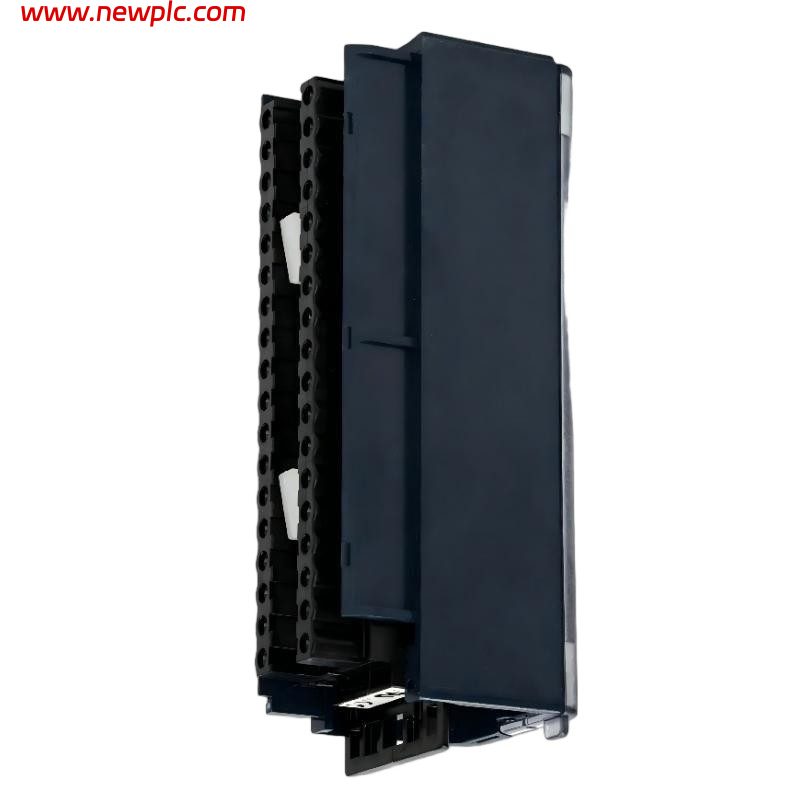

| Product Name | Emerson / GE Fanuc IC694TBS032 |
| Part Number | IC694TBS032 |
| Product Type | High-Density Spring-Style Terminal Block (RX3i / Series 90-30 I/O Accessory) |
| Manufacturer | Emerson Automation (formerly GE Fanuc) |
| Series | PACSystems RX3i |
| Function | Provides field wiring interface between high-density I/O modules and external devices |
| Application | Industrial automation / RX3i PLC systems / Series 90-30 compatible I/O wiring |
| Number of Terminals | 36 points |
| Connection Type | Spring-clamp terminals |
| Wire Size Range | 14–28 AWG (solid or stranded) |
| Strip Length | 0.31 in (7.87 mm) |
| Torque Requirement | 7 lb-in (0.8 N·m) |
| Mounting Type | Plug-in terminal block for RX3i high-density I/O modules |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% RH non-condensing |
| Compliance | Industrial automation accessory (RX3i series standard) |
| Protection | Insulated housing, high-density wiring safety design |
| Parameter | Description |
|---|---|
| Dimensions (W × H × D) | Approx. 34 × 145 × 140 mm |
| Weight | Approx. 0.03 kg (30 g) |
FAQ
FAQ
Q1: What is IC694TBS032 used for?
A1: It is used as a high-density spring-clamp terminal block to connect field wiring to RX3i or compatible Series 90-30 I/O modules.
Q2: Is IC694TBS032 a module or a cable?
A2: It is a terminal block accessory, not a PLC module or cable.
Q3: How many terminals does it have?
A3: It has 36 spring-clamp terminals.
Q4: What wire size is supported?
A4: It supports 14–28 AWG solid or stranded wire.
Q5: What is the stripping length requirement?
A5: Approximately 7.87 mm (0.31 inch).
Q6: What is the tightening torque?
A6: 7 lb-in (0.8 N·m).
Q7: What are its physical dimensions?
A7: Approximately 34 × 145 × 140 mm.
Q8: What is its weight?
A8: Approximately 0.03 kg (30 g).
