Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |

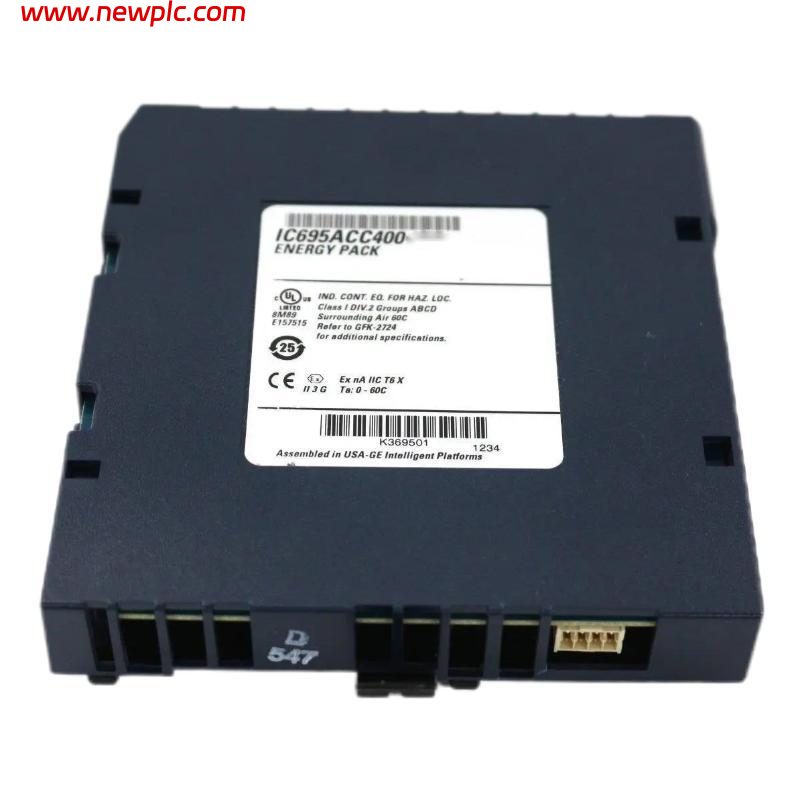

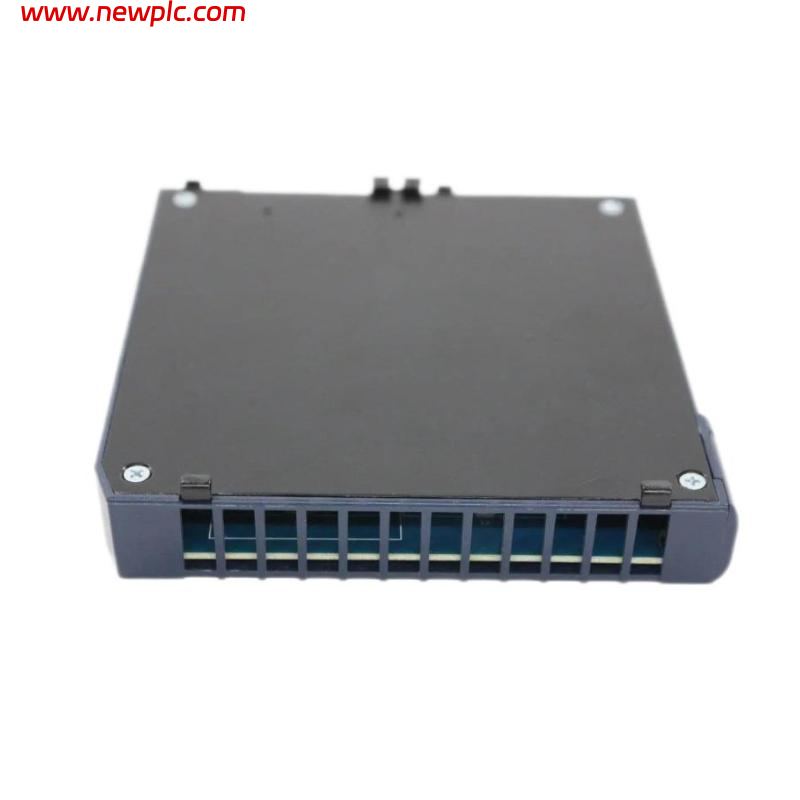

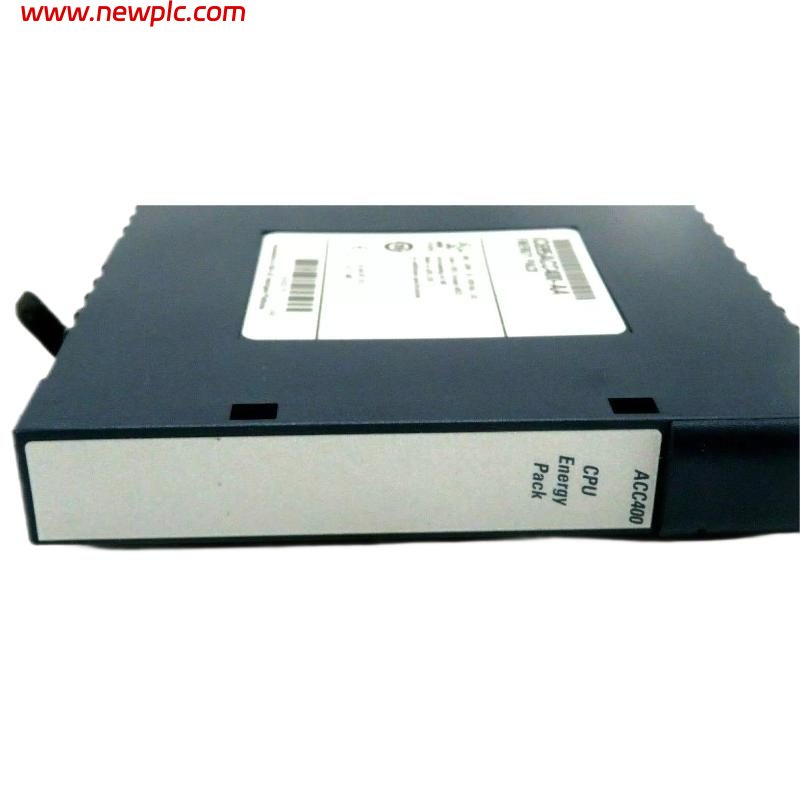

| Product Model | IC695ACC400-AA |
| Product Type | CPU Energy Pack Module |
| Series | PACSystems RX3i |
| Function | Provides backup energy storage for CPU memory retention during power loss |
| Compatible Controllers | CPE305 and CPE310 RX3i CPUs |
| Module Type | Energy Pack / Capacitor-based backup module |
| Backup Function | Maintains CPU RAM data and user program retention during power interruption |
| Battery Type | Capacitor-based energy storage (no traditional battery replacement required) |
| Connection Method | Connects to CPU through energy pack cable |
| Required Cable | IC695CBL001 Energy Pack Cable |
| Mounting Location | Left side of compatible RX3i CPU module |
| Input Voltage | Supplied from RX3i CPU |
| Operating Voltage | 24 VDC system power |
| Energy Storage Function | Provides temporary backup power during loss of main system power |
| Compatible CPU Models | RX3i CPE305 / CPE310 |
| LED Indicators | Status indication through connected CPU system |
| Communication Interface | None |
| Installation Method | Rack-side mounted accessory module |
| Compatible Platform | GE Fanuc PACSystems RX3i |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (H × W × D) | Approx. 140 × 25 × 127 mm (5.5 × 1.0 × 5.0 in.) |
| Weight | Approx. 0.29–0.45 kg (0.64–0.99 lb) |
| Hardware Revision | AA |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC695ACC400-AA used for?
The IC695ACC400-AA is used as an energy backup module for GE Fanuc PACSystems RX3i CPUs, helping maintain CPU memory retention during power failures.
Q2: Which CPUs are compatible with the IC695ACC400-AA?
The module is designed for use with RX3i CPE305 and CPE310 controller CPUs.
Q3: Does the IC695ACC400-AA use a replaceable battery?
No. The IC695ACC400-AA uses an energy storage system rather than a traditional replaceable battery, reducing routine maintenance requirements.
Q4: What cable is required to connect the IC695ACC400-AA to the CPU?
The IC695ACC400-AA requires the IC695CBL001 energy pack cable for connection to compatible RX3i CPUs.
Q5: Where is the IC695ACC400-AA installed?
The module is mounted on the left side of the compatible RX3i CPU module and connects directly to the controller system.
Q6: What happens if the main PLC power is lost?
During a power interruption, the IC695ACC400-AA provides temporary backup energy to help preserve CPU memory contents and support controlled system recovery.
Q7: Is the IC695ACC400-AA compatible with other RX3i CPUs?
No. The module is specifically intended for CPE305 and CPE310 CPUs and should be verified before installation on other RX3i controllers.
Q8: What should be checked before replacing an IC695ACC400-AA?
Before replacement, verify CPU compatibility, energy pack cable connection, mounting position, system power status, PLC configuration, and memory backup requirements to ensure reliable operation.
