Technical Specifications
| Parameter | Specification |
|---|---|

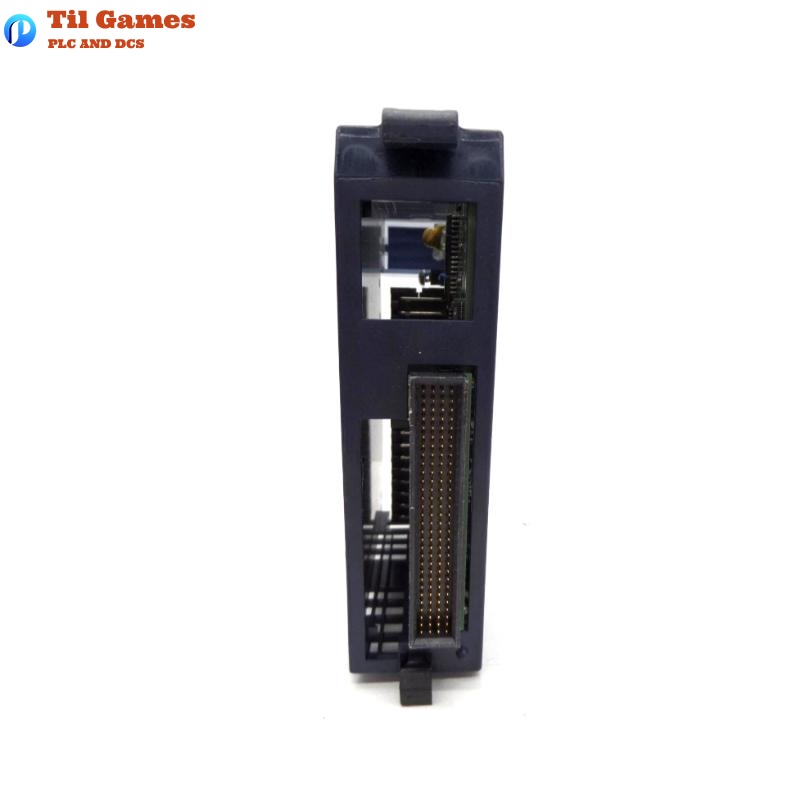

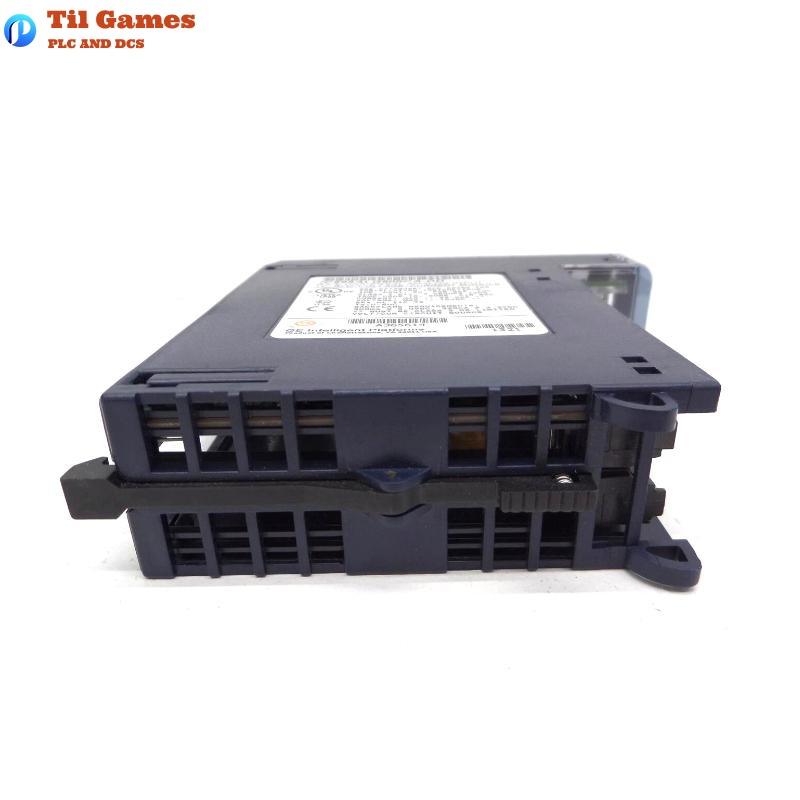

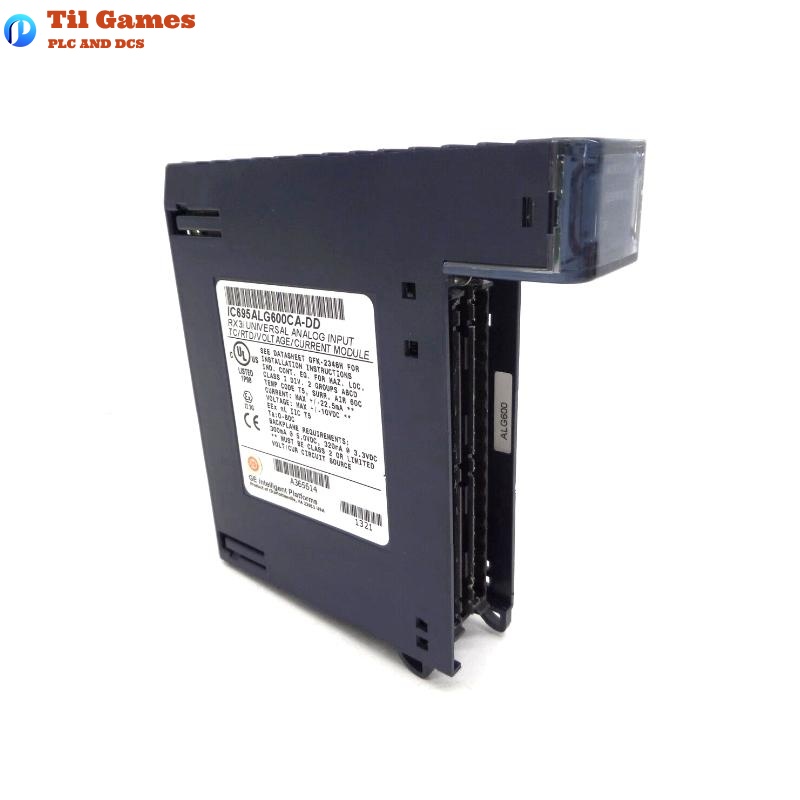

| Module Type | Universal Analog Input Module |
| Number of Input Channels | 8 |
| Input Types | Voltage, Current, Thermocouple, RTD, Resistance |
| Thermocouple Types Supported | B, C, E, J, K, N, R, S, T |
| RTD Types Supported | PT385/3916, NiFe 518, CU 426, N 618/672 |
| Resistance Ranges | 0–250 / 500 / 1000 / 2000 / 3000 / 4000 Ohms |
| Current Ranges | 0–20 mA, 4–20 mA, ±20 mA |
| Voltage Ranges | ±50 mV, ±150 mV, 0–5 V, 1–5 V, 0–10 V, ±10 V |
| Input Resolution | 11 to 16 bits (depending on configuration and filter) |
| A/D Filter Frequencies | 8, 12, 16, 40, 200, 1000 Hz |
| Power Dissipation | Max 5.4 W |
| Isolation | 250 VAC continuous / 1500 VAC for 60 seconds (group and backplane) |
| Calibration Interval | 12 months (typical) |
| RTD Cable Impedance | Max 25 Ohms |
| RTD Wire Length | Max 1000 ft |
| Input Impedance | >1M Ohm (for voltage/RTD/TC), 249 Ohms ±1% for current |
| Operating Temperature | Standard ambient range; refer to accuracy table in manual |
| Module Dimensions (W x H x D) | 34 × 140 × 145 mm |
| Module Weight | 0.227 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of sensors can the IC695ALG600 module read?
A1: It supports voltage, current, resistance, RTDs, and thermocouples including types B, C, E, J, K, N, R, S, and T.
Q2: Can each input channel be configured independently?
A2: Yes, each of the 8 channels can be independently configured for different input types via the software.
Q3: Is the module hot-swappable?
A3: No, it is not hot-swappable. Power should be turned off before replacing the module.
Q4: Does this module support cold junction compensation (CJC)?
A4: Yes, it includes two channels for CJC sensors to enhance thermocouple measurement accuracy.
Q5: Can I use this module in an RX3i remote or expansion rack?
A5: No, the IC695ALG600 must be installed in a Universal Backplane only.
Q6: What is the maximum allowable input voltage and current?
A6: The maximum continuous overvoltage is ±14.5 VDC, and overcurrent is 28 mA.
Q7: What is the default resolution and update time?
A7: At 1000 Hz filter setting, resolution is 11 bits with 10 ms channel update time; at 8 Hz, it’s 16 bits with 127 ms update.
Q8: How is isolation handled within the module?
A8: The 8 channels are divided into two groups of 4, each group isolated from the other, chassis, and backplane.
