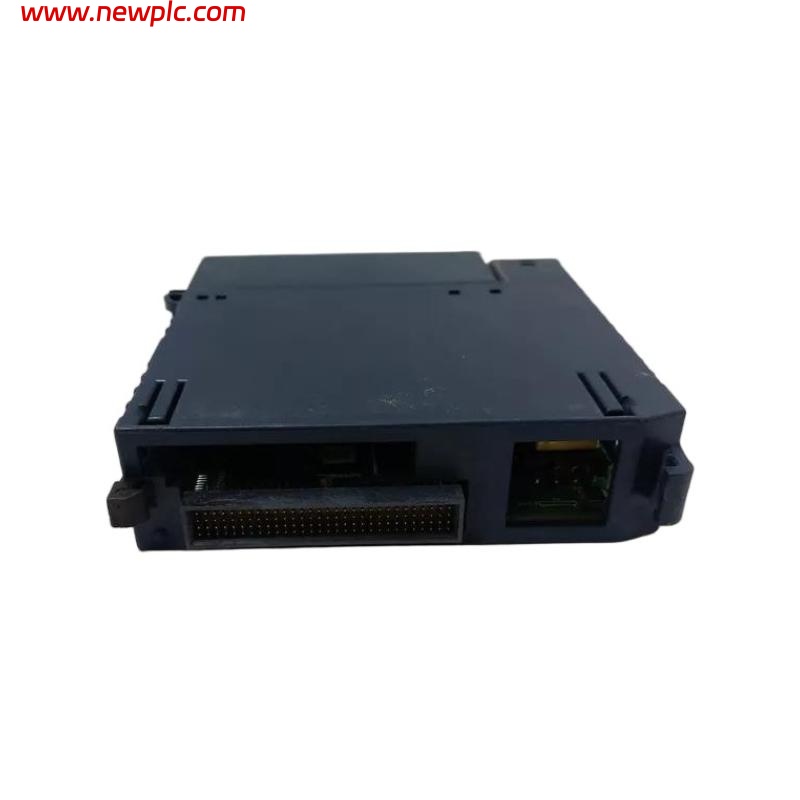

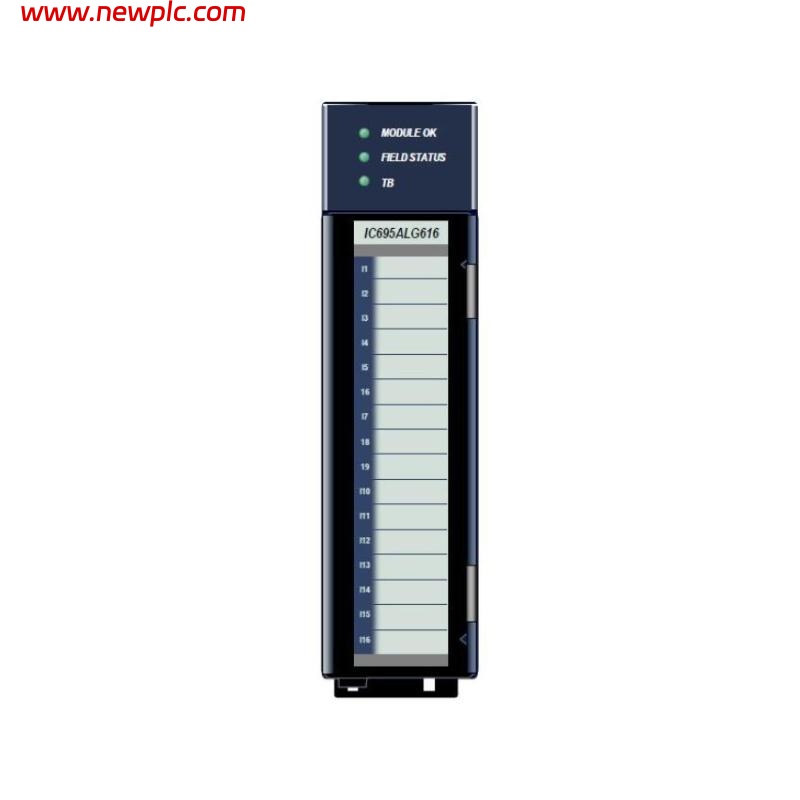

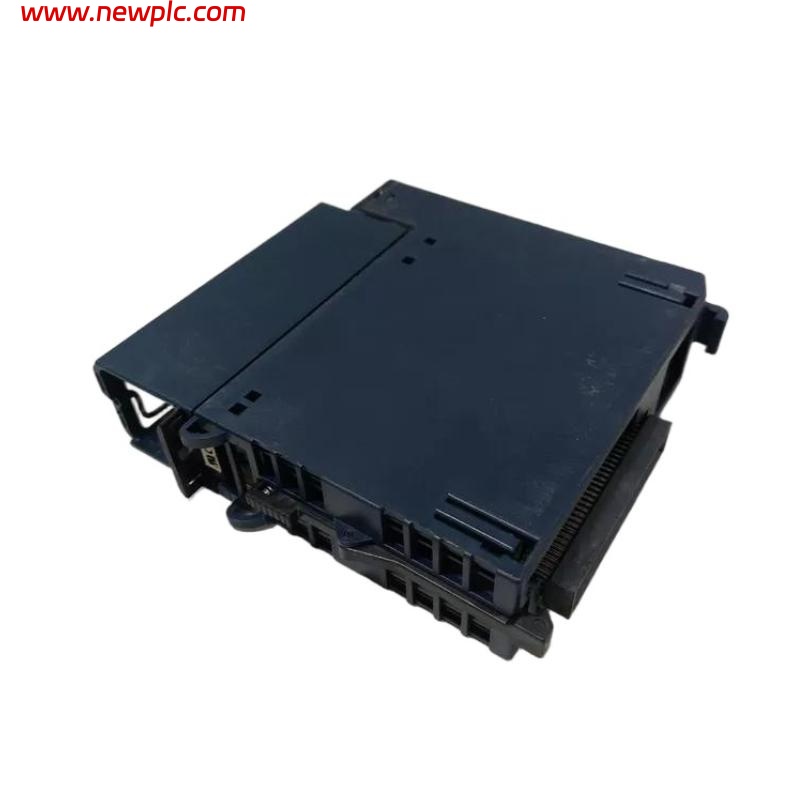

GE IC695ALG616 Analog Input Module

FAQ

Q1. What is the IC695ALG616 used for?
It is an analog input module designed to acquire voltage and current signals from field instruments.

Q2. How many analog input channels are available?
The module provides sixteen independent analog input channels.

Q3. Which input signal types are supported?
It supports ±10 V voltage signals and 4–20 mA current signals.

Q4. What resolution does the module provide?
The IC695ALG616 offers 16-bit resolution for high-precision measurements.

Q5. Is electrical isolation included?
Yes, channel-to-backplane isolation is provided to protect the PLC system.

Q6. Which PLC platform is this module compatible with?
It is designed for use with the GE RX3i PLC platform.

Q7. What are the physical dimensions and weight of the module?
The module measures approximately 10.5 × 12.8 × 4.0 cm and weighs about 0.34 kg.

Q8. Does the module require external power?
Field devices may require external power; the module itself is powered from the PLC backplane.

Q9. Can the IC695ALG616 be hot-swapped?
No, system power should be turned off before installing or removing the module.

Q10. Is the IC695ALG616 still available?
Yes, it remains an active RX3i module and is available through authorized distributors.
