Technical Specifications
| Parameter | Description |
|---|---|

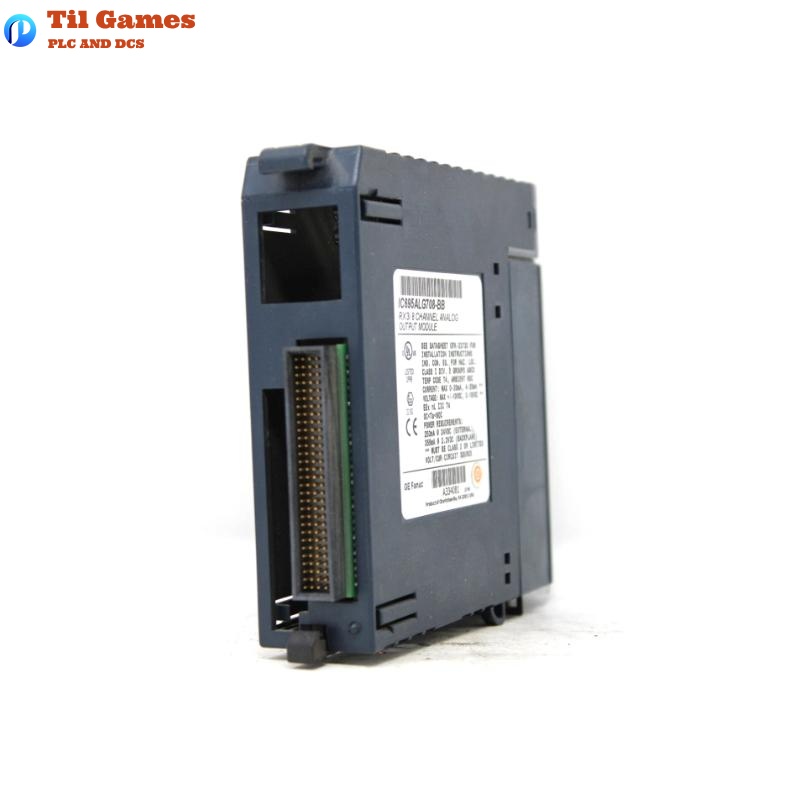

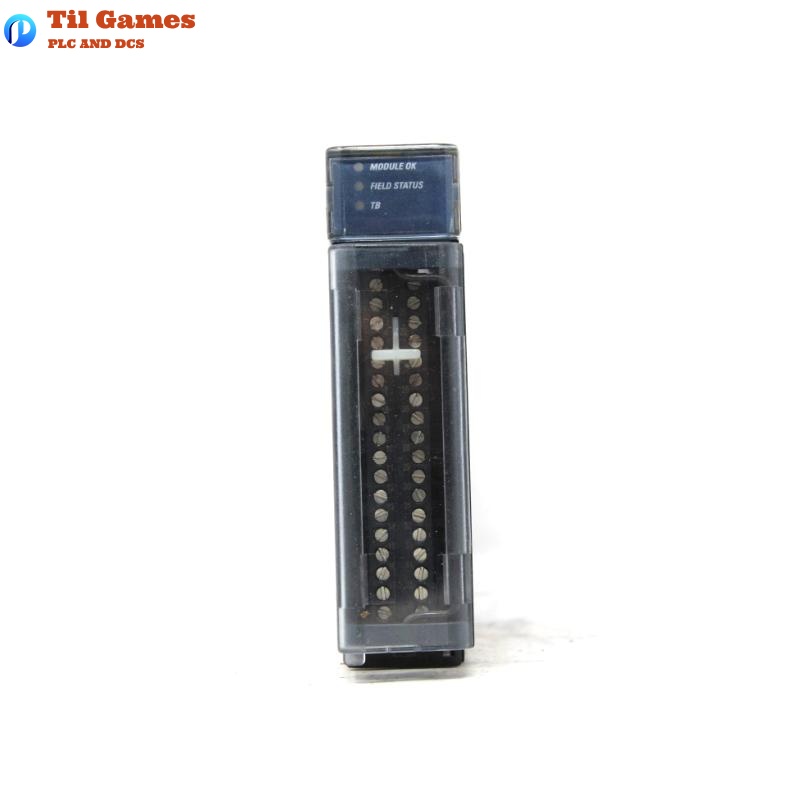

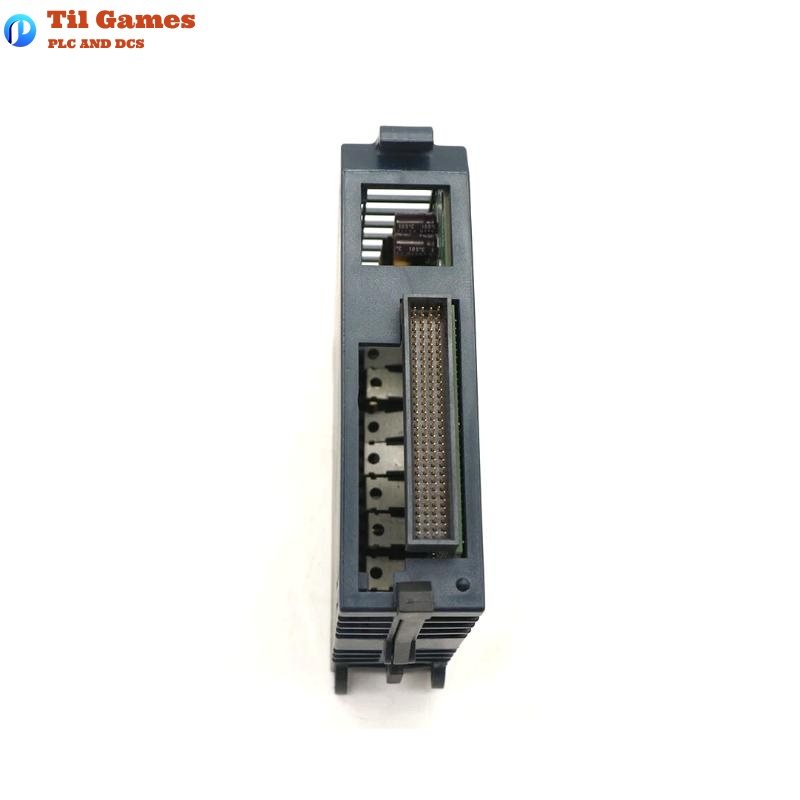

| Module Name | IC695ALG708 Non-Isolated Analog Voltage/Current Output Module |
| Module Type | PACSystems RX3i Analog Output Module |
| Output Channels | 8 channels, configurable for voltage or current |
| Output Ranges | Current: 0–20 mA, 4–20 mA Voltage: ±10 V, 0–10 V |
| Resolution | ±10V: 15.9 bits; 0–10V: 14.9 bits; 0–20mA: 15.9 bits; 4–20mA: 15.6 bits |
| Data Format | Configurable as 32-bit IEEE floating point or 16-bit integer |
| Backplane Power Requirement | Max 375 mA @ 3.3V DC |
| External Power Supply | Voltage: +19.2 to +30 VDC; Current: Max 250 mA (@24V) |
| Power Dissipation | Max 7.25 W (@24V) |
| Update Rate | Approx. 8 ms (all 8 channels enabled) |
| Load Resistance (Current) | Max 850 Ω @ 20V |
| Output Load Reactance | Current: max 10µH; Voltage: max 1µF |
| Output Settling Time | 2 ms (0 to 95%) |
| Overvoltage Protection | Current output only: -30V (60 sec), +30V (1 hour) |
| Accuracy | ±0.15% FS at 25°C, ±0.30% FS at 60°C; ±1% FS under strong RF |
| Output Drift | Voltage: 20ppm/°C; Current: 35ppm/°C |
| Isolation | 2550 VDC for 1 second (Field to Backplane) |
| Max Compliance Voltage | Vuser – 3V to Vuser |
| Dimensions | 34 × 140 × 145 mm |
| Weight | 0.25 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many output channels does the IC695ALG708 support?
A1: It supports 8 analog output channels, each configurable for voltage or current.
Q2: What output signal ranges are supported?
A2: It supports voltage output (±10V, 0–10V) and current output (0–20mA, 4–20mA).
Q3: Is there electrical isolation between channels?
A3: No, the IC695ALG708 is a non-isolated module.
Q4: Can the module be configured via software?
A4: Yes, it is fully software-configurable with no jumper settings required.
Q5: Does the module require an external power supply?
A5: Yes, it requires a +24VDC external power source and cannot be powered through the backplane.
Q6: What is the output accuracy of the module?
A6: ±0.15% FS at 25°C, ±0.30% FS at 60°C.
Q7: Does the module support alarm functions?
A7: Yes, it supports high, low, high-high, and low-low alarm settings per channel.
Q8: How does the module behave under fault conditions?
A8: It can be configured to hold the last output state or default to a pre-defined value during faults.
