Technical Specifications
| Parameter | Description |
|---|---|
| Model | IC695CHS016 |

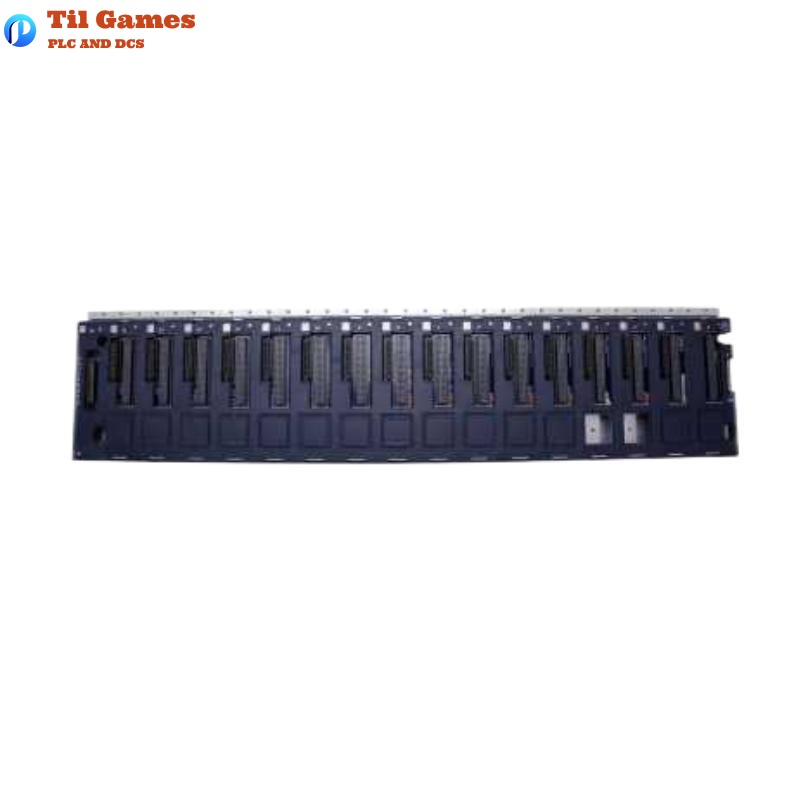

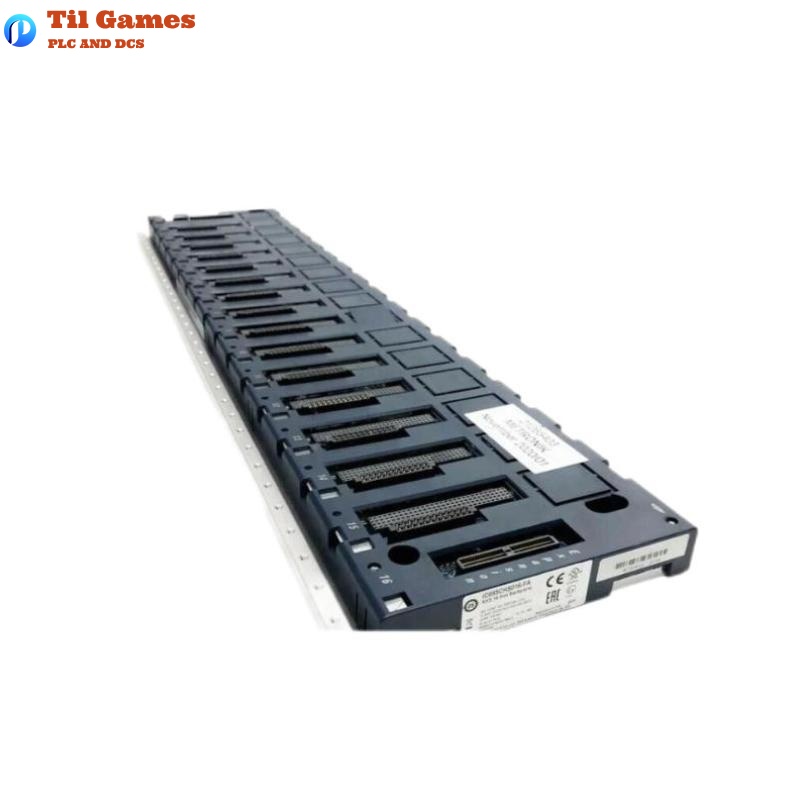

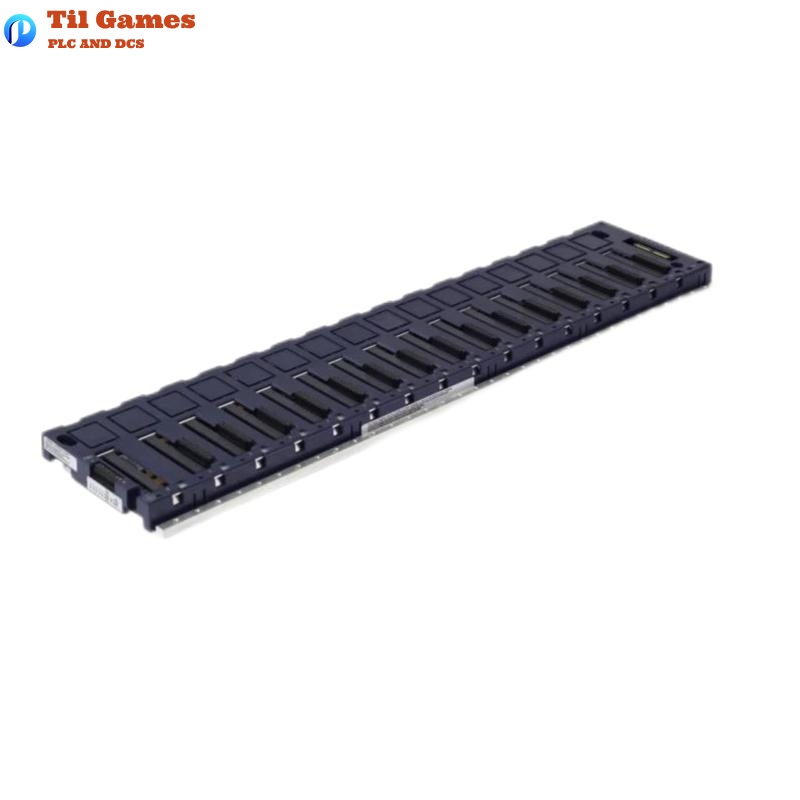

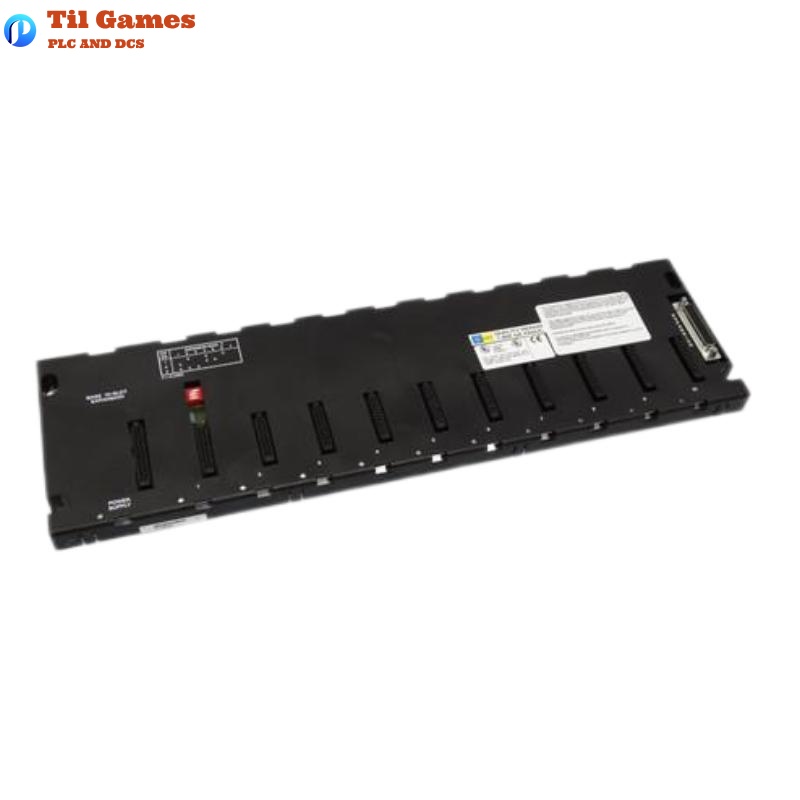

| Product Type | PACSystems RX3i 16-slot Universal Backplane |
| Supported Module Types | PCI bus (IC695), Serial bus (IC694), and 90-30 modules |
| Slot Count | 16 slots including expansion slot |
| Power Slot Restriction | Slot 0 is dedicated to IC695 power supply only |
| Expansion Slot | Slot 16 dedicated for IC695LRE001 serial expansion module |
| Power Input Terminals | TB1 terminals 7 (+24VDC input), 8 (Ground) |
| Grounding Bar | Integrated grounding bar with M3 screw holes |
| Mounting Orientation | Must be installed horizontally for airflow and reliability |
| Wire Size Supported | 14 to 22 AWG |
| Recommended Enclosure | Minimum NEMA Type 1 or IP20 rated enclosure |
| Cooling Clearance | Minimum 102 mm on all sides |
| Dimensions (H × W × D) | 141.48 × 601.98 × 147.32 mm |
| Weight | 2.06 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Is the IC695CHS016 compatible with older Series 90-30 modules?
A1: Yes, it supports Series 90-30 I/O and option modules.
Q2: Can only power supplies be installed in slot 0?
A2: Correct. Slot 0 is reserved for IC695 power supply modules only.
Q3: Can the CPU be installed in any slot?
A3: Yes, except the expansion slot. Ensure that the configured slot matches the actual installation.
Q4: Does the backplane support hot-swapping?
A4: Yes, I/O and option modules can be hot-swapped following proper procedures.
Q5: Does the IC695CHS016 provide +24VDC output?
A5: No, external isolated +24VDC must be supplied through TB1 terminal 7.
Q6: Can the expansion slot accommodate double-width modules?
A6: No, the expansion slot only supports the IC695LRE001 serial expansion module.
Q7: Are there specific mounting orientation requirements?
A7: Yes, it must be mounted horizontally to ensure proper airflow and reliability.
Q8: Is grounding supported by the backplane?
A8: Yes, a grounding bar is integrated for shield ground connections using M3 screws.
