Technical Specifications
| Parameter | Specification |
|---|---|

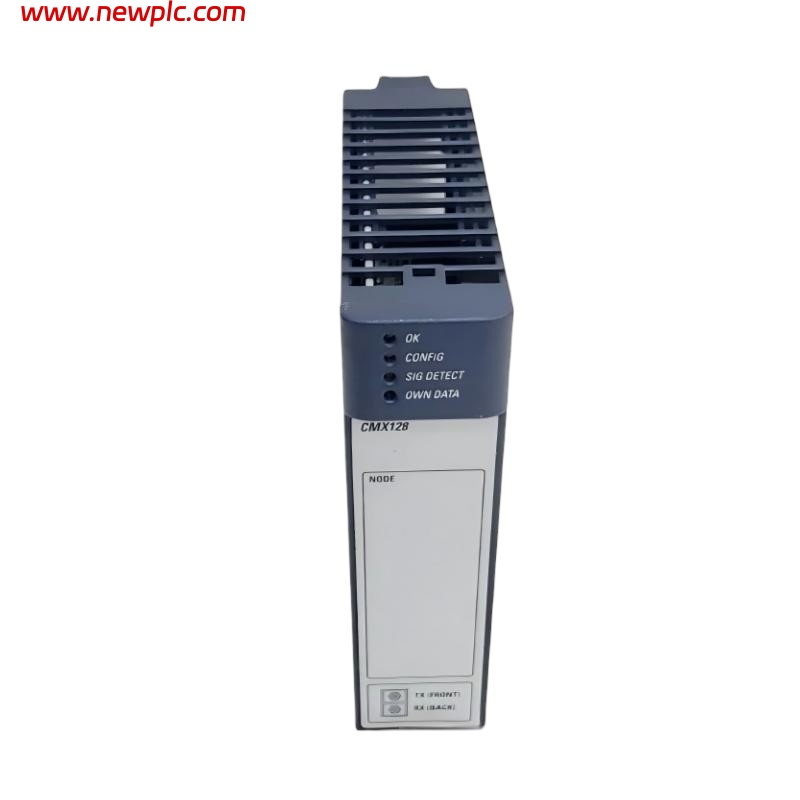

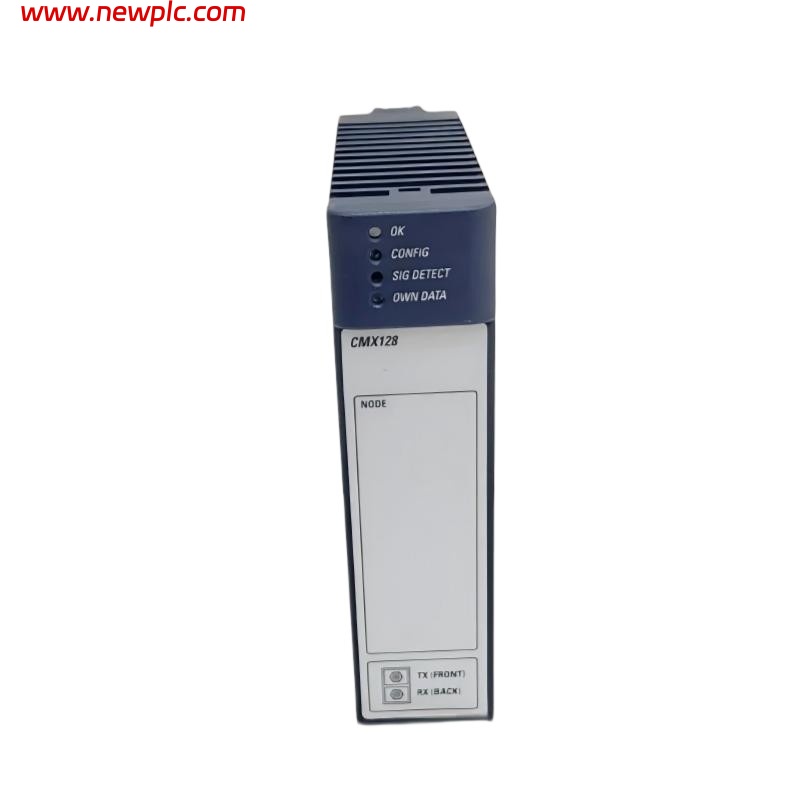

| Model | IC695CMX128 |
| Product Type | RX3i Ethernet Communication Module |
| PLC Series Compatibility | PACSystems RX3i |
| Communication Protocol | Ethernet TCP/IP |
| Ethernet Ports | 2 × RJ45 (10/100 Mbps) |
| Network Topology | Star / Linear |
| IP Addressing | Static IP, configurable |
| Supported Functions | Data exchange, PLC networking, diagnostics |
| Backplane Interface | RX3i high-speed backplane |
| Power Consumption | Approx. 400 mA @ 3.3 V DC |
| Indicators | Link, Activity, Module OK LEDs |
| Operating Temperature | 0 °C to 60 °C |
| Operating Humidity | 5 % to 95 % non-condensing |
| Installation Method | RX3i backplane slot |
| Dimensions (Approx.) | 132 mm (H) × 56 mm (W) × 140 mm (D) |
| Weight (Approx.) | 0.35 kg |
FAQ
FAQ
Q1: What is IC695CMX128 used for?
It provides Ethernet communication for RX3i PLC systems.
Q2: How many Ethernet ports does the module have?
It has two integrated 10/100 Mbps Ethernet ports.
Q3: Which PLC family supports IC695CMX128?
PACSystems RX3i.
Q4: What protocols are supported?
Standard Ethernet TCP/IP communication.
Q5: Can the module be used for PLC-to-PLC communication?
Yes, it supports data exchange between PLCs over Ethernet.
Q6: Does the module require an external power supply?
No, it is powered directly from the RX3i backplane.
Q7: Where is IC695CMX128 installed?
It installs into a standard RX3i backplane slot.
Q8: What are the approximate size and weight of the module?
Approximately 132 × 56 × 140 mm, weighing about 0.35 kg.
