Technical Specifications
| Parameter | Specification |
|---|---|

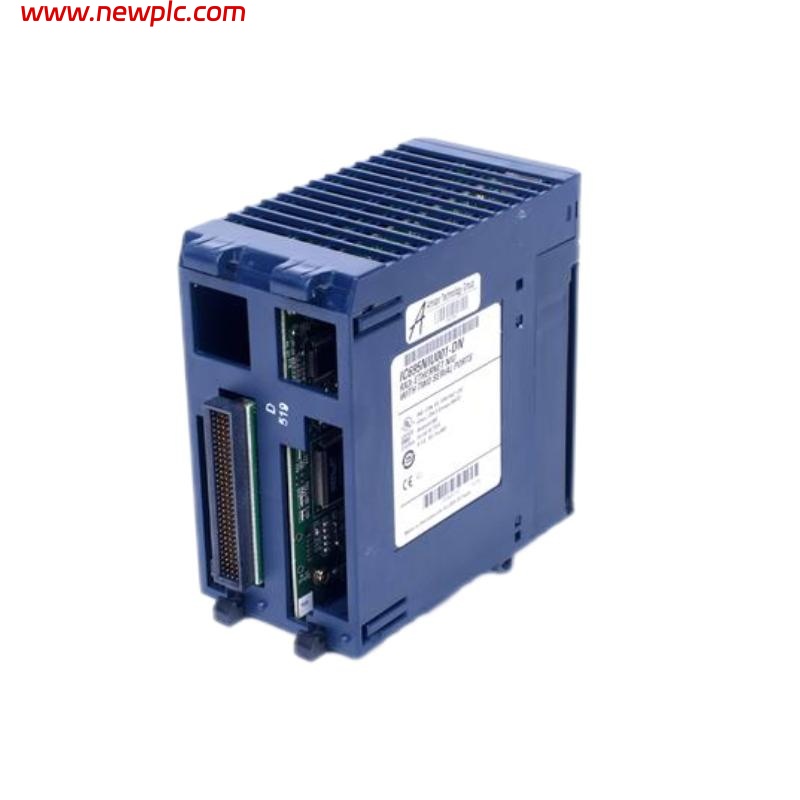

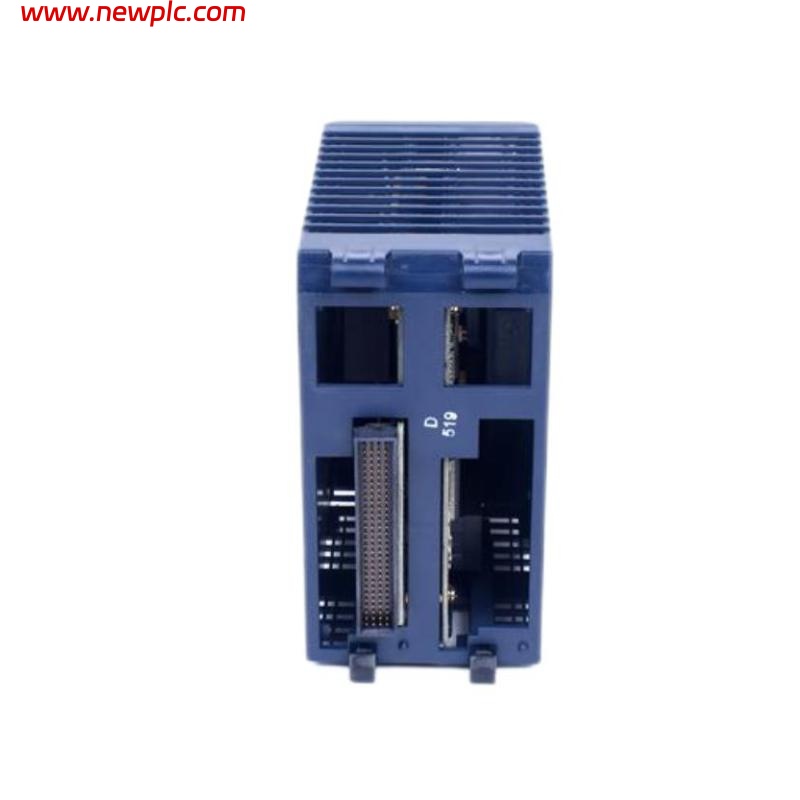

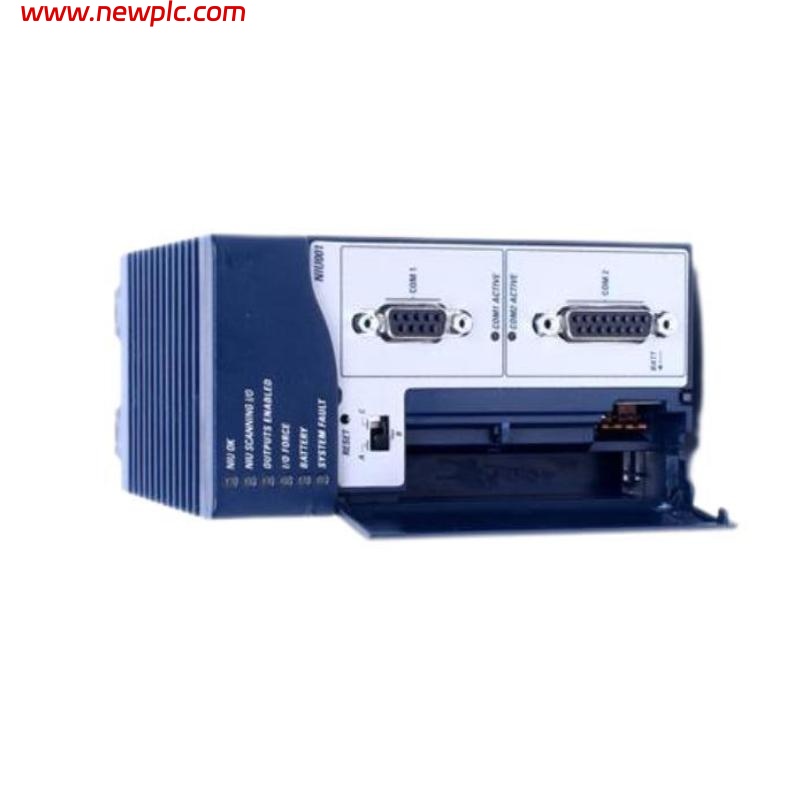

| Model | IC695NKT001 |
| Product Type | Ethernet Remote I/O Expansion Kit |
| PLC Series Compatibility | PACSystems RX3i (also supports Series 90‑30) |
| Includes | Ethernet Network Interface Unit (NIU001) + Ethernet Module (ETM001) |
| Ethernet Port | 1 × Ethernet 10/100/1000 Mbps |
| Network Protocols | Ethernet/IP (industrial protocol) |
| Serial Ports | RS‑232 and RS‑485 on NIU unit |
| Data Protocol Support | SNP, Modbus (Master/Slave), Serial I/O, EGD depending on configuration |
| Maximum Remote I/O Modules | Up to ~64 remote I/O expansion modules |
| Local Logic Memory | ~240 KB local logic memory |
| Flash Memory | ~10 MB flash storage |
| Power Consumption | ~150 mA @ 5 V DC backplane power |
| Backplane Slots Required | 3 (2 NIU slots + 1 Ethernet module slot) |
| Operating Temperature | 0 °C to 60 °C |
| Mounting | Installed in RX3i backplane with appropriate baseplane chassis |
| Dimensions (Approx.) | 200 mm × 150 mm × 20 mm (module assembly) |
| Weight (Approx.) | ~1.8 kg |
FAQ
FAQ
Q1: What is IC695NKT001 used for?
It provides Ethernet remote I/O expansion for PACSystems RX3i PLC systems.
Q2: Which PLC series is IC695NKT001 compatible with?
It is designed for PACSystems RX3i and can also work with GE Series 90‑30 configurations.
Q3: What network protocols are supported?
It supports industrial Ethernet/IP and common PLC protocols such as SNP and Modbus.
Q4: How many remote I/O modules can be expanded?
It can support up to approximately 64 remote I/O modules.
Q5: What ports are available on this kit?
It includes one Ethernet port and serial ports (RS‑232/RS‑485) on the NIU unit.
Q6: Does IC695NKT001 include local logic memory?
Yes, it typically includes about 240 KB of local logic memory.
Q7: How many backplane slots are required?
Installation typically uses 3 slots: two for the NIU and one for the Ethernet module.
Q8: What are the approximate size and weight?
Roughly 200 × 150 × 20 mm and about 1.8 kg.
