Technical Specifications
| Parameter | Specification |
|---|---|

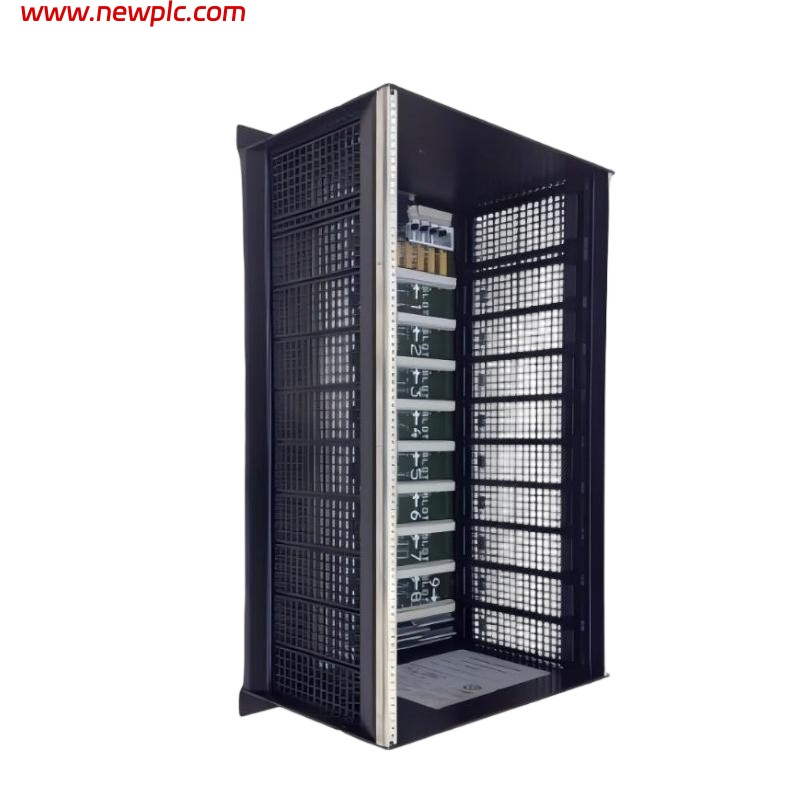

| Model | IC697CHS771 |
| Product Type | Redundant Series 90‑70 PLC Rack |
| Compatible PLC Series | GE Fanuc Series 90‑70 |
| Rack Slots | 6 double‑wide module slots per system (supports two systems) |
| Systems Supported | Dual (two separate PLC systems) |
| Backplane Bus Current Load | Approx. 0.5 A |
| Compatible Power Supplies | 120/240 V AC, 125 V DC, 24 V/DC, 48 V/DC |
| I/O Expansion Cable Max Length | Up to ~50 ft between modules |
| Mounting Type | Front‑mount rack design |
| Operating Temperature | Typical industrial range (~0 °C to 60 °C) |
| Construction | Industrial rack enclosure for Series 90‑70 modules |
| Dimensions (Approx.) | 283 mm × 483 mm × 190 mm (11.15″ × 19.00″ × 7.5″) |
| Weight (Approx.) | ~0.5 kg (per supplier listing) |
FAQ
FAQ
Q1: What is IC697CHS771 used for?
It is a redundant PLC rack/chassis that houses GE Fanuc Series 90‑70 CPU and I/O modules.
Q2: How many systems can this rack support?
It supports two separate PLC systems in one rack assembly.
Q3: How many module slots are available?
There are 6 double‑wide slots for CPU and I/O modules per system.
Q4: What power supplies can be used with this chassis?
Compatible with AC (120/240 V) and DC (125 V, 24/48 V) power supplies.
Q5: What is the typical current load on the backplane bus?
Approximately 0.5 A from the backplane bus.
Q6: Can I use this rack in a redundant PLC configuration?
Yes — the chassis is designed to support redundant systems.
Q7: What are the approximate dimensions of the IC697CHS771 rack?
Roughly 283 mm × 483 mm × 190 mm (11.15″ × 19.00″ × 7.5″).
Q8: What environment is this rack designed for?
Industrial conditions, typically 0 °C to 60 °C operation.
