Technical Specifications
| Parameter | Specification |
|---|---|

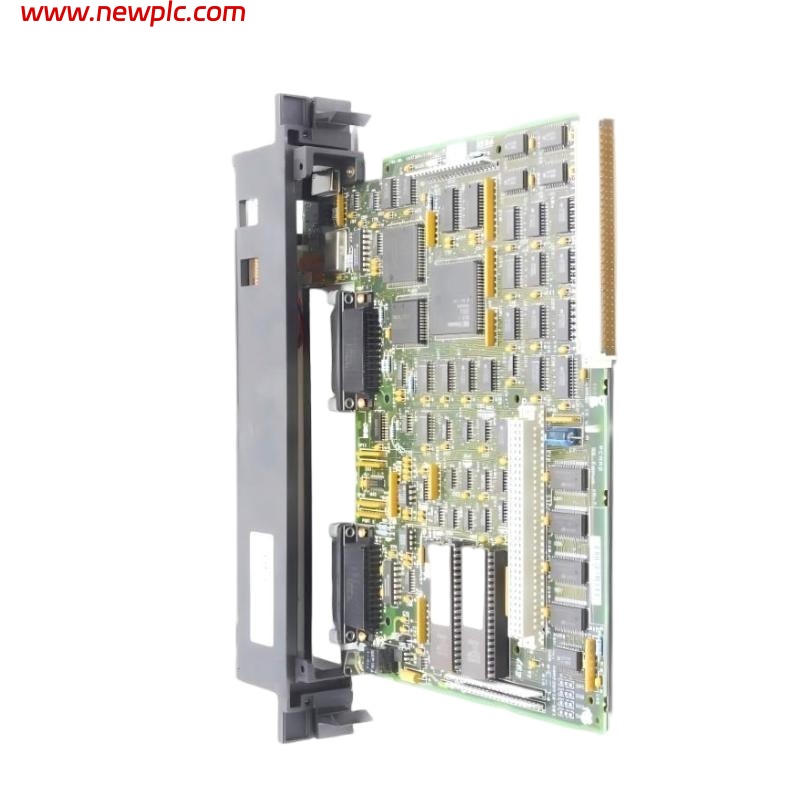

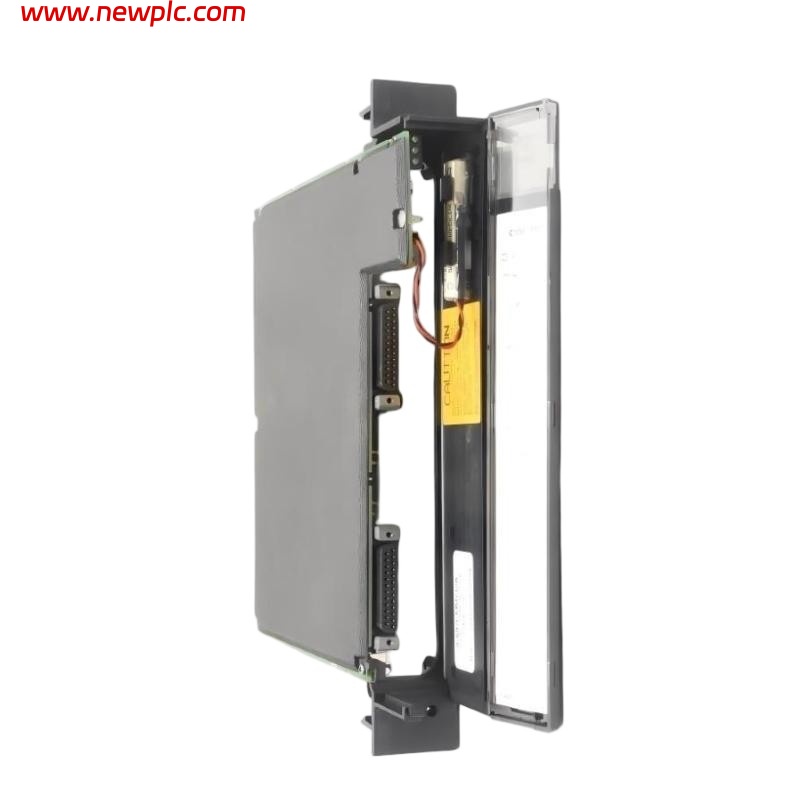

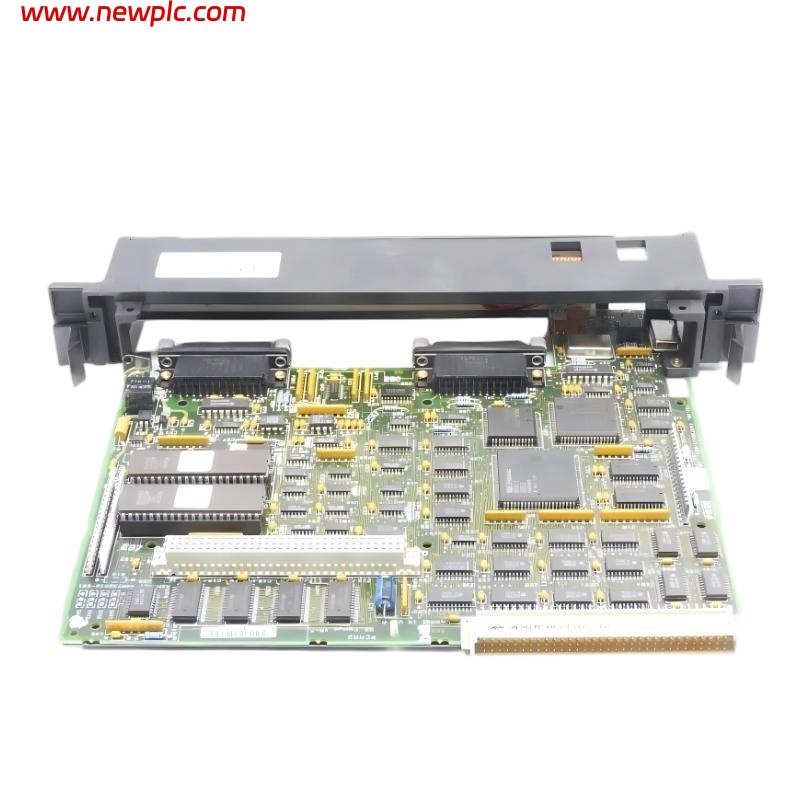

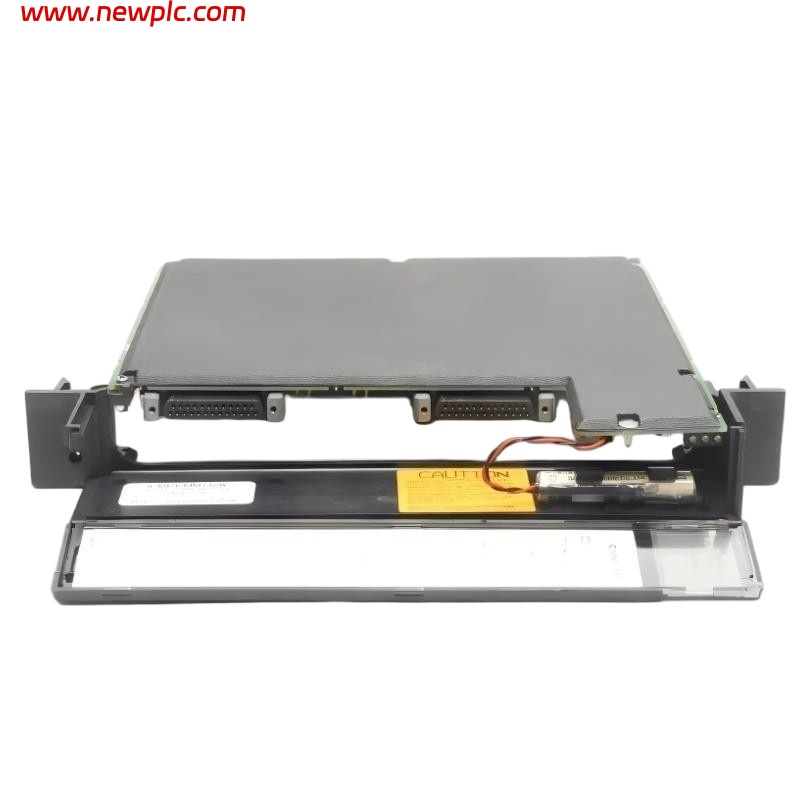

| Model | IC697CPU788 |
| Product Type | Central Processing Unit (CPU) Module for GE Fanuc Series 90-70 PLC |
| Processor | Intel Pentium, 133 MHz |
| Execution Speed | Approx. 0.08 µs per Boolean instruction |
| User Memory | 16 MB battery-backed RAM |
| I/O Capacity | Up to 12,000 discrete I/O points and up to 8,000 analog I/O points |
| Communication Ports | One RS-485 serial port (SNP); supports Ethernet via optional modules |
| Redundancy Support | Supports hot standby CPU redundancy |
| Battery Backup | Lithium battery for RAM and real-time clock retention |
| Power Requirement | 5 V DC supplied from backplane |
| Current Consumption | Approx. 2.5 A @ 5 V DC |
| Operating Temperature | 0 °C to +60 °C |
| Mounting | Single CPU slot in Series 90-70 rack |
| Dimensions | Approx. 3.5 cm × 13 cm × 13.5 cm |
| Weight | Approx. 0.45 kg |
FAQ
FAQ
Q1: What is the IC697CPU788 used for?
It serves as a high-performance CPU for Series 90-70 PLC systems, executing complex control logic and managing large-scale I/O operations.
Q2: What processor does this module use?
It is equipped with a 133 MHz Intel Pentium processor for advanced processing capability.
Q3: How much memory does the IC697CPU788 provide?
The module includes 16 MB of battery-backed user memory.
Q4: What is the maximum I/O capacity supported?
It supports up to 12,000 discrete I/O points and up to 8,000 analog I/O points.
Q5: Does it support system redundancy?
Yes, it supports hot standby redundancy for high-availability applications.
Q6: What communication interfaces are available?
It includes an RS-485 serial port and can support Ethernet communication through optional modules.
Q7: What are the physical dimensions and weight?
The module measures approximately 3.5 cm × 13 cm × 13.5 cm and weighs about 0.45 kg.
Q8: Is memory retained during power failure?
Yes, the integrated lithium battery maintains RAM contents and the real-time clock during power interruptions.
