Technical Specifications
| Parameter | Specification |
|---|---|

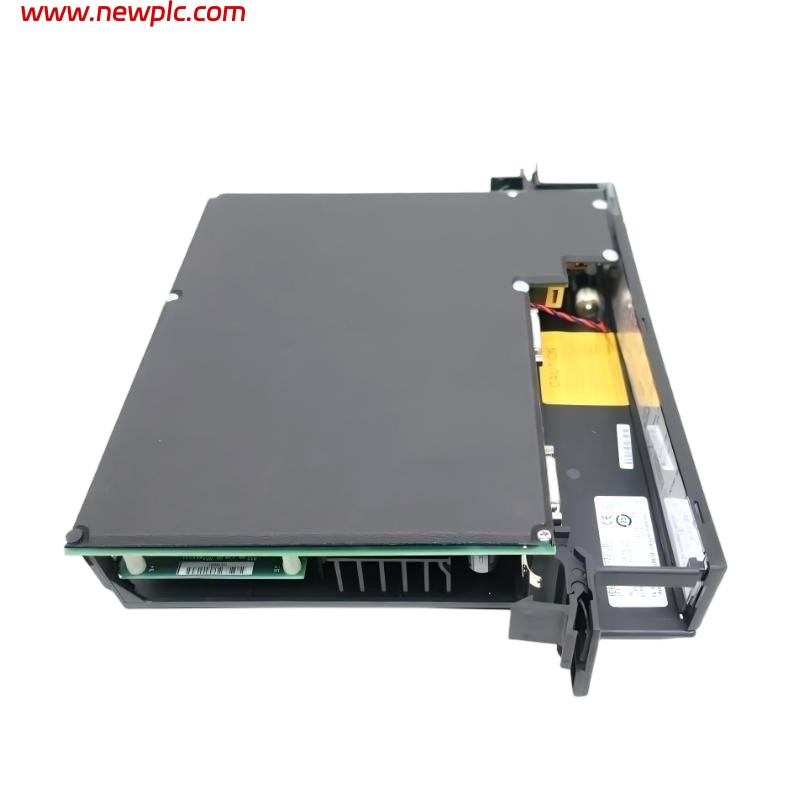

| Model | IC697MDL740 |
| Product Type | Analog Input Module for GE Fanuc Series 90-70 PLC |
| Number of Channels | 16 single-ended analog inputs |
| Input Signal Type | ±10 V DC, 0–20 mA, 4–20 mA (configurable per channel) |
| Resolution | 14-bit A/D conversion |
| Input Impedance | Voltage: 1 MΩ; Current: 250 Ω |
| Sampling Rate | 2.5 ms per channel typical |
| Accuracy | ±0.05% of full scale |
| Isolation | Channel-to-backplane isolation |
| Mounting | Fits standard I/O slot in Series 90-70 rack |
| Operating Temperature | 0 °C to +60 °C |
| Status Indicators | LEDs for module status and diagnostics |
| Dimensions | Approx. 3.5 cm × 13 cm × 13.5 cm |
| Weight | Approx. 0.38 kg |
FAQ
FAQ
Q1: What is the IC697MDL740 used for?
It is an analog input module for GE Fanuc Series 90-70 PLCs, used to read high-precision analog signals from sensors and field devices.
Q2: How many input channels does it have?
The module provides 16 single-ended analog input channels.
Q3: What types of input signals are supported?
It supports ±10 V DC, 0–20 mA, and 4–20 mA signals, configurable per channel.
Q4: What is the resolution of the module?
It provides 14-bit analog-to-digital conversion for high-accuracy readings.
Q5: What is the typical sampling rate?
The sampling rate is approximately 2.5 milliseconds per channel.
Q6: Does the module provide isolation?
Yes, each channel is isolated from the backplane to ensure safe operation.
Q7: What are the physical dimensions and weight?
The module measures approximately 3.5 cm × 13 cm × 13.5 cm and weighs about 0.38 kg.
Q8: Are there status indicators on the module?
Yes, LEDs indicate module status and diagnostic conditions.
