Technical Specifications
| Parameter | Specification |
|---|---|

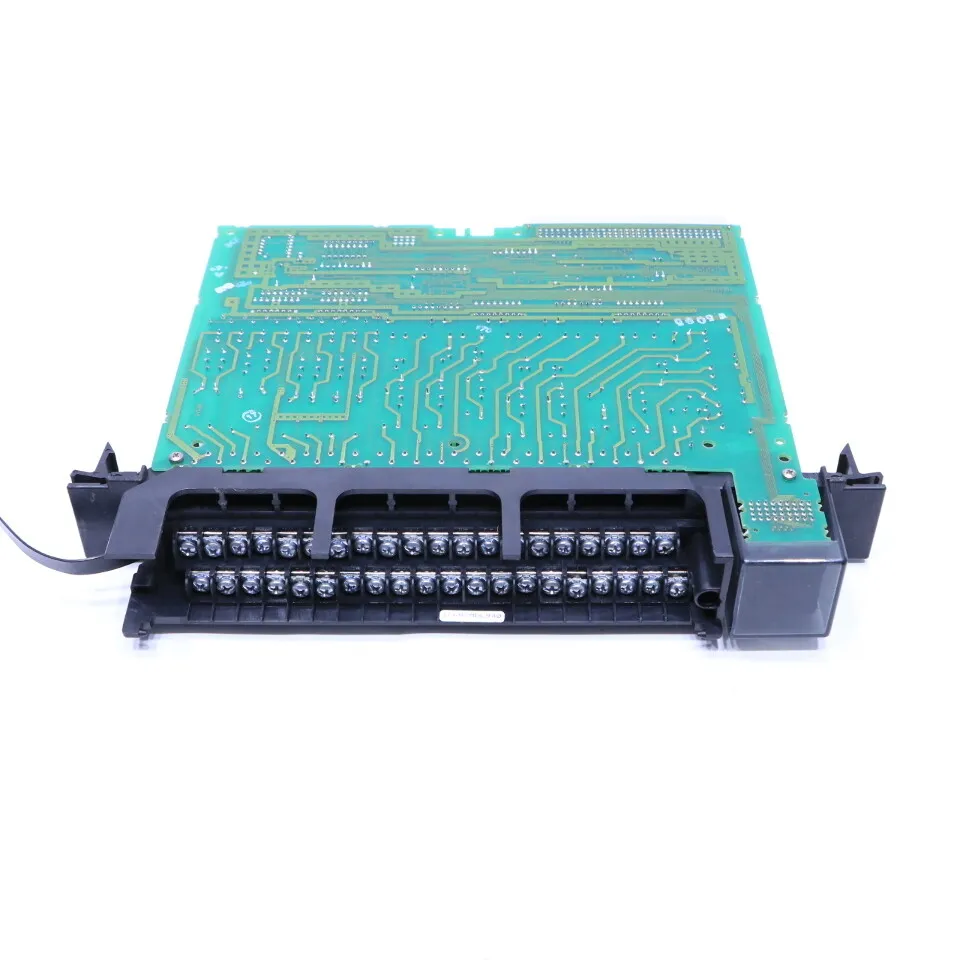

| Model | IC697MDL940 |
| Product Type | Discrete Output Module for GE Fanuc Series 90-70 PLC |
| Number of Points | 16 discrete outputs |
| Output Voltage | 24 V DC nominal |
| Output Type | Positive logic (sourcing) transistor outputs |
| Output Current | Up to 2 A per point (with group limits) |
| Voltage Range | 18–30 V DC |
| Response Time | Typical < 1 ms |
| Isolation | Group-to-backplane isolation |
| Protection Features | Short-circuit and overload protection |
| Mounting | Fits standard I/O slot in Series 90-70 rack |
| Operating Temperature | 0 °C to +60 °C |
| Status Indicators | Individual LEDs for each output point |
| Dimensions | Approx. 3.5 cm × 13 cm × 13.5 cm |
| Weight | Approx. 0.30 kg |
FAQ
FAQ
Q1: What is the IC697MDL940 used for?
It is a 24 V DC discrete output module for controlling field devices such as relays, solenoids, and indicator lamps in Series 90-70 PLC systems.
Q2: How many output points does it provide?
The module provides 16 discrete output points.
Q3: What type of output does it use?
It uses positive logic (sourcing) transistor outputs.
Q4: What is the maximum output current per point?
Each point can deliver up to 2 A, subject to total group limits.
Q5: What is the supported voltage range?
The module operates within an 18–30 V DC range.
Q6: Does the module include protection features?
Yes, it includes short-circuit and overload protection.
Q7: What are the physical dimensions and weight?
The module measures approximately 3.5 cm × 13 cm × 13.5 cm and weighs about 0.30 kg.
Q8: Are there status indicators for each output?
Yes, each output point has an individual LED status indicator.
