Technical Specifications
| Parameter | Specification |
|---|---|
| Model | IC697VAL328 |

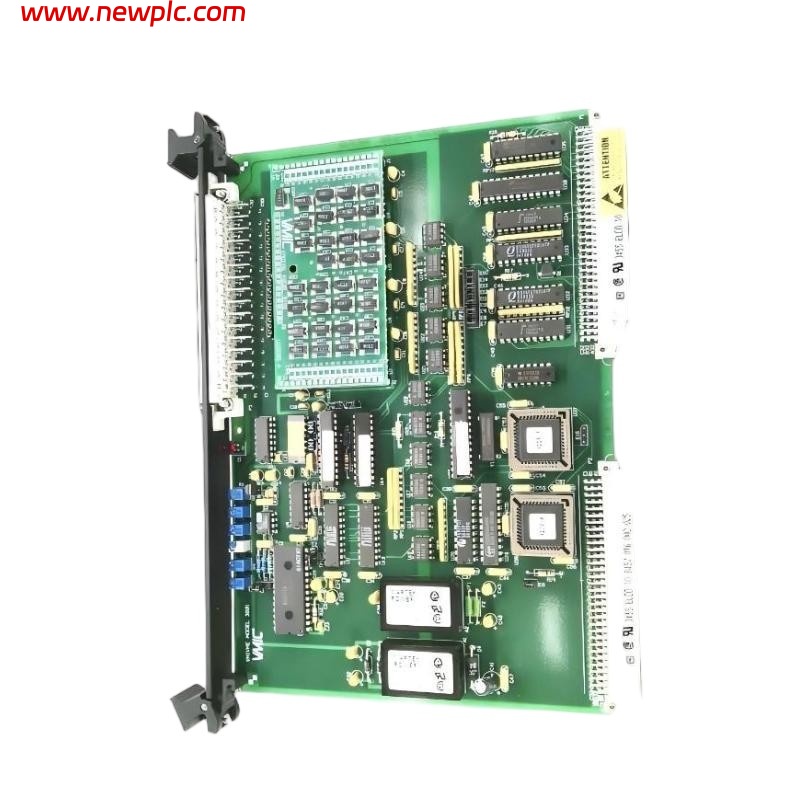

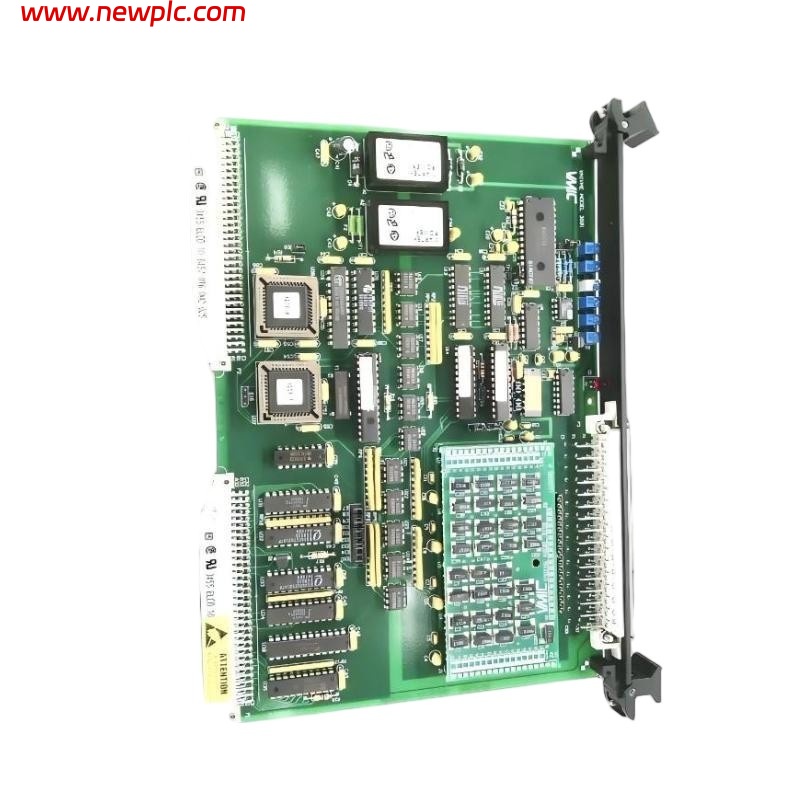

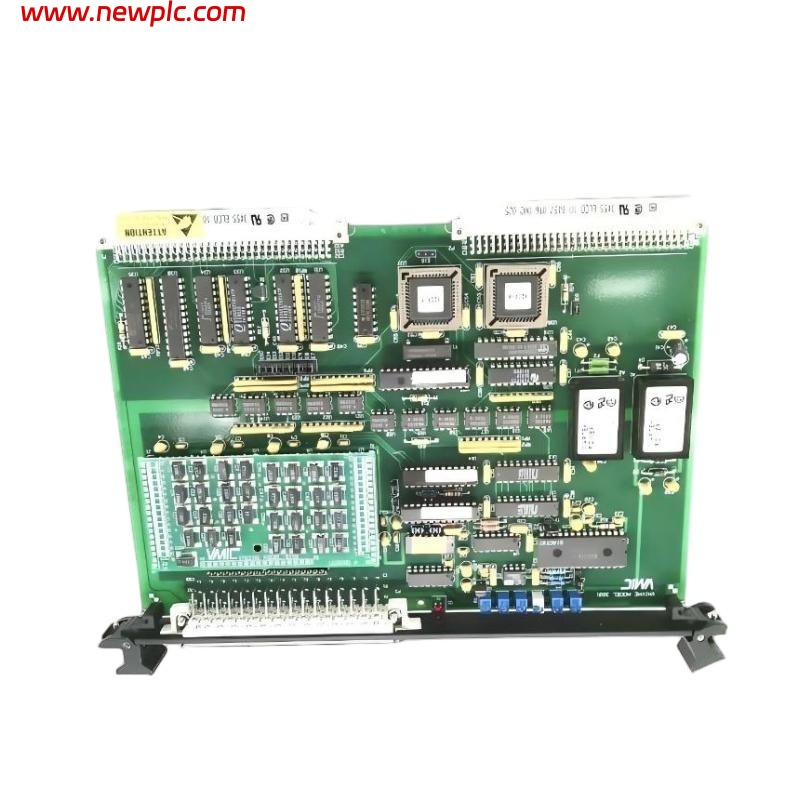

| Product Type | Analog Input Module for GE Fanuc Series 90-70 PLC |
| Number of Channels | 8 differential analog inputs |
| Input Signal Type | Voltage inputs |
| Input Ranges | ±10 V DC, 0–10 V DC (selectable per module configuration) |
| Resolution | 16-bit A/D conversion |
| Input Impedance | ≥ 1 MΩ |
| Update Rate | 5 ms typical |
| Accuracy | ±0.1% of full scale |
| Isolation | Channel-to-backplane isolation |
| Mounting | Fits standard I/O slot in Series 90-70 rack |
| Operating Temperature | 0 °C to +60 °C |
| Status Indicators | LEDs for module status and diagnostics |
| Dimensions | Approx. 3.5 cm × 13 cm × 13.5 cm |
| Weight | Approx. 0.42 kg |
FAQ
FAQ
Q1: What is the IC697VAL328 used for?
It is an analog input module designed to acquire voltage signals from field instruments in Series 90-70 PLC systems.
Q2: How many input channels are available?
The module provides 8 differential voltage input channels.
Q3: What input ranges does it support?
It supports ±10 V DC and 0–10 V DC input ranges.
Q4: What is the resolution of the module?
It features 16-bit analog-to-digital conversion for precise signal measurement.
Q5: Does the module provide electrical isolation?
Yes, it includes channel-to-backplane isolation for improved protection and noise immunity.
Q6: What is the typical update rate?
The typical update time is approximately 5 milliseconds.
Q7: What are the physical dimensions and weight?
The module measures approximately 3.5 cm × 13 cm × 13.5 cm and weighs about 0.42 kg.
Q8: Are there diagnostic indicators on the module?
Yes, LEDs indicate operating status and diagnostic conditions.
