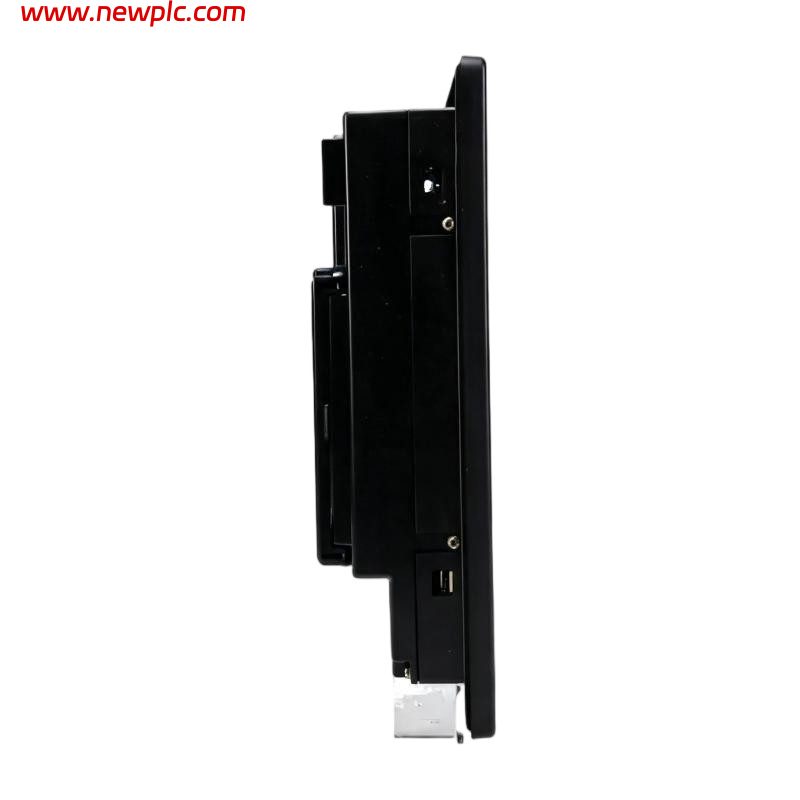

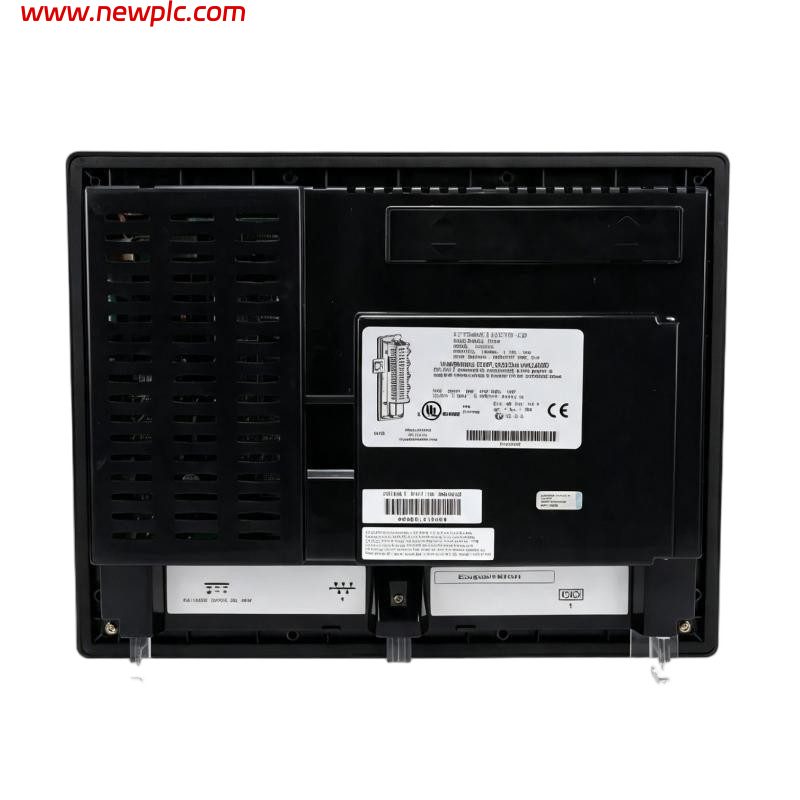

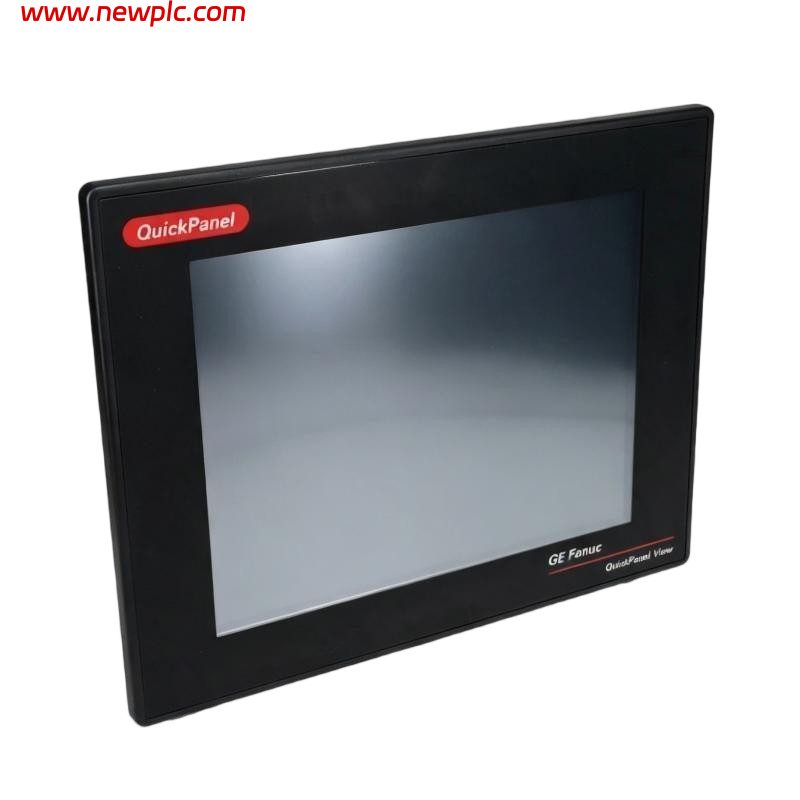

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc / Emerson |
| Product Series | QuickPanel View |
| Part Number | IC754VSI12CTD-HH |
| Revision | HH |
| Product Type | Industrial Operator Interface / HMI |
| Model | QuickPanel View ES1221R |
| Display Size | 12.1-inch |
| Display Type | Color TFT LCD |
| Resolution | 800 × 600 pixels |
| Touchscreen | Resistive touch |
| Processor | 32-bit RISC processor |
| RAM | 128 MB |
| Flash Memory | 256 MB |
| Operating System | Microsoft Windows CE |
| Power Supply | 12/24 VDC |
| Typical Power Consumption | Up to 48 W |
| Ethernet | 1 × Ethernet, 10/100 Mbps |
| Serial Interface | 1 × RS-232 / RS-485 |
| USB | 1 × USB host |
| Front Panel Protection | IP65 / NEMA-rated industrial front panel |
| Mounting | Panel mount |
| Operating Temperature | 0°C to 55°C |
| Hazardous Location Rating | Class I, Division 2, Groups A, B, C, D |
| Approx. Panel Cutout | 302 × 228 mm |
| Approx. Overall Dimensions | 312 × 238 × 68 mm* |
| Approx. Weight | 2.52 kg |
| Application | Machine control, process monitoring and industrial HMI |
FAQ
FAQ
Q1: What is GE Fanuc IC754VSI12CTD-HH?
A: It is a 12.1-inch industrial HMI/operator interface from the GE Fanuc QuickPanel View family, designed for machine operation, process monitoring and industrial control applications.
Q2: What is the display resolution of IC754VSI12CTD-HH?
A: The display resolution is 800 × 600 pixels. It uses a color TFT LCD and a resistive touchscreen.
Q3: What operating system does this HMI use?
A: The IC754VSI12CTD-HH uses Microsoft Windows CE, providing the operating environment for QuickPanel View applications.
Q4: What communication interfaces are available?
A: The unit provides 10/100 Mbps Ethernet and an RS-232/RS-485 serial interface. This allows it to communicate with PLCs and other industrial automation equipment.
Q5: What power supply does IC754VSI12CTD-HH require?
A: The HMI is designed for 12/24 VDC power. Some equipment listings specify 24 VDC, with a maximum power consumption of approximately 48 W.
Q6: What are the dimensions and weight of IC754VSI12CTD-HH?
A: The panel cutout is approximately 302 × 228 mm, while the overall unit is approximately 312 × 238 × 68 mm. One equipment listing gives a weight of approximately 2.52 kg.
Q7: What is the operating temperature range?
A: The commonly specified operating range is approximately 0°C to 55°C (32°F to 131°F). This makes it suitable for typical industrial control cabinets and machine environments.
Q8: Is IC754VSI12CTD-HH still available?
A: The IC754VSI12CTD-HH is a discontinued/legacy GE Fanuc QuickPanel View HMI. It can still be sourced through industrial automation spare-parts suppliers, refurbished-equipment dealers and existing inventory.
