Technical Specifications
| Parameter | Specification |
|---|---|

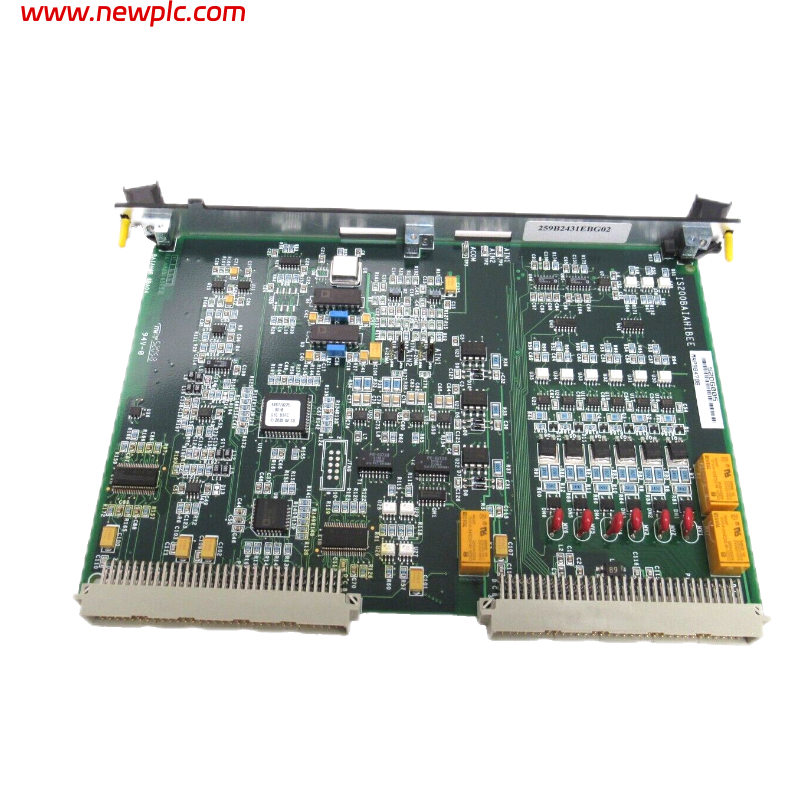

| Product Model | IS200BAIAH1BEE |
| Manufacturer | General Electric |
| Series | Mark VI Speedtronic IS200 |
| Product Type | Bridge Application Interface Board |
| Functional Description | Interface board for Mark VI turbine control systems that collects and isolates signals from terminal boards and interfaces them with DSPX and other system logic; includes RS‑232C interface and jumpers for input burden settings. |
| Functional Acronym | BAIA (Bridge Application Interface) |
| Backplane Slot | Slot 1 on Mark VI control rack (specific slot requirement) |
| LED Indicators | IMOK status LED on front faceplate |
| Connectors | Backplane card edge connectors, RS‑232C interface |
| Jumper Settings | Multiple jumpers for AIN input impedance and burden resistor settings |
| Operating Environment | Industrial turbine control cabinet environments (typical) |
| Mounting | Vertical slide into VME/control rack slot with faceplate |
| Dimensions (L × W × H) | Approx. 160 mm × 160 mm × 120 mm (typical Mark VI board footprint) |
| Weight | Approx. 1.0 kg (typical Mark VI board gross weight) |
| Country of Origin | USA (typical) |
FAQ
FAQ
Q1. What is IS200BAIAH1BEE?
It is a Bridge Application Interface Board used in GE Mark VI turbine control systems to interface field signal inputs with core control logic.
Q2. What does the BAIA board do?
The board isolates and conditions signals from terminal boards and routes them to DSPX and related control system modules.
Q3. Which system series does it belong to?
It belongs to the GE Mark VI Speedtronic IS200 control series.
Q4. Does it have any status indicators?
Yes, it has an IMOK LED on the front faceplate for basic status indication.
Q5. How is the board mounted?
It is vertically inserted into the control rack’s designated slot with a faceplate securing it.
Q6. What should be considered before installing?
Install it only in the correct slot (Slot 1) in the Mark VI rack to avoid damage.
Q7. What is the typical size of this board?
The approximate dimensions are 160 mm × 160 mm × 120 mm, consistent with Mark VI boards.
Q8. Is this board still available?
This is a legacy Mark VI component; while GE may not currently produce it, it can be sourced through surplus and aftermarket suppliers.
