Technical Specifications
| Parameter | Description |
|---|---|

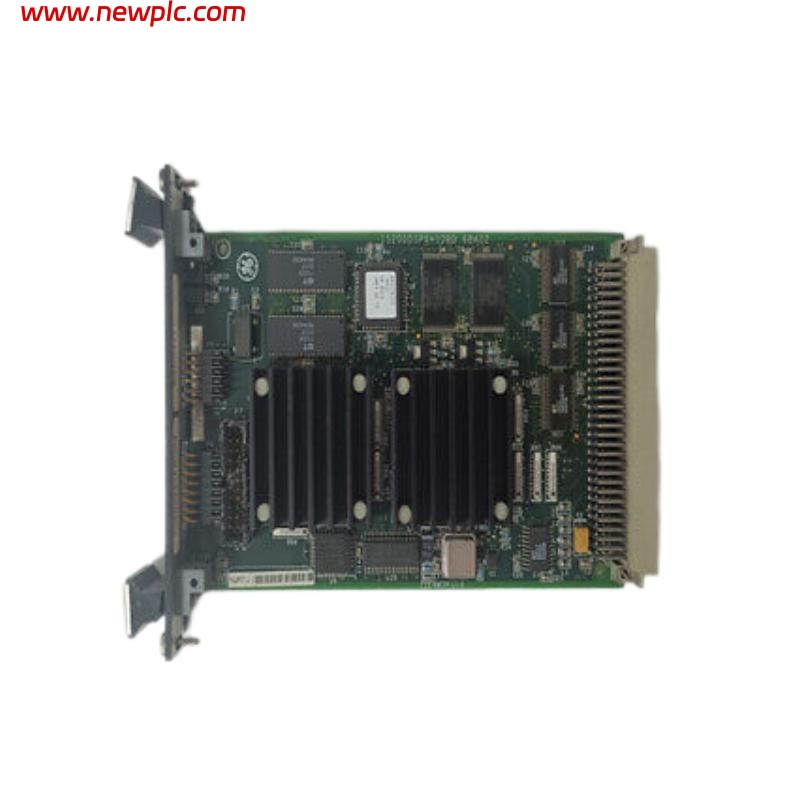

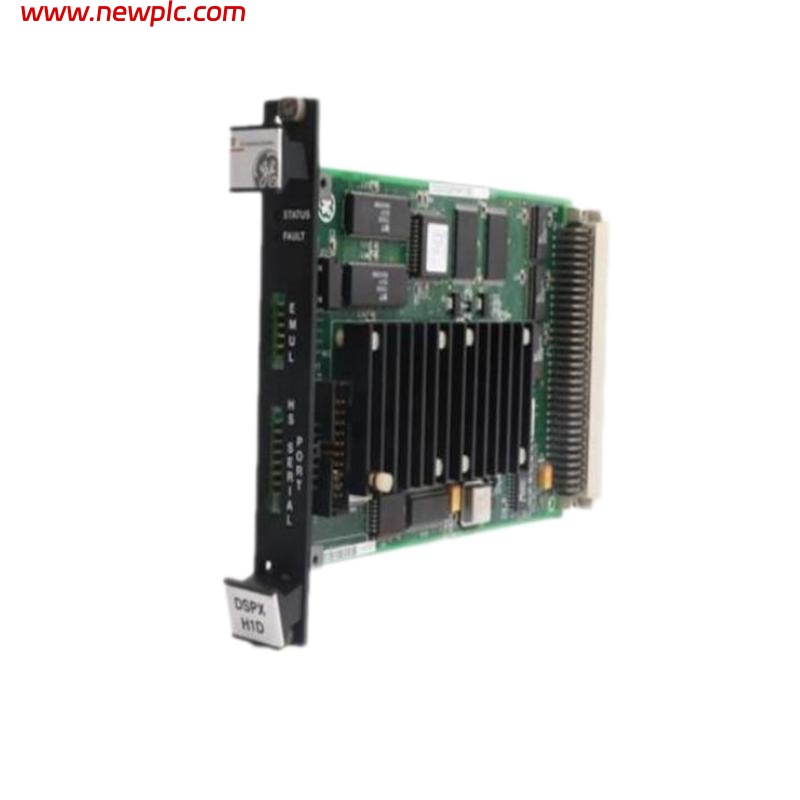

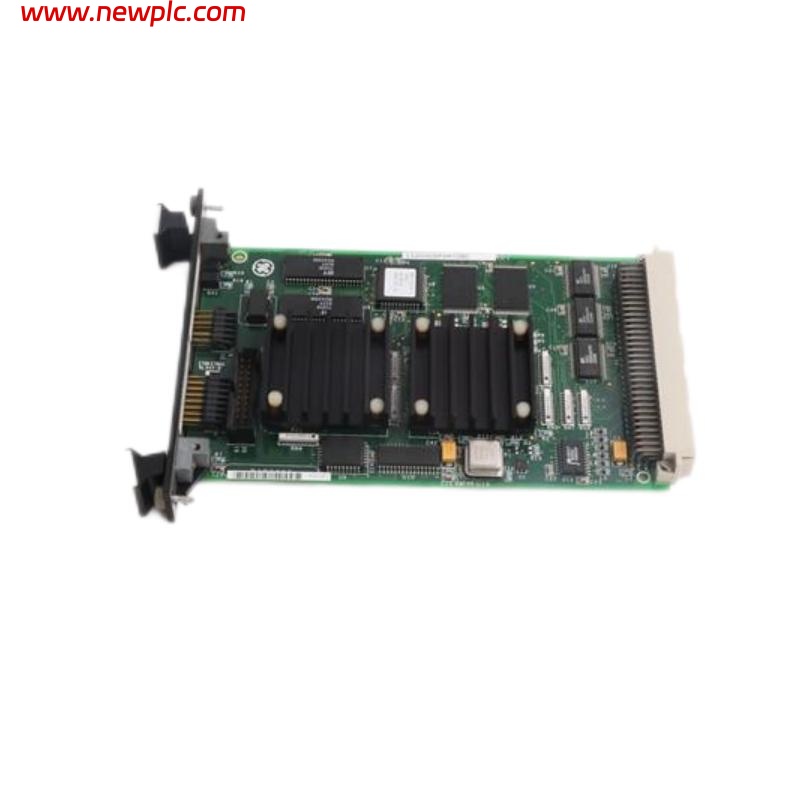

| Product Model | GE IS200DSPXH1DBD |
| Product Type | Digital Signal Processor Control Board |
| Series | GE Mark VIe / IS200 series |
| Core Processor | 32-bit floating-point DSP (Digital Signal Processor) |
| I/O Channels | Up to 16 analog inputs and 8 digital I/O channels |
| Analog Input | 4–20 mA / 0–10 VDC with 24-bit ADC resolution |
| Digital I/O | 8 configurable digital input/output channels |
| Communication | GE Mark VIe backplane bus; optional Profinet/Ethernet/IP gateway |
| Power Supply | 24 V DC ± 10% |
| Indicators | Status and fault LEDs on front panel |
| Isolation | Designed for industrial control environments |
| Operating Temperature | –40 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Dimensions (H × W × D) | Approx. 178 mm × 102 mm × 254 mm |
| Weight | Approx. 1.8 kg |
| Typical Application | High-speed signal processing for turbine and industrial automation systems |
FAQ
FAQ
Q1. What is the GE IS200DSPXH1DBD used for?
It is a digital signal processor control board designed to perform high-speed data acquisition and processing within GE’s Mark VIe turbine control systems.
Q2. How many analog inputs and digital I/O channels does it support?
The module supports up to 16 analog input channels and 8 digital input/output channels.
Q3. What kind of processor does this board use?
It uses a 32-bit floating-point digital signal processor for real-time signal analysis.
Q4. Which signal types can be connected to the analog inputs?
Analog inputs accept standard industrial signals such as 4–20 mA or 0–10 VDC.
Q5. What communications interfaces are available?
Communication is primarily via GE’s Mark VIe backplane bus, with optional support for Profinet/Ethernet/IP gateways.
Q6. What environments can this module operate in?
It is designed to operate in industrial conditions with a wide temperature range from –40 °C to +70 °C.
Q7. How is operational status indicated on the module?
The module includes front-panel LEDs for status and fault indication.
Q8. What types of systems commonly use this board?
It is commonly used in turbine control, vibration analysis, and industrial automation systems requiring precise, real-time signal processing.
