Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | IS200EACFG3A |

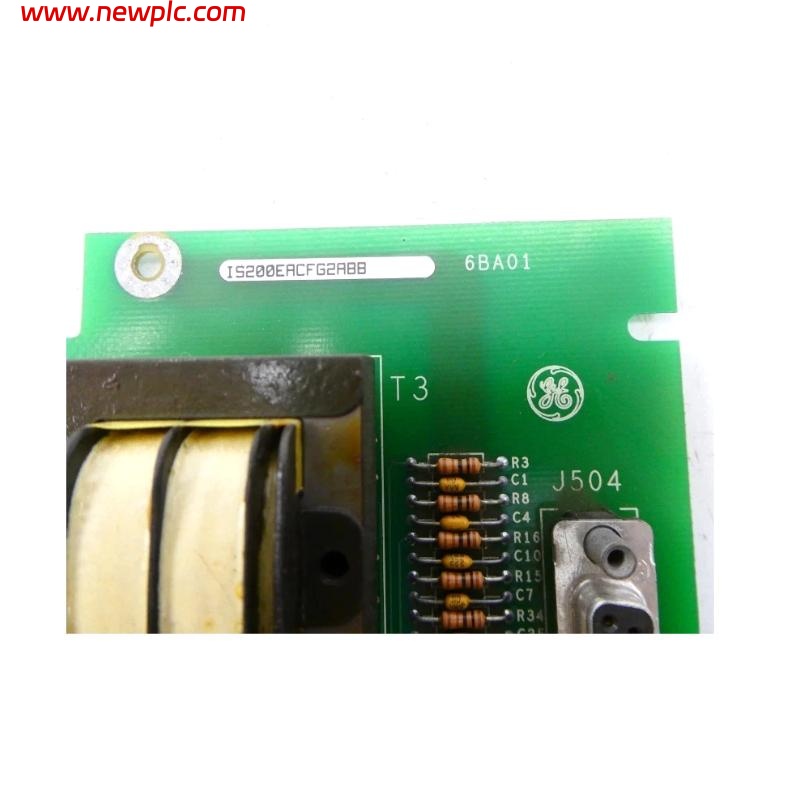

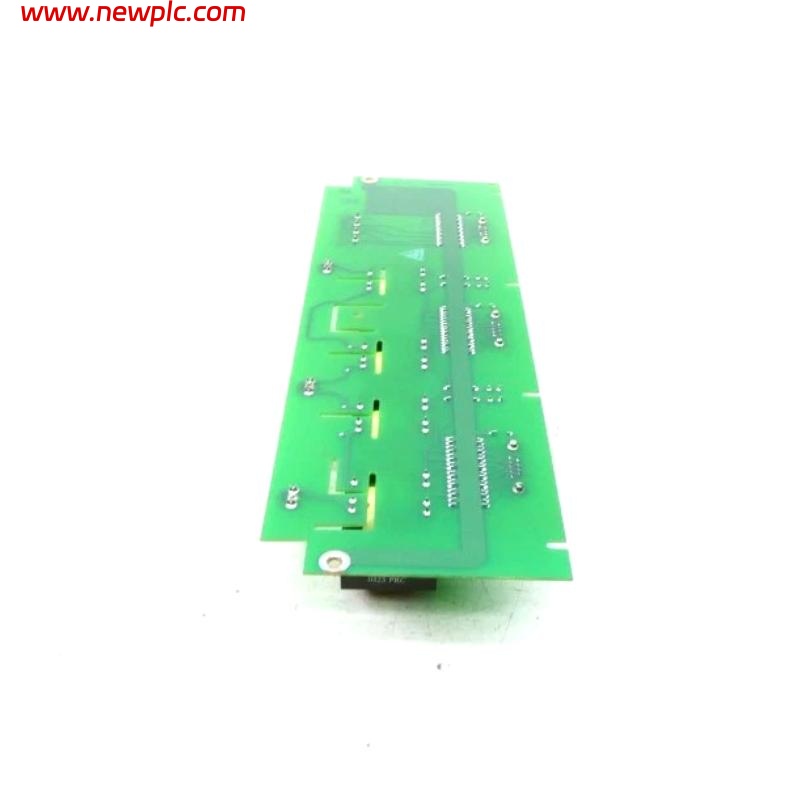

| Product Type | Exciter AC Feedback Board |
| System Compatibility | GE EX2100 |
| Voltage Measurement | Three-phase with built-in transformers (T1–T4) |
| Current Input Support | Supports two flux/air core coils |
| Voltage Input Terminals | TB1, TB2, TB3 (for 3-phase inputs) |
| Coil Input Terminals | TB4 (for flux/air core coil inputs) |
| Output Connectors | 3 × 9-pin Sub-D (J504, J509, J514) |
| Cable Length Support | Up to 90 meters to EBKP backplane |
| Mounting Method | Secured with 3 screws on standoffs |
| Installation Location | Exciter auxiliary cabinet |
| Grounding | Shield terminal screws within 3 inches of inputs |
| Dimensions | 110 × 60 × 67 mm |
| Weight | 0.14 kg |
FAQ
FAQ
Q1: What is the main function of the IS200EACFG3A board?
A1: It measures the exciter’s three-phase AC voltage and current for feedback and control in the GE EX2100 excitation system.
Q2: How many phases can the board monitor simultaneously?
A2: The board supports simultaneous three-phase voltage monitoring.
Q3: What type of coils can be connected to this board?
A3: Two flux/air core coils can be connected for current measurement.
Q4: What connectors are used for output signal transmission?
A4: It uses three DB9 (9-pin Sub-D) connectors labeled J504, J509, and J514.
Q5: Where is the IS200EACFG3A board typically installed?
A5: It is installed inside the exciter auxiliary cabinet.
Q6: How long can the cable be between the EACF board and EBKP backplane?
A6: The cable length can be up to 90 meters.
Q7: What grounding feature improves signal integrity?
A7: Cable shield terminal screws are located within 3 inches of the voltage input terminals for enhanced grounding and noise rejection.
Q8: What are the dimensions and weight of the board?
A8: The board measures 110 × 60 × 67 mm and weighs 0.14 kg.
