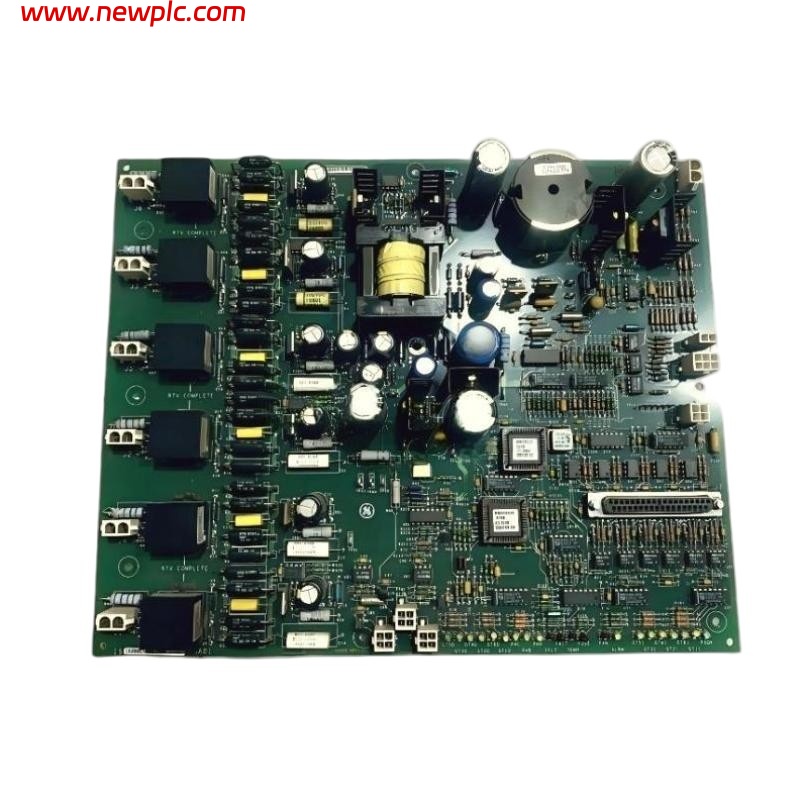

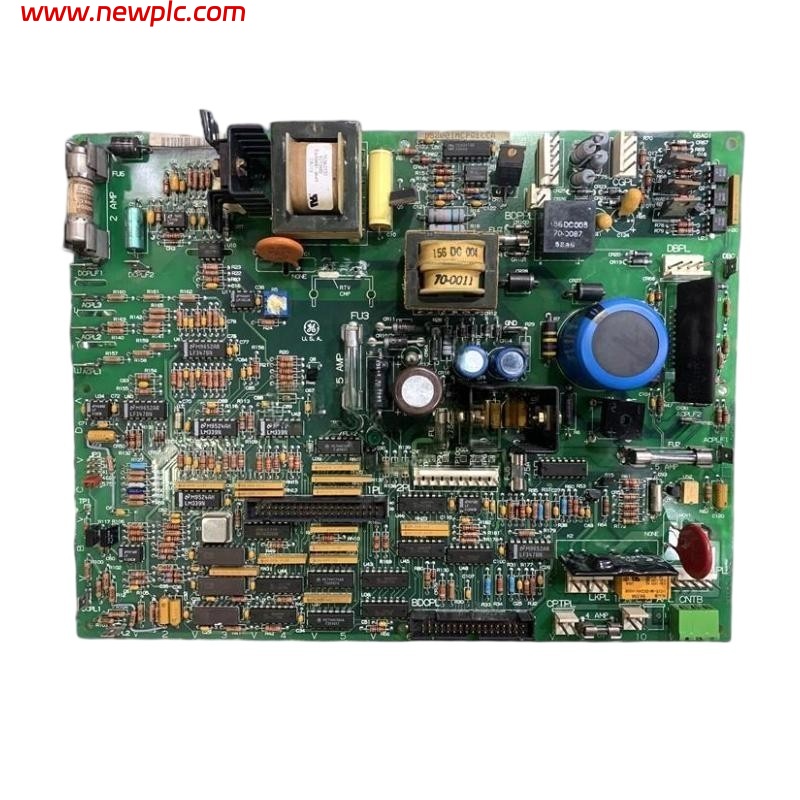

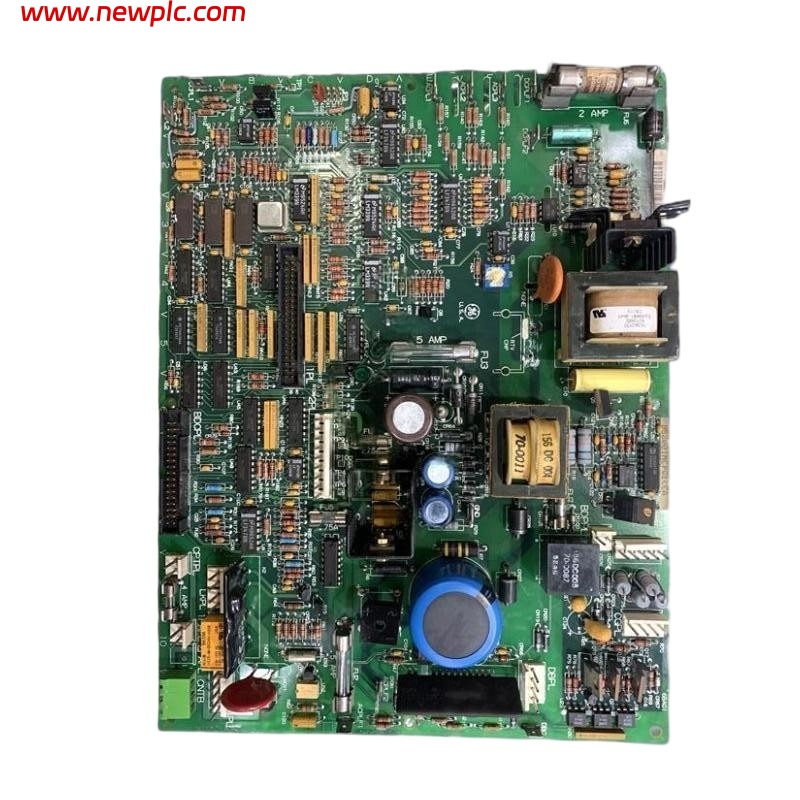

GE IS200EHPAG1A Gate Pulse Amplifier Board

FAQ

Q1. What is the IS200EHPAG1A used for?
It is a gate pulse amplifier board used in GE EX2100 excitation control systems to generate amplified pulse signals for silicon-controlled rectifiers (SCRs).

Q2. Which systems is this module compatible with?
It is designed for use within General Electric’s EX2100 excitation control series.

Q3. How does the module interface with SCRs?
The board amplifies and conditions control logic signals into gate pulses to directly drive SCRs.

Q4. What power supply does it use?
It typically operates with a 24 V DC nominal supply.

Q5. How many connectors are on the board?
The board has 14 plug connectors with varying plug configurations.

Q6. What are the physical dimensions of the IS200EHPAG1A?
Approximate dimensions are 120 mm × 150 mm × 80 mm.

Q7. What is the approximate weight of the module?
It weighs about 1.2 kg.

Q8. What environmental conditions can it tolerate?
It operates from about 0 °C to +60 °C and can be stored between –40 °C and +85 °C.

Q9. Does the module include protection features?
It includes isolation between logic and power circuits for safety and reliability.

Q10. Is the IS200EHPAG1A still available for purchase?
Yes, it is available through industrial automation suppliers and surplus markets worldwide.
