Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | GE IS200EHPAG1ABA |
| Manufacturer | General Electric (GE) |

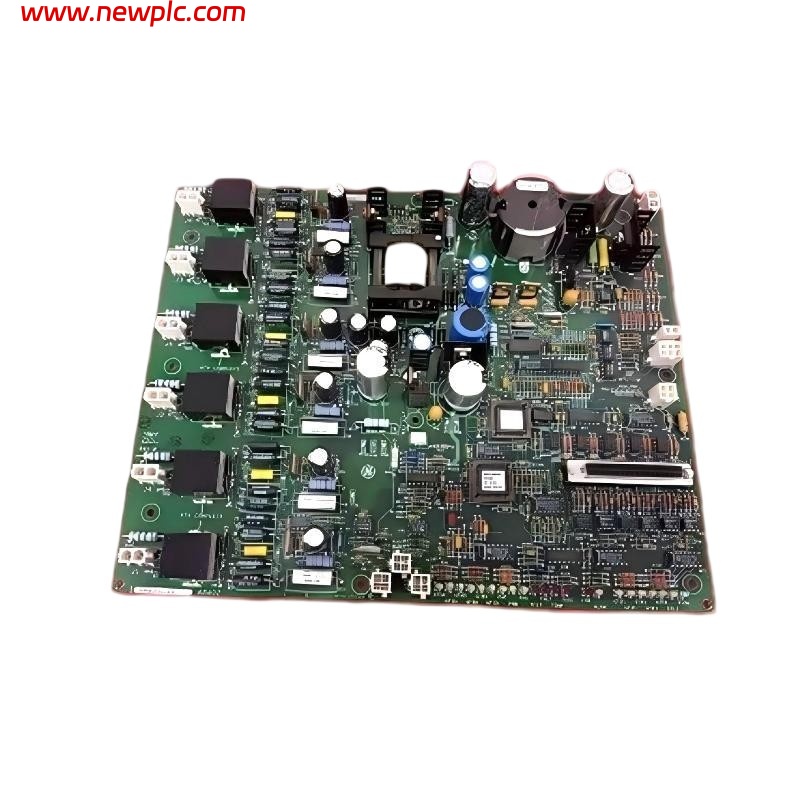

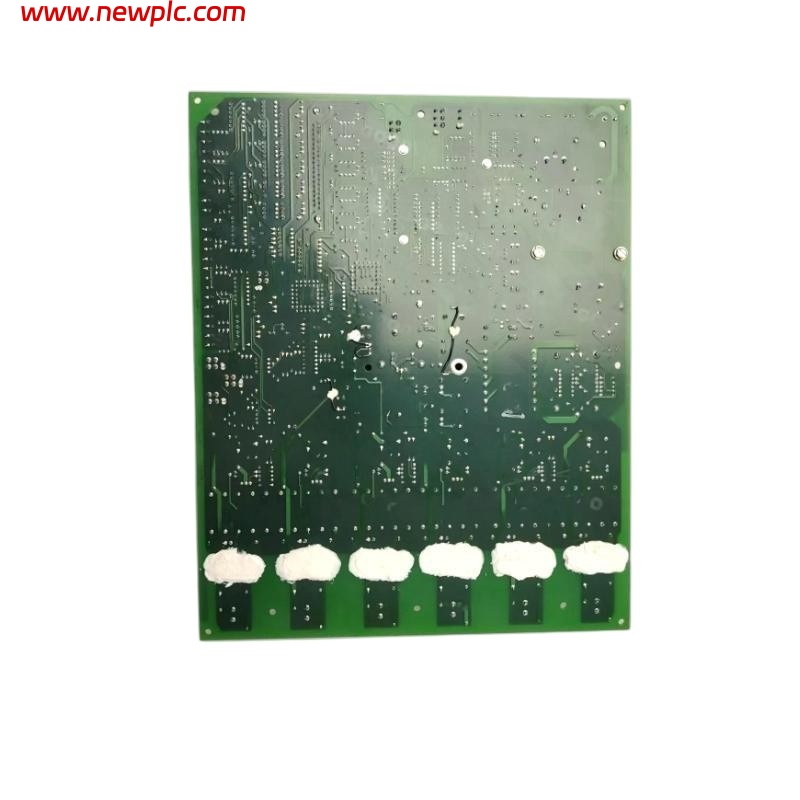

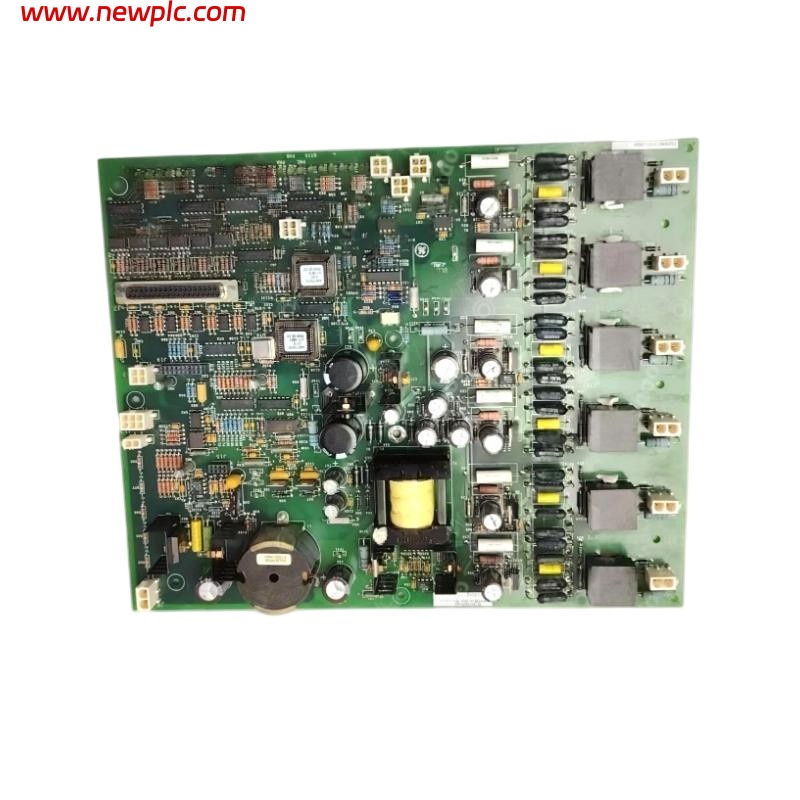

| Product Type | Gate Pulse Amplifier Board |
| Series | EX2100 / Mark VI Excitation Control System |
| Functional Role | Amplifies gate firing signals and conditions them to drive SCRs or IGBTs in excitation systems |
| System Compatibility | GE EX2100 and Mark VI excitation control platforms |
| Input Signals | Gate command signals from controller logic |
| Output Signals | High‑power gate drive pulses to SCRs/IGBTs |
| Power Supply | Nominal 125 V DC from exciter power distribution |
| Status Indicators | LED indicators for power, command, output, and fault conditions |
| Protection | Overcurrent and overtemperature detection with fault signaling |
| Operating Temperature | –30 °C to +65 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 5 % to 95 % non‑condensing |
| Mounting | Installed inside exciter control backplane or cabinet |
| Dimensions | 160 mm × 160 mm × 120 mm |
| Weight | 0.5 kg |
| Compliance | Engineered for industrial turbine/generator excitation environments |
FAQ
FAQ
Q1. What is the GE IS200EHPAG1ABA used for?
It is a gate pulse amplifier board that strengthens and conditions gate command signals to reliably drive semiconductor devices like SCRs and IGBTs in exciter power electronics.
Q2. Which systems is this module compatible with?
The module is designed for use in GE EX2100 excitation control systems and Mark VI turbine/excitation platforms.
Q3. What type of output does the IS200EHPAG1ABA provide?
It provides high‑power gate drive pulses to power semiconductor devices in the exciter circuit.
Q4. What power supply does the board require?
It operates on a nominal 125 V DC supply sourced from the exciter power distribution system.
Q5. Does this module include status indicators?
Yes, it includes LEDs for monitoring supply power, gate commands, outputs, and fault conditions.
Q6. What are the environmental operating limits?
The board operates reliably from –30 °C to +65 °C with humidity up to 95 % non‑condensing.
Q7. What are the physical size and weight of this module?
The module’s dimensions are approximately 160 mm × 160 mm × 120 mm and it weighs about 0.5 kg.
Q8. Is the IS200EHPAG1ABA suitable for industrial use?
Yes, it is designed with industrial‑grade protection and performance for heavy‑duty turbine/generator excitation control applications.
