Technical Specifications
| Parameter | Description |
|---|---|

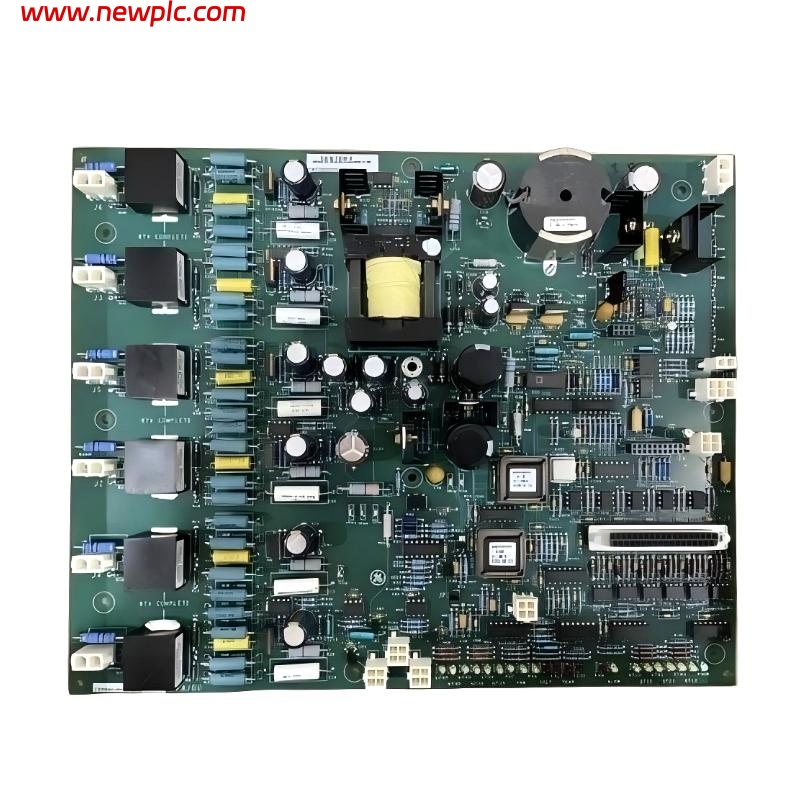

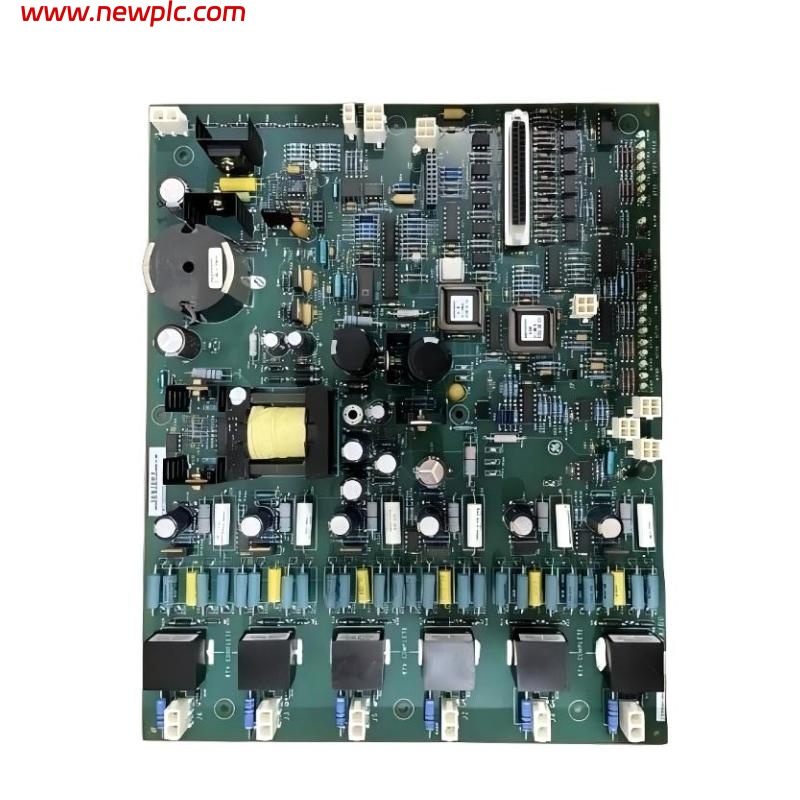

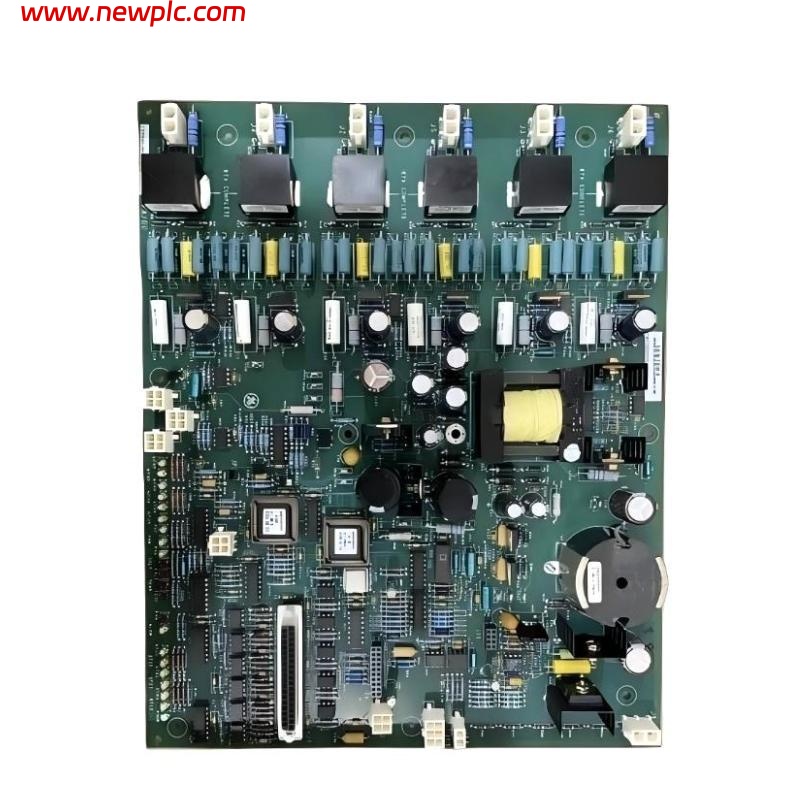

| Product Model | GE IS200EHPAG1DCB Exciter High Voltage Pulse Amplifier |
| Function | Provides high-voltage pulse amplification for exciter field control in turbine systems |
| System Role | Amplifies and shapes control signals to drive exciter field devices accurately and reliably |
| Input Signal | Low-voltage control pulses from regulator or DSP modules |
| Output Signal | High-voltage pulses suitable for exciter field windings |
| Amplification Method | Solid-state pulse amplifier with fast switching capability |
| Protection Features | Overvoltage, overcurrent, and thermal protection circuits integrated |
| Mounting | Chassis or panel-mounted within turbine control cabinets |
| Operating Temperature | –30°C to +65°C |
| Storage Temperature | –40°C to +85°C |
| Humidity Rating | 5%–95% non-condensing |
| PCB Construction | Industrial-grade multilayer FR-4 with conformal coating and reinforced insulation |
| Dimensions (L × W × H) | 250 × 180 × 60 mm |
| Weight | 1.2 kg |
FAQ
FAQ
Q1: What is the main purpose of the IS200EHPAG1DCB amplifier?
A1: It amplifies low-voltage control pulses into high-voltage pulses to drive exciter field windings accurately.
Q2: What type of input signals does this amplifier accept?
A2: Low-voltage control pulses from exciter regulators or digital control modules.
Q3: What kind of output does the amplifier provide?
A3: High-voltage pulses suitable for direct exciter field excitation.
Q4: Are protection features included in the amplifier?
A4: Yes, the board has built-in overvoltage, overcurrent, and thermal protection circuits.
Q5: How is the amplifier mounted in the control system?
A5: It is designed for chassis or panel mounting within standard turbine control cabinets.
Q6: What environmental conditions are recommended for operation?
A6: Operation should remain within –30°C to +65°C and 5%–95% non-condensing humidity.
Q7: Can this amplifier be used with different exciter types?
A7: Yes, it is compatible with field windings requiring high-voltage pulse excitation, provided voltage and current ratings match.
Q8: What maintenance is required for the amplifier?
A8: Regular inspection of connections, verification of output pulse quality, and checking for any thermal or electrical stress signs.
