Technical Specifications
| Parameter | Description |
|---|---|

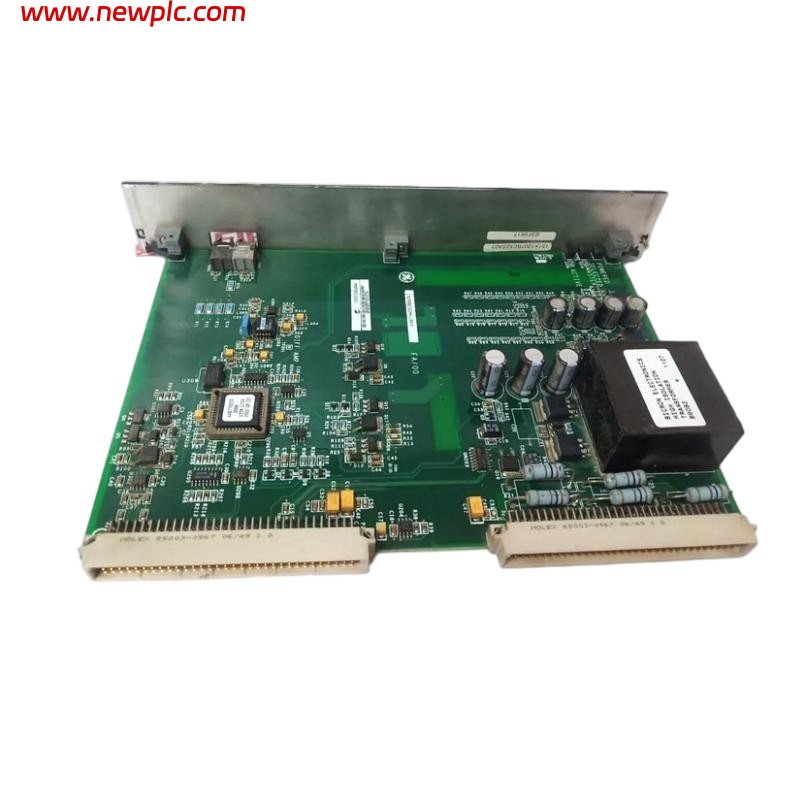

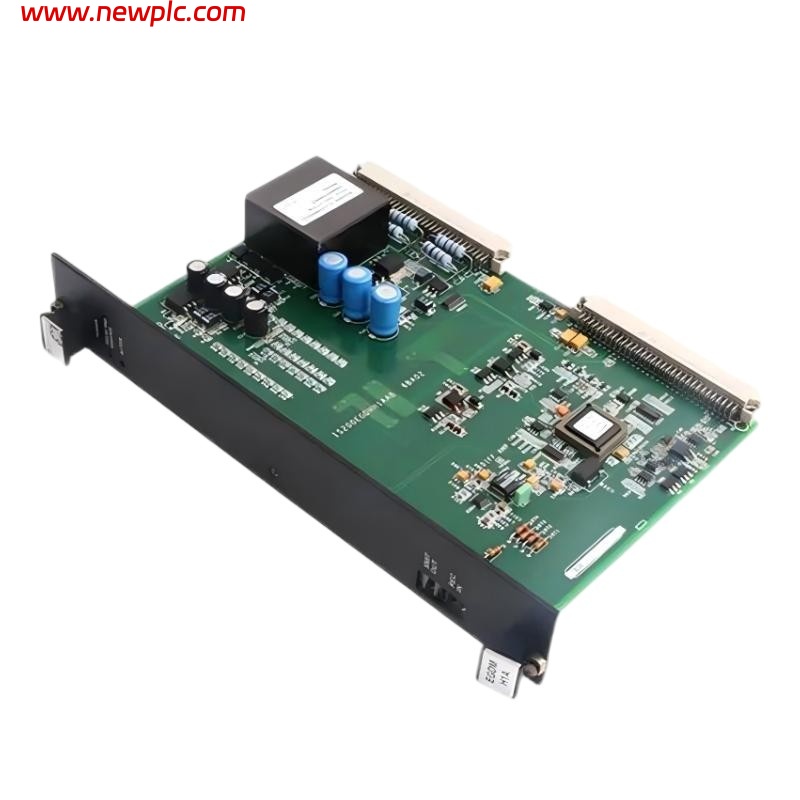

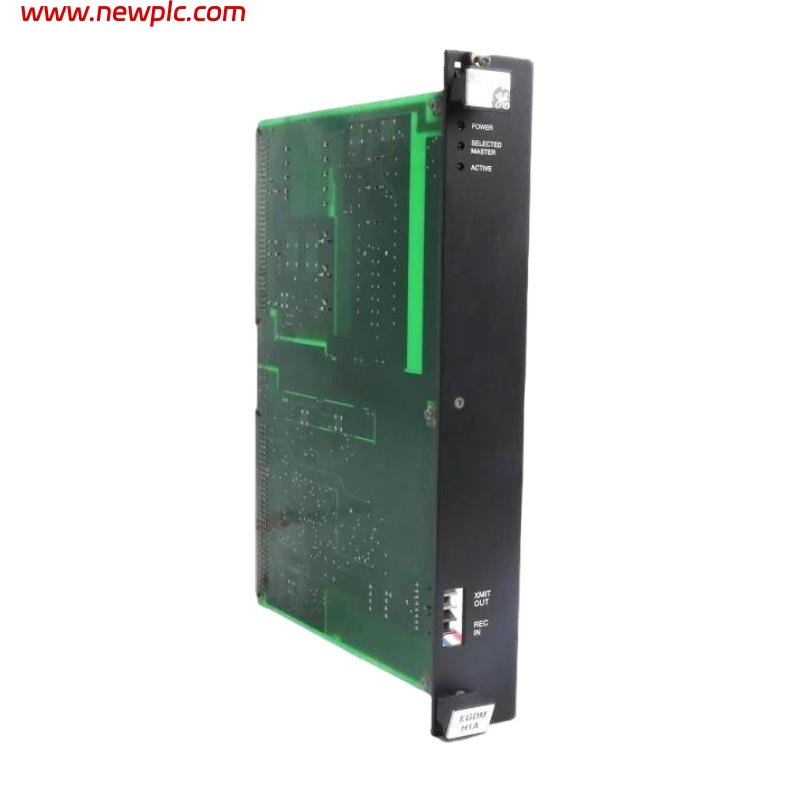

| Product Model | GE IS200ERDDH1ABA |
| Manufacturer | General Electric (GE) |
| Product Type | Exciter Regulator Digital/Discrete I/O Board |
| Series | EX2100 Excitation Control / Mark VI Control System |
| Functional Role | Provides digital and discrete I/O interfaces between the regulator logic and field terminals for excitation control. |
| System Compatibility | GE EX2100 exciter control platforms and GE Mark VI excitation control cabinets. |
| Input Channels | Multiple discrete/logic inputs (status and control signals). |
| Output Channels | Multiple discrete/logic outputs to terminal boards and relays. |
| Backplane Interface | Standard Mark VI backplane connectors. |
| Power Supply | 24 V DC (typical control system supply). |
| Operating Temperature | –20 °C to +65 °C (industrial control range). |
| Storage Temperature | –40 °C to +85 °C. |
| Humidity | 5 %–95 % non‑condensing. |
| Mounting | Rack‑mounted board in Exciter/Regulator backplane slot. |
| Dimensions | Approximately 180 mm × 100 mm × 35 mm (board form factor). |
| Weight | ~0.45 kg. |
| Protection | Conformal coating and surge protection for industrial environments. |
| Compliance | Designed for GE turbine/generator excitation control environments. |
FAQ
FAQ
Q1. What is the GE IS200ERDDH1ABA?
It is a digital/discrete I/O board that provides interfaces for logic and field signals in GE EX2100 and Mark VI excitation control systems.
Q2. Which systems is the IS200ERDDH1ABA compatible with?
It works with GE EX2100 exciter control platforms and GE Mark VI excitation control cabinets.
Q3. What functional role does this board serve?
It routes digital and discrete status/control signals between the regulator logic and external terminals/relays.
Q4. How is this module installed?
The board mounts into the exciter/regulator backplane rack inside the control cabinet.
Q5. What voltage supply does the IS200ERDDH1ABA require?
It uses a 24 V DC control supply typical of GE excitation systems.
Q6. What are its physical size and weight?
The board measures about 180 mm × 100 mm × 35 mm and weighs around 0.45 kg.
Q7. Can this board operate in harsh industrial conditions?
Yes, it is built with conformal coating and designed to tolerate industrial temperature and humidity ranges.
Q8. What types of signals does this board handle?
It handles discrete and digital logic signals for status feedback and control outputs in excitation control systems.
