Technical Specifications
| Parameter | Description |
|---|---|

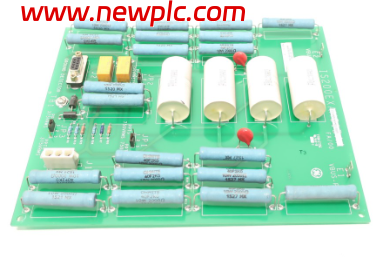

| Product Model | GE IS200EXAMG1BAA |
| Manufacturer | General Electric (GE) |
| Product Type | Exciter Attenuation Module |
| Series | EX2100e / Mark VIe Excitation Control System |
| Functional Role | Attenuates high-level exciter field voltages for ground-fault detection and feedback to control logic; works with field ground detector module (EGDM). |
| Power Supply | 24 V DC ±10% (isolated). |
| Control Outputs | ±10 V DC and 4–20 mA for field current regulation signals. |
| Communication Interfaces | Ethernet (SRTP), Genius Bus, Modbus TCP. |
| Input/Output Channels | 8 analog inputs, 4 digital outputs. |
| Accuracy | ±0.1 % full-scale (voltage/current sensing). |
| Operating Temperature | –20 °C to +65 °C. |
| Mounting | Rack-mounted (6U rack format). |
| Connectors | Standard module pin / connector set for EX2100e backplane interface. |
| Dimensions | 150 mm × 120 mm × 35 mm. |
| Weight | ~0.5 kg. |
| Compliance | Designed for industrial turbine/generator excitation environments with IEC/UL/CE certifications. |
FAQ
FAQ
Q1. What is the GE IS200EXAMG1BAA used for?
It is an exciter attenuation module that scales and conditions high-level field voltage signals for ground-fault detection and control feedback in GE EX2100e/Mark VIe systems.
Q2. What power supply does this module require?
It operates on an isolated 24 V DC supply nominal.
Q3. How does the IS200EXAMG1BAA interface with the excitation system?
It connects via rack-mount backplane interfaces and communicates through Ethernet (SRTP), Genius Bus, or Modbus TCP.
Q4. What types of signals does this module output?
It provides ±10 V DC and 4–20 mA control signals for field current regulation and monitoring.
Q5. How many inputs and outputs does it support?
The module supports 8 analog inputs and 4 digital outputs.
Q6. What environment can the module operate in?
It is rated for –20 °C to +65 °C industrial environments.
Q7. What are its physical dimensions and weight?
The module measures about 150 × 120 × 35 mm and weighs around 0.5 kg.
Q8. Is the IS200EXAMG1BAA suitable for redundant systems?
Yes, it is compatible with simplex and modular redundant configurations typical in large generator excitation control.
