Technical Specifications
| Parameter | Description |
|---|---|

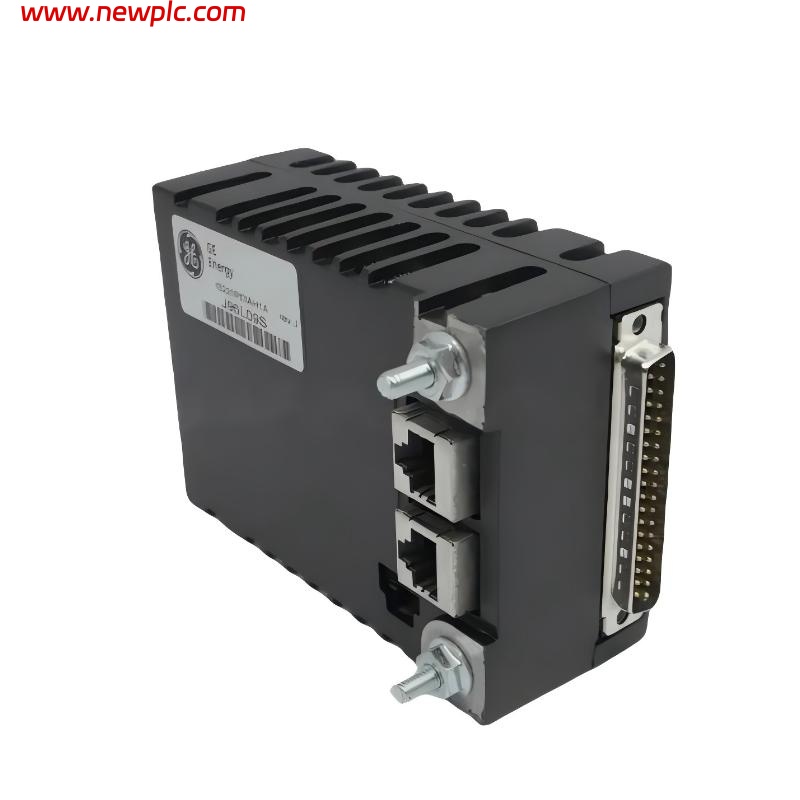

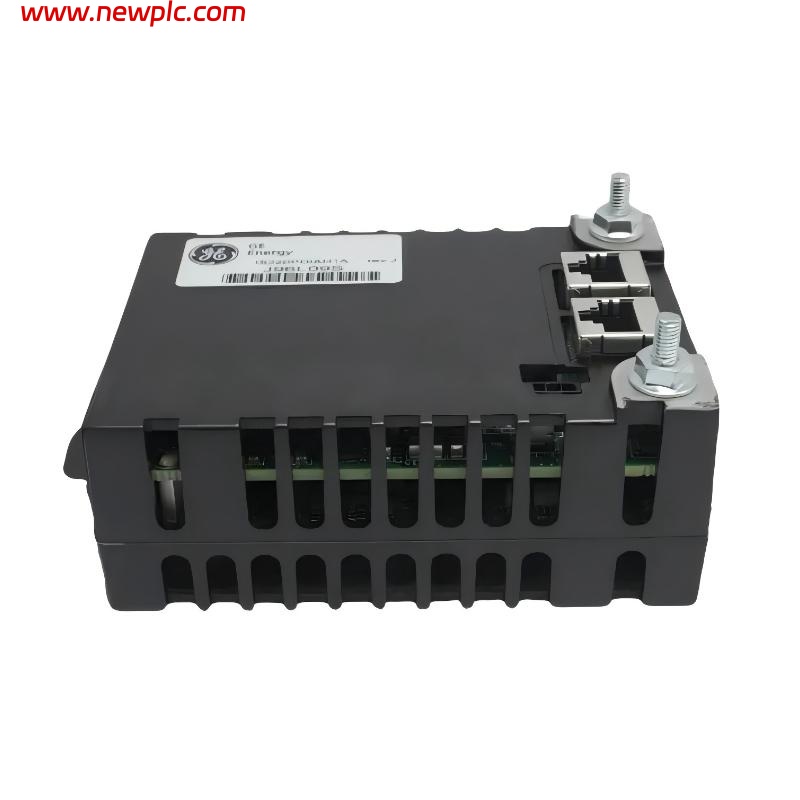

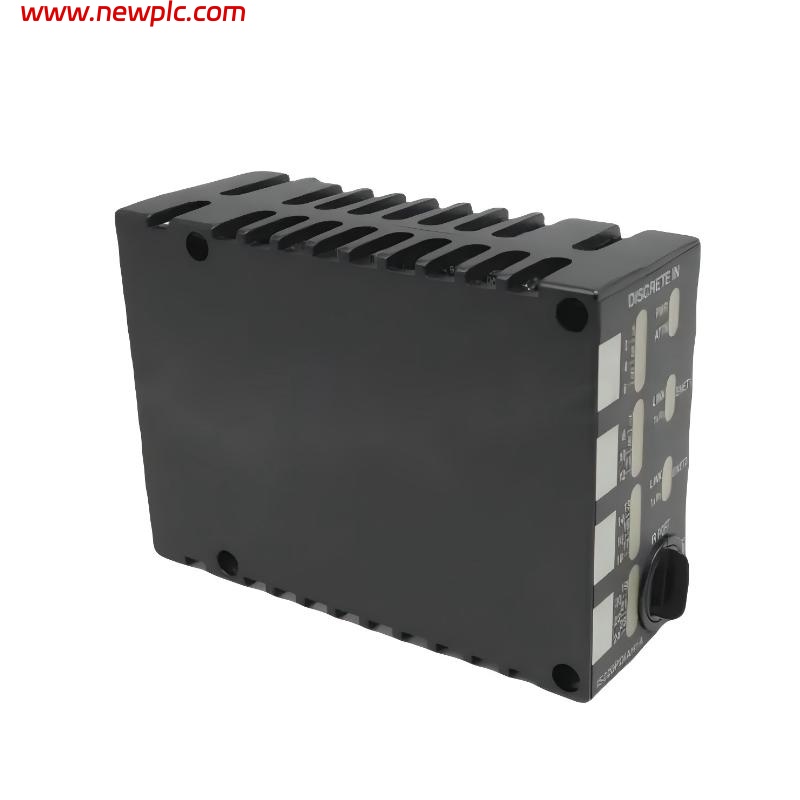

| Model | GE IS200PDIOH1A Turbine Protection Board |
| Function | Digital I/O interface board designed for turbine protection and control systems |
| Application | Interfaces discrete signals between field devices and the Mark VI/VIe platform |
| I/O Channels | Multiple isolated digital inputs and outputs |
| Input Type | Supports dry contact and wetted contact configurations |
| Output Type | Relay or solid-state style depending on system setup |
| Isolation | Channel-to-channel and ground isolation for improved noise immunity |
| Diagnostics | Self-test functions, channel health monitoring, and fault reporting |
| Communication | Backplane interface to Mark VI/VIe controller |
| Operating Voltage | Typically 24 VDC for logic and field I/O |
| Operating Temperature | Industrial-grade temperature tolerance |
| Mounting | Rack-mounted card with guided edge connectors |
| Dimensions | 150 × 50 × 100 mm |
| Weight | 0.4 kg |
FAQ
FAQ
Q1: What function does the IS200PDIOH1A serve in a turbine protection system?
A1: It processes digital inputs and outputs that support trips, interlocks, and general protection logic.
Q2: What diagnostic capabilities are built into this board?
A2: The board performs self-tests, monitors channel health, and reports abnormal conditions to the controller.
Q3: Does the board support both dry and wetted contact inputs?
A3: Yes, the configuration allows for either type depending on the turbine control system requirements.
Q4: How does the board exchange data with the Mark VI/VIe controller?
A4: Communication occurs through the system backplane, carrying I/O data and diagnostic information.
Q5: What design features enhance electrical noise immunity?
A5: Electrical isolation and filtering circuits help maintain stable operation in harsh environments.
Q6: Are the output channels suitable for critical trip commands?
A6: Yes, the outputs are designed for fast and dependable response in protection applications.
Q7: Does the board continuously report its health status?
A7: It sends ongoing diagnostic and operational status information to the turbine control system.
Q8: Can the IS200PDIOH1A be replaced while the system is running?
A8: Typically, Mark VI/VIe systems require a controlled shutdown before replacing the board, depending on site practices.
