Technical Specifications
| Parameter | Description |
|---|---|

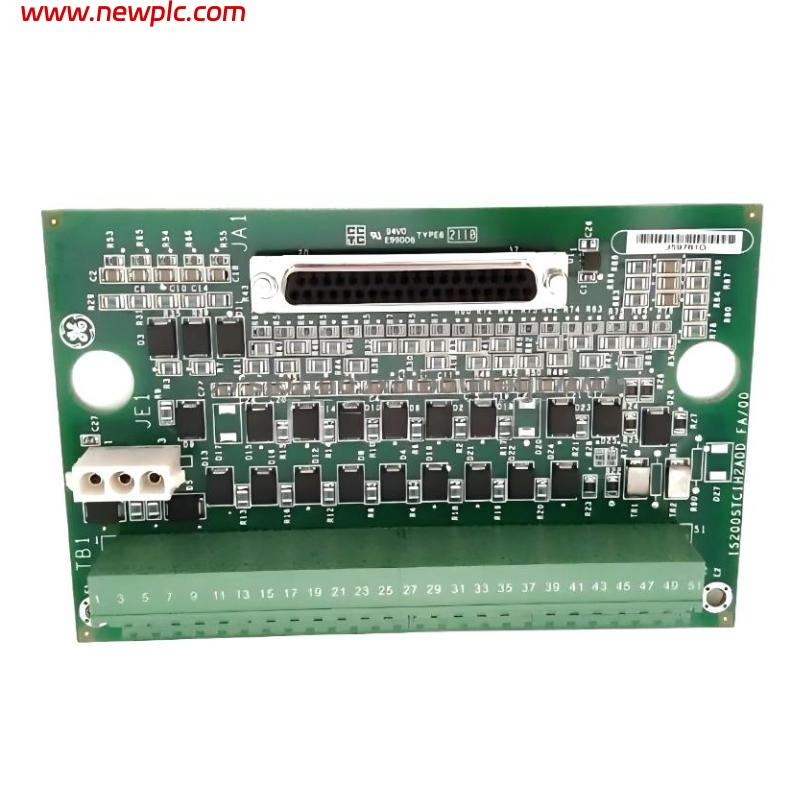

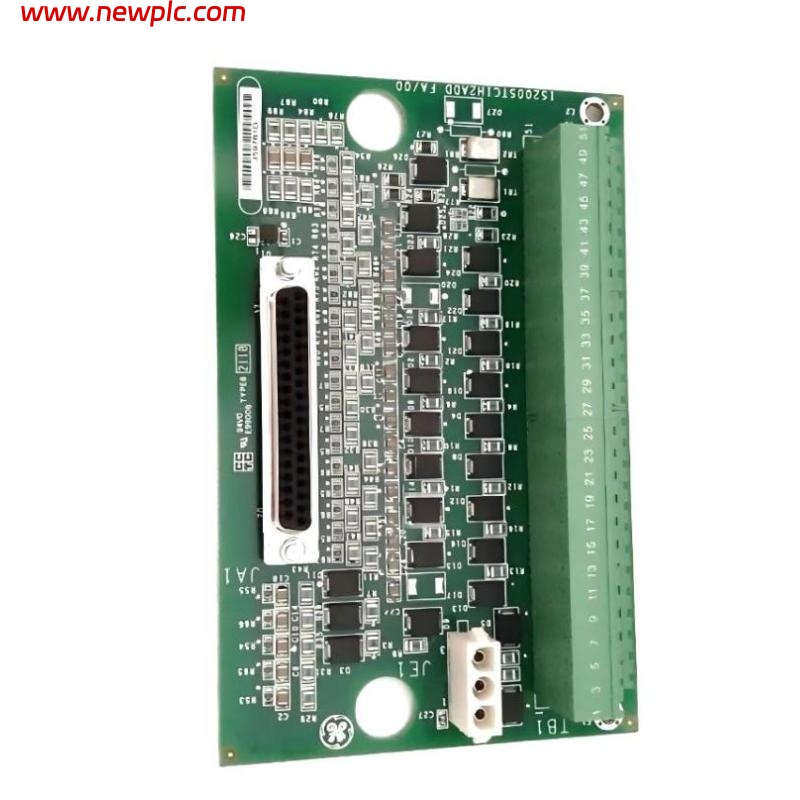

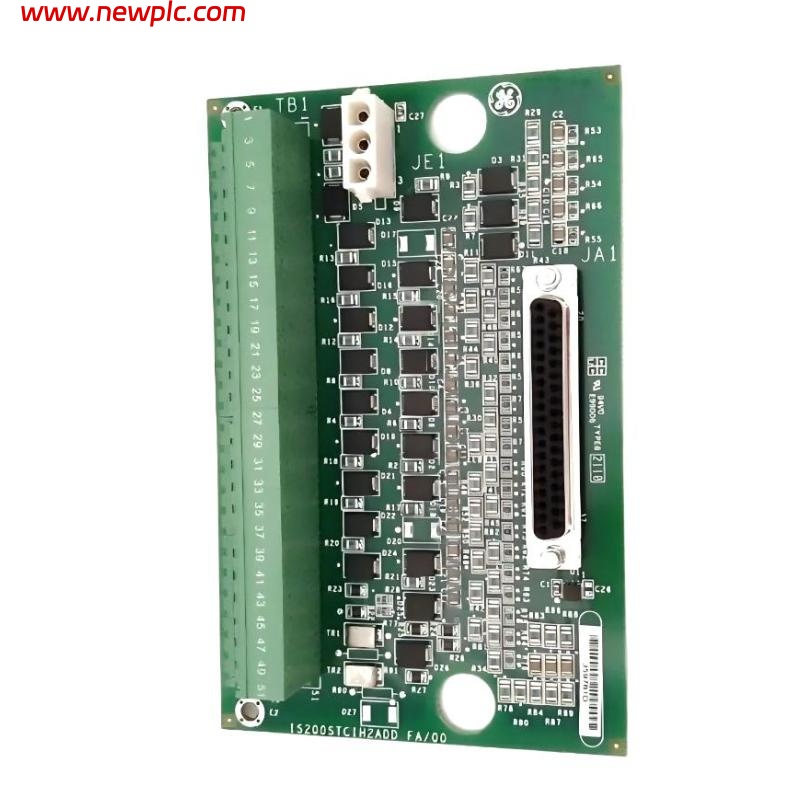

| Model | GE IS200STCIH2A Simplex Contact Input Terminal Board |
| Function | Provides simplex contact input interface for the Mark VI/VIe turbine control system |
| Input Channels | Multiple dry-contact digital input channels for status and protection logic |
| Input Type | Accepts dry contact or externally wetted contact signals depending on system wiring |
| Signal Conditioning | Includes debounce filtering and noise suppression for reliable detection |
| Isolation | Channel-to-ground and inter-channel isolation to protect against electrical interference |
| Diagnostics | Monitors contact integrity, wiring condition, and input state quality |
| Communication | Interfaces through the backplane with the Mark VI/VIe digital input processing modules |
| Operating Voltage | Typically powered by the system’s 24 VDC input supply |
| Mounting | Panel or rack-mounted design suitable for turbine control cabinets |
| Dimensions | 250 × 140 × 35 mm |
| Weight | 1.5 kg |
FAQ
FAQ
Q1: What type of signals does the IS200STCIH2A support?
A1: It supports dry-contact inputs and can also work with wetted contacts depending on system configuration.
Q2: How does the board improve reliability of contact input detection?
A2: It uses hardware filtering and debounce protection to prevent false transitions and noise interference.
Q3: Does this board provide health or diagnostic feedback?
A3: Yes, it reports wiring issues, contact quality, and input status information to the controller.
Q4: How is the board integrated into the Mark VI/VIe control system?
A4: It connects through the system backplane to dedicated digital input processing modules.
Q5: Can this board be used for turbine protection logic?
A5: Yes, the digital contact inputs are commonly used for critical protection interlocks and trip conditions.
Q6: Is the board suitable for noisy electrical environments?
A6: Yes, its isolation and filtering design allows stable operation in turbine and industrial environments.
Q7: Does the board support redundant contact input configurations?
A7: This model is designed for simplex configurations; redundant systems use different board variants.
Q8: Can field wiring be transferred easily during board replacement?
A8: Yes, removable terminal blocks allow quick wiring transfer without disturbing field conductors.
