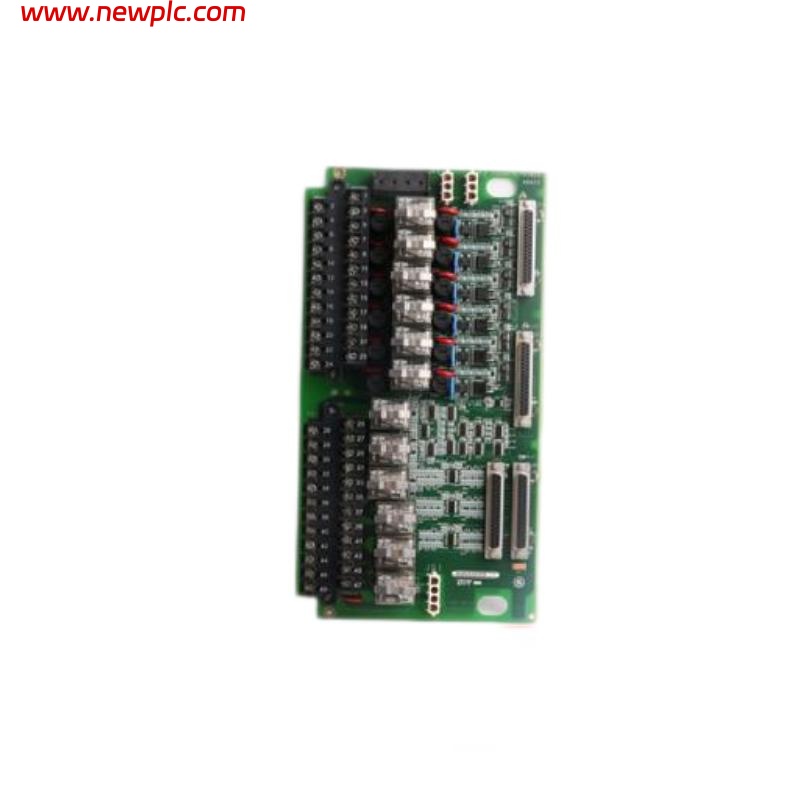

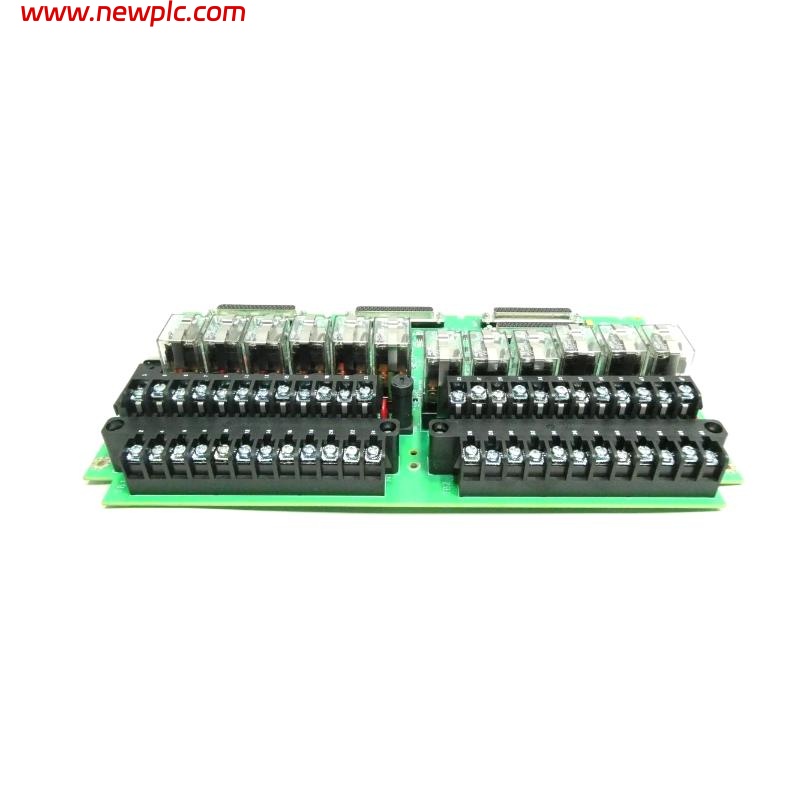

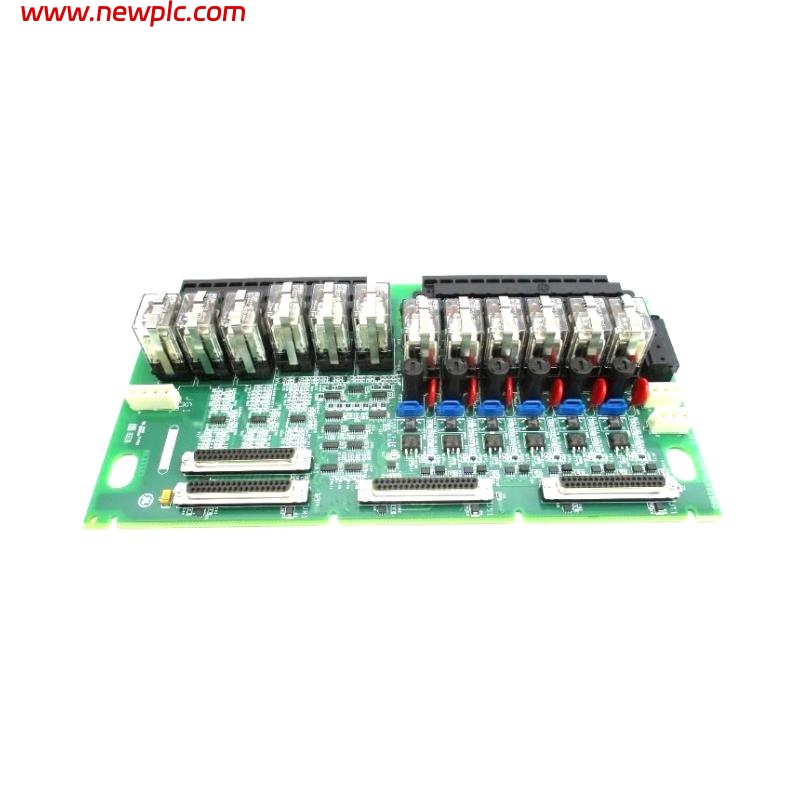

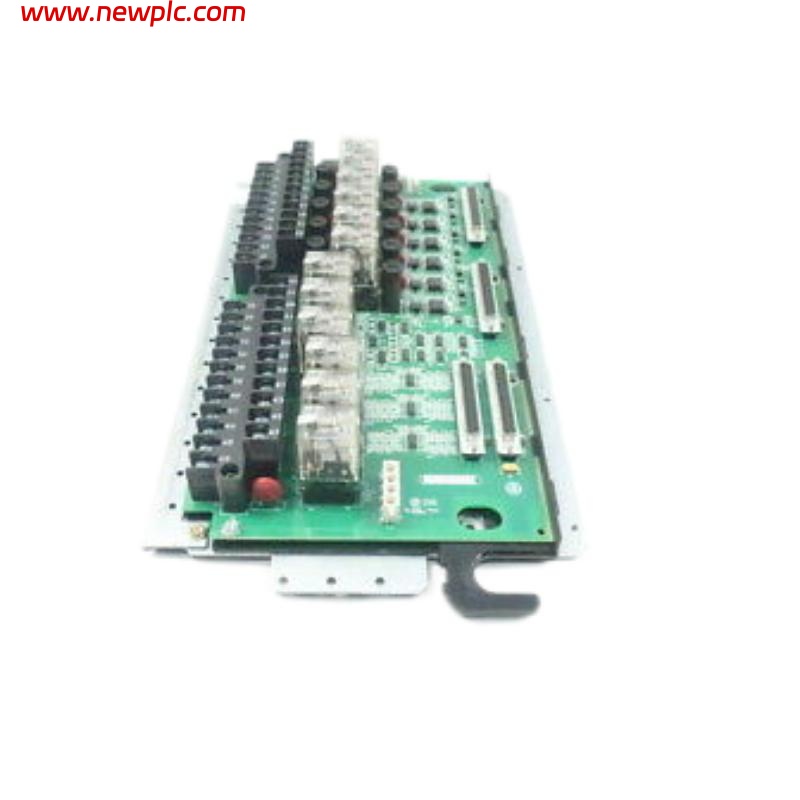

GE IS200TRLYH1BED Relay Output Terminal Board

FAQ

Q1. What is the IS200TRLYH1BED used for?
It is a relay‑output terminal board that provides conditioned relay outputs to field devices such as solenoids, alarms, and breakers in GE Mark VI/Mark VIe control systems.

Q2. How many relay outputs are available?
It provides 12 Form‑C relay outputs.

Q3. What types of voltages can the relays handle?
The relays can typically handle up to 125 VDC and 115–230 VAC coil/event loads depending on configuration.

Q4. How is this board connected to the control system?
It interfaces with the Mark VI/VIe control system through a DC‑37 pin connector to the associated I/O pack.

Q5. Where is this board installed?
It is mounted on DIN‑rail or panel within the control cabinet as a terminal board between I/O packs and field wiring.

Q6. What happens if this board fails?
Failure of this board can result in loss of relay outputs, which may prevent field devices from actuating as intended.

Q7. What environmental conditions can it withstand?
It is designed to operate in industrial environments with temperatures from about –30 °C to +65 °C and high humidity tolerance.

Q8. Are protection features included on the board?
Yes — it typically includes transient suppression and optional fuse protection for field circuits.

GE IS200TRLYH1BED
