Technical Specifications
| Parameter | Description |
|---|---|

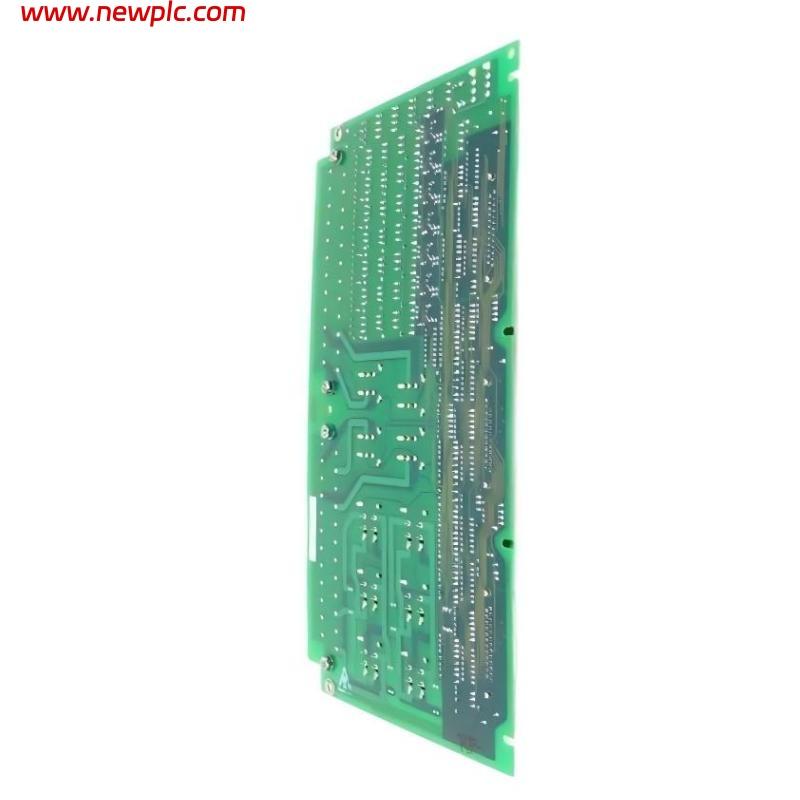

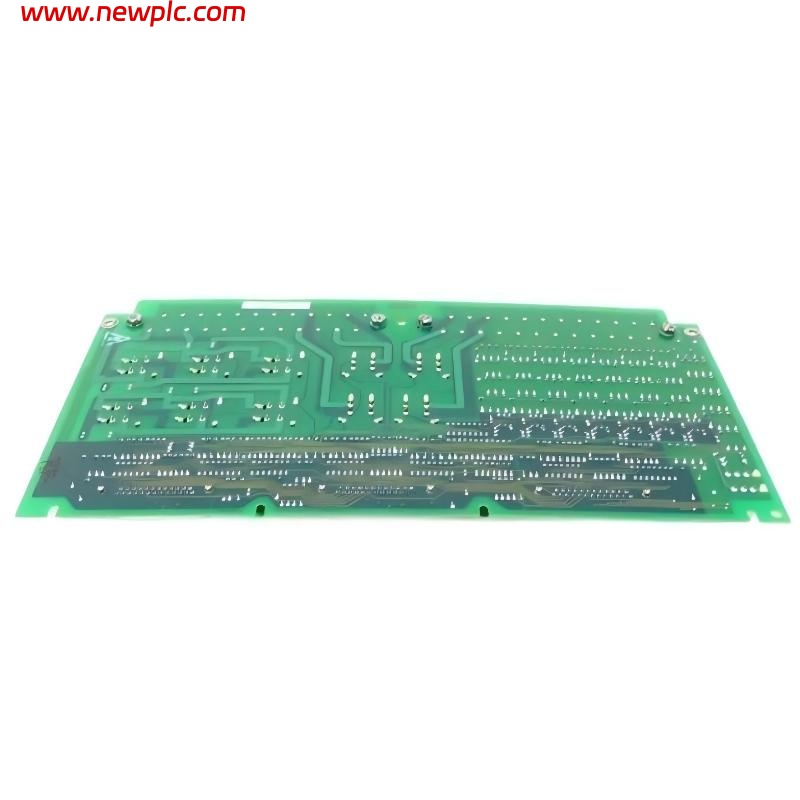

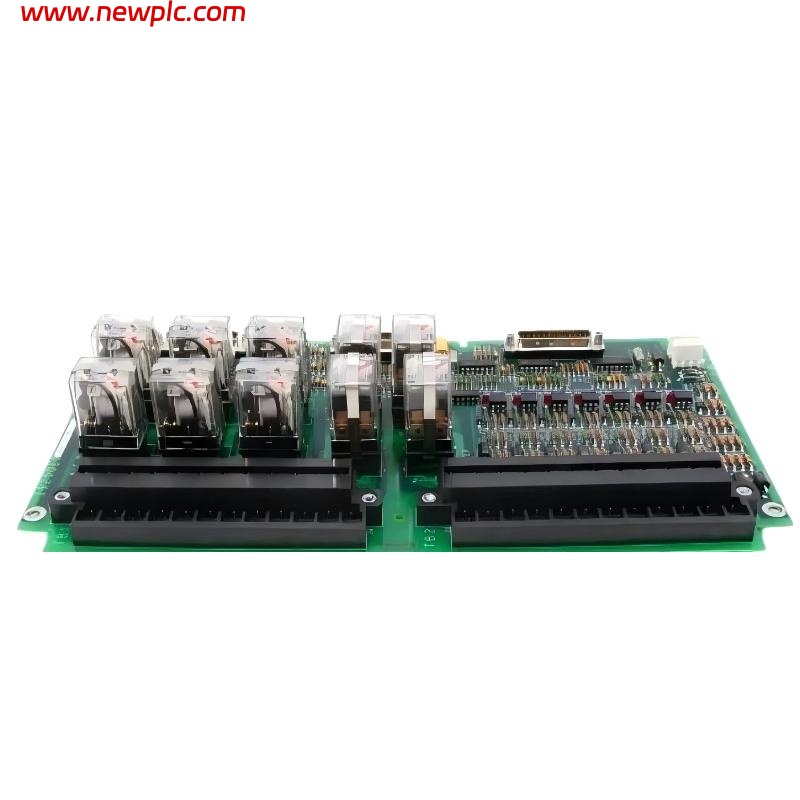

| Model | GE IS200TRROH1B Primary Trip Terminal Board |
| Function | Provides primary trip output interface for turbine protection in Mark VI/VIe systems |
| Output Channels | Multiple digital outputs dedicated to turbine trip and emergency protection |
| Output Type | Dry-contact or relay outputs depending on configuration |
| Isolation | Channel-to-channel and channel-to-ground isolation for noise immunity |
| Signal Conditioning | Debounce filtering and protective circuitry to ensure reliable trip operation |
| Diagnostics | Monitors output status, wiring integrity, and board health |
| Communication | Connects through the Mark VI/VIe backplane to turbine protection modules |
| Operating Voltage | Typically 24 VDC supplied by turbine control system |
| Mounting | Panel or rack-mounted in turbine control cabinets |
| Dimensions | 178 × 330.2 mm |
| Weight | 0.907 kg |
FAQ
FAQ
Q1: What is the main purpose of the IS200TRROH1B board?
A1: It provides primary trip outputs for turbine protection, enabling rapid and reliable shutdown during emergencies.
Q2: What types of outputs are supported?
A2: Dry-contact or relay outputs, depending on system setup.
Q3: Does the board include diagnostics?
A3: Yes, it continuously monitors output status, wiring integrity, and overall board health.
Q4: How is the board integrated with the control system?
A4: It connects via the Mark VI/VIe backplane to turbine protection modules.
Q5: Can it operate reliably in noisy electrical environments?
A5: Yes, channel isolation and filtering ensure proper operation under industrial electrical noise conditions.
Q6: Are the outputs suitable for critical turbine trip functions?
A6: Yes, they are specifically designed for fast and dependable trip actuation.
Q7: Can this board be used in redundant configurations?
A7: This model is intended for simplex primary trip outputs; redundant setups require other board variants.
Q8: Can field wiring be preserved during board replacement?
A8: Yes, removable terminal blocks allow the board to be replaced without disconnecting field wiring.
