Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | IS200TTURH1BED |
| Manufacturer | GE (General Electric) |
| Series | Mark VI Speedtronic™ |
| Functional Acronym | TTUR |

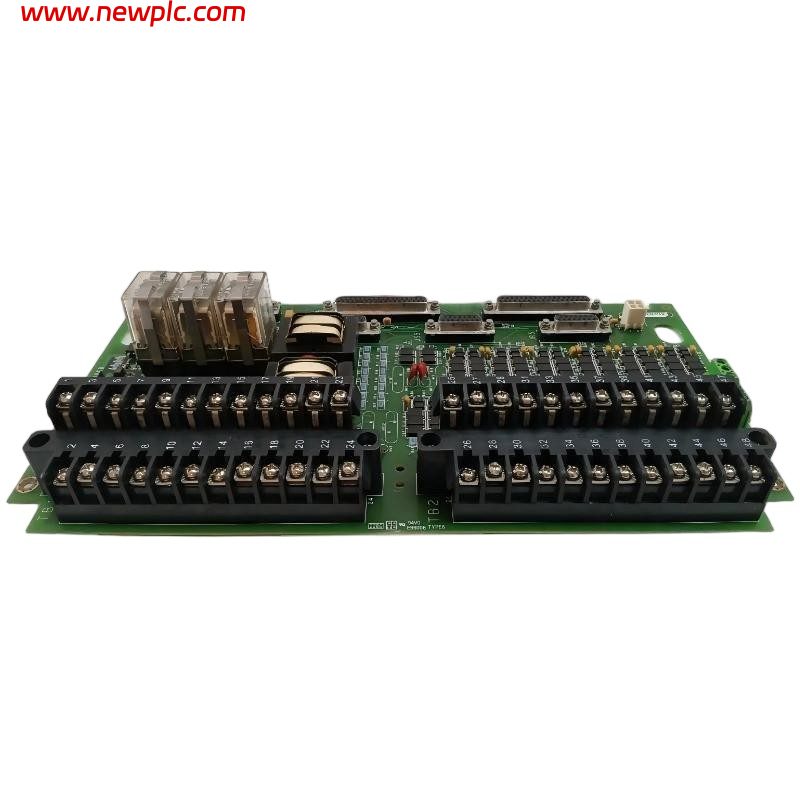

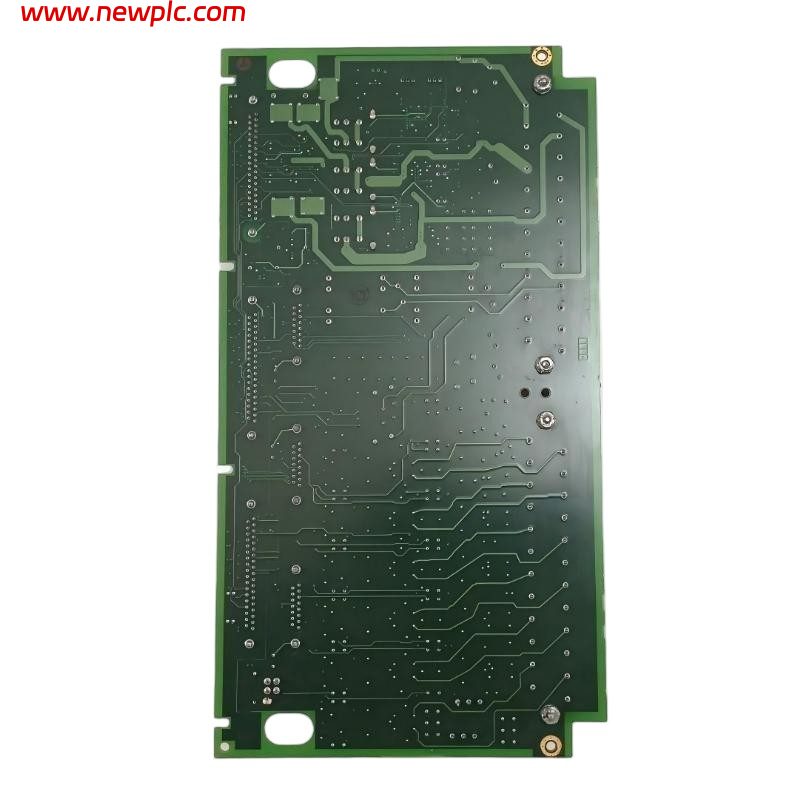

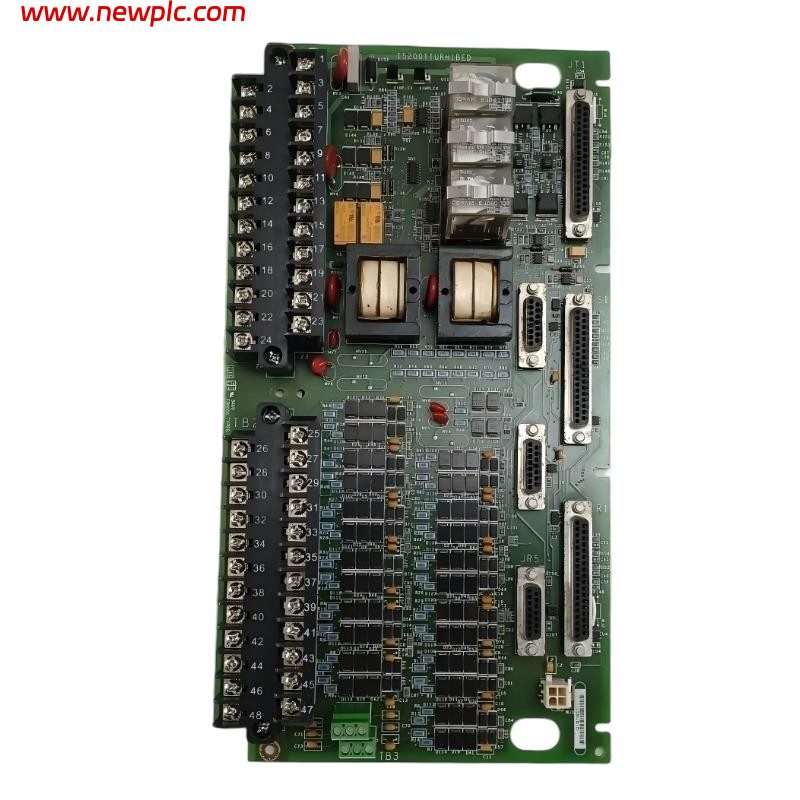

| Product Type | Primary Turbine Protection Input Terminal Board |
| Function | Turbine speed sensing, generator synchronizing, shaft voltage/current monitoring, and protection signal interface |
| Compatible Processor | VTUR Turbine Protection Processor Board |
| Speed Inputs | Up to 12 passive Magnetic Pickup (MPU) inputs |
| MPU Frequency Range | 2 Hz to 20 kHz |
| MPU Sensitivity | 27 mV peak |
| Measurement Accuracy | ±0.05% of reading |
| Generator Synchronizing | Generator and bus PT voltage inputs |
| Breaker Output | 125 VDC output for main breaker (52G) closing circuit |
| Shaft Monitoring | Shaft voltage and shaft current inputs |
| System Architecture | Simplex and TMR (Triple Modular Redundant) |
| Isolation | 1500 Vrms PT input isolation |
| Terminal Blocks | 2 removable terminal blocks (24 terminals each) |
| Maximum Wire Size | #12 AWG |
| Operating Temperature | -30°C to +65°C |
| Mounting Type | Control cabinet terminal board |
| Dimensions (H × W) | 330 × 178 mm |
| Weight | Approximately 0.8–1.1 kg |
FAQ
FAQ
Q1: What is the main function of IS200TTURH1BED?
It provides turbine protection inputs, speed sensing, synchronizing signals, and shaft monitoring for the Mark VI system.
Q2: How many speed sensors can be connected?
Up to 12 passive magnetic pickup (MPU) sensors.
Q3: What is the speed input frequency range?
The board supports pulse rates from 2 Hz to 20 kHz.
Q4: Does it support TMR systems?
Yes, it supports both Simplex and Triple Modular Redundant (TMR) configurations.
Q5: What synchronizing functions are included?
It processes generator voltage and bus voltage signals and provides a 125 VDC breaker closing output for automatic synchronizing.
Q6: Can it monitor shaft conditions?
Yes, it supports shaft voltage and shaft current measurement for turbine condition monitoring.
Q7: What are the dimensions of IS200TTURH1BED?
Approximately 330 × 178 mm (13 × 7 inches).
Q8: What is the weight of IS200TTURH1BED?
Typically 0.8–1.1 kg, depending on revision and installed hardware.
