Technical Specifications
| Parameter | Description |
|---|---|

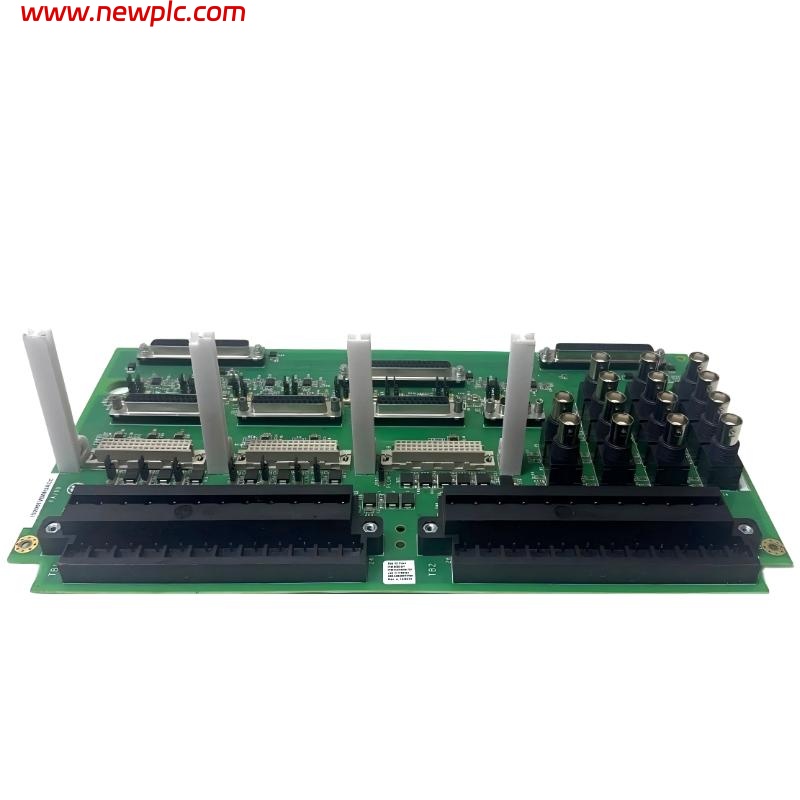

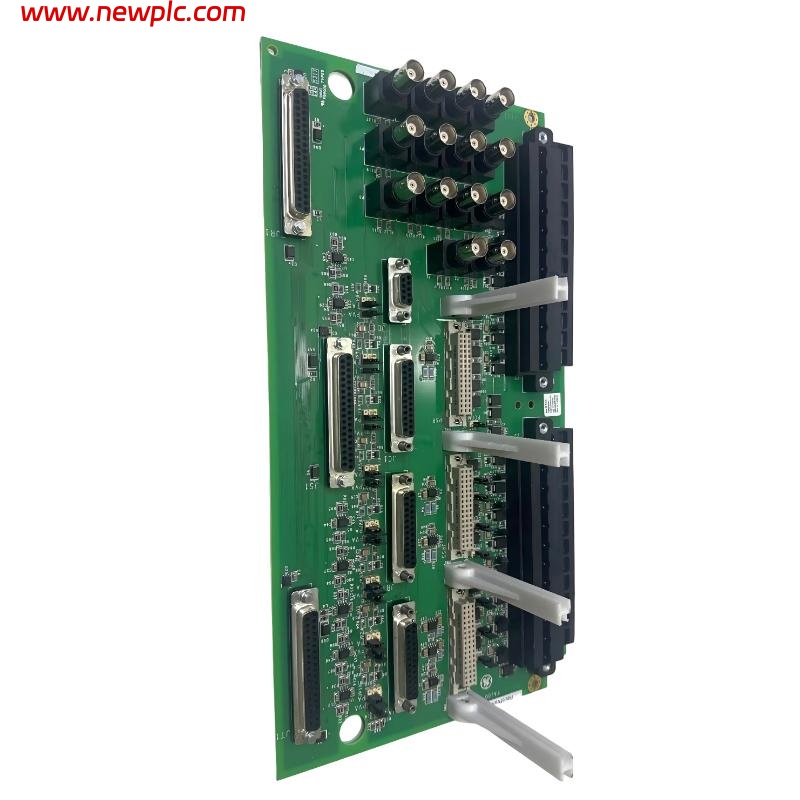

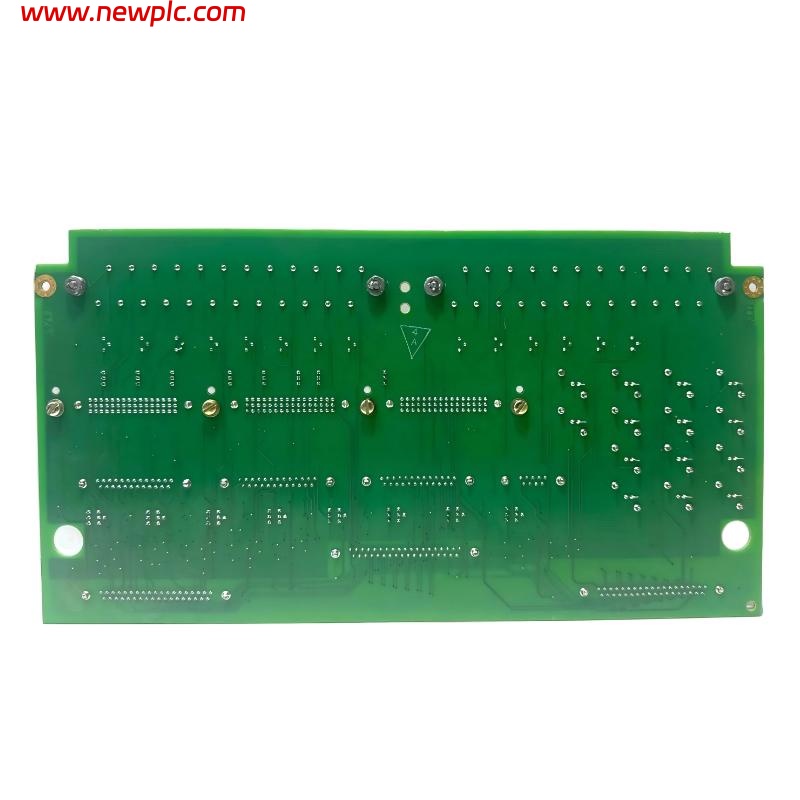

| Model | GE IS200TVBAH2A Vibration Input Terminal Board |
| Function | Provides vibration monitoring input interface for Mark VI/VIe turbine control systems |
| Input Channels | Multiple channels for analog vibration sensors (e.g., velocity, acceleration, displacement) |
| Signal Types | Supports standard industrial vibration sensor signals (typically 4–20 mA or voltage inputs) |
| Signal Conditioning | Includes filtering, amplification, and noise suppression for accurate measurements |
| Isolation | Channel-to-channel and channel-to-ground isolation to reduce electrical interference |
| Diagnostics | Monitors sensor integrity, signal quality, and wiring status |
| Communication | Interfaces with Mark VI/VIe vibration monitoring modules via backplane |
| Operating Voltage | Typically 24 VDC supplied by the turbine control system |
| Mounting | Panel or rack-mounted within turbine control cabinets |
| Dimensions | 250 × 150 × 50 mm |
| Weight | 0.8 kg |
FAQ
FAQ
Q1: What is the main purpose of the IS200TVBAH2A board?
A1: It collects and conditions vibration sensor signals for turbine monitoring and protection.
Q2: What types of vibration signals are supported?
A2: Standard industrial signals from sensors such as velocity, acceleration, or displacement, typically 4–20 mA or voltage outputs.
Q3: How does the board ensure accurate vibration readings?
A3: Through filtering, signal amplification, and isolation to reduce noise and maintain signal integrity.
Q4: Does the board provide diagnostic capabilities?
A4: Yes, it monitors sensor connections, signal quality, and wiring integrity.
Q5: How is the board connected to the control system?
A5: It interfaces via the Mark VI/VIe backplane with associated vibration monitoring modules.
Q6: Can it operate in electrically noisy environments?
A6: Yes, isolation and signal conditioning ensure reliable operation in turbine and industrial environments.
Q7: Is the board suitable for critical turbine protection monitoring?
A7: Yes, it provides reliable vibration input for trip logic and condition monitoring.
Q8: Can the board be replaced without disconnecting sensors?
A8: Yes, removable terminal blocks allow replacement while maintaining sensor wiring connections.
