Technical Specifications
| Parameter | Description |
|---|---|

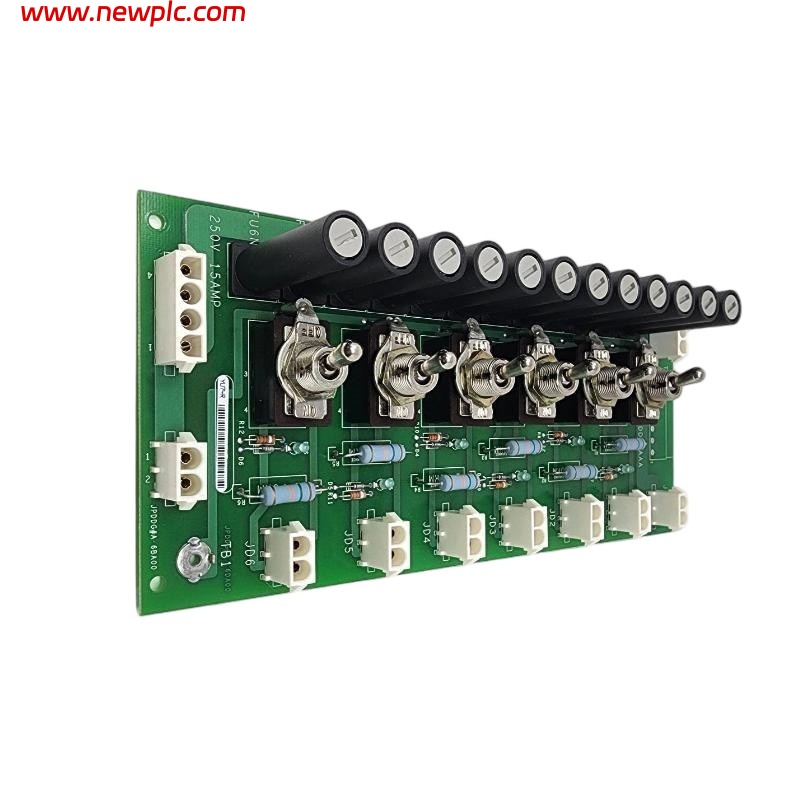

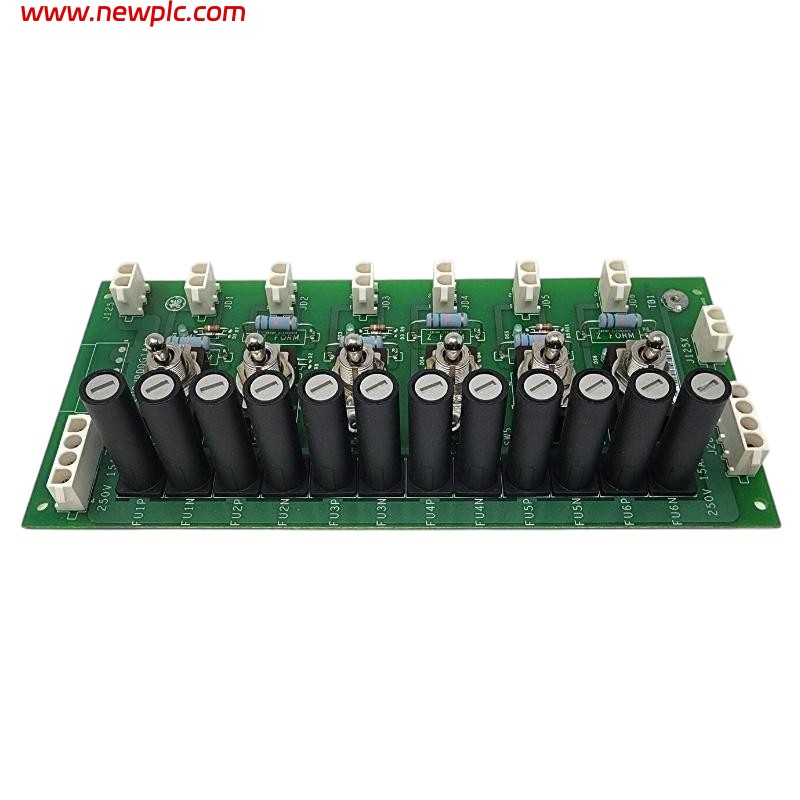

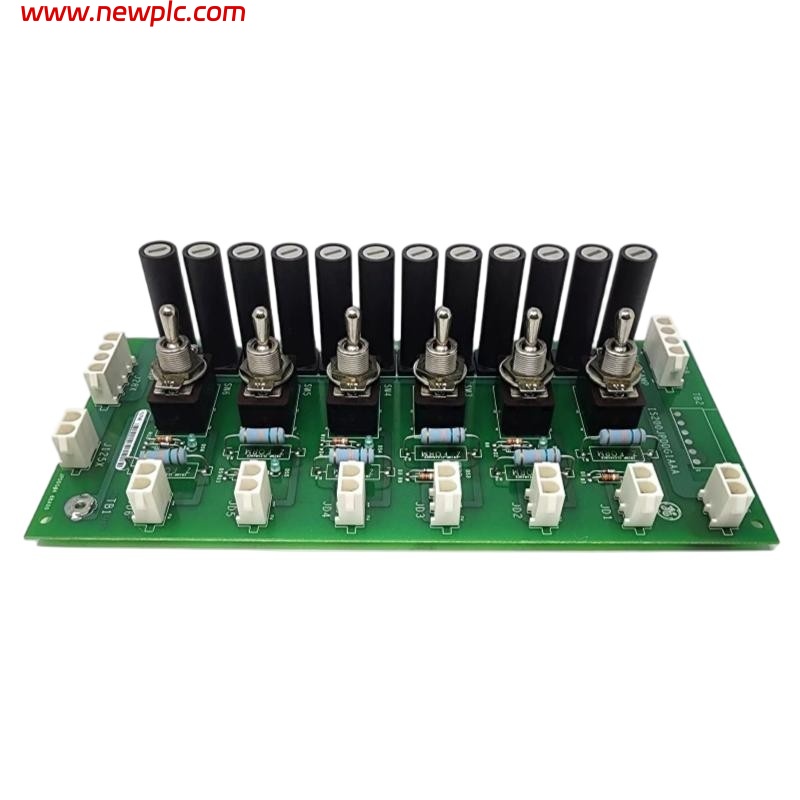

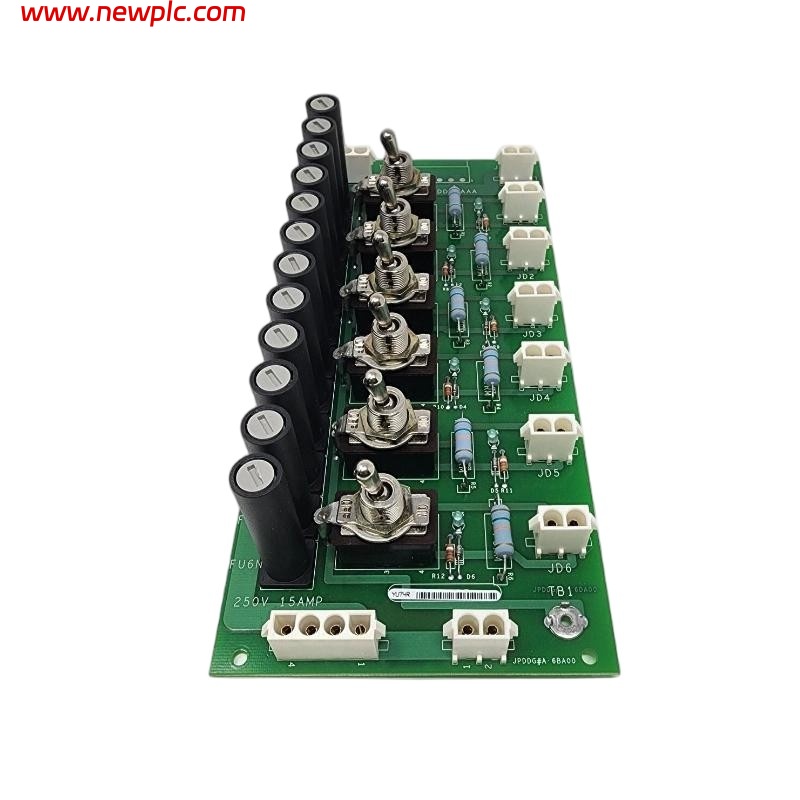

| Product Model | GE IS200UPDCG1A |
| Product Type | Power Distribution / DC Power Control Board |
| Series | Mark VI / IS200 Speedtronic turbine control |
| Function | DC power distribution, control logic, and internal bus power interface |
| Rated Supply Voltage | Typically 24 V DC backplane power (standard in IS200 systems) |
| Power Routing | Distributes DC power to CPU, I/O and other sub‑modules |
| Protection Features | Reverse polarity, overcurrent isolation (expected) |
| Communication/Bus | Standard GE backplane interface |
| Operating Temperature | Approx. –30 °C to +65 °C (industrial spec) |
| Storage Temperature | Approx. –40 °C to +85 °C |
| Relative Humidity | 5% to 95% non‑condensing |
| Mounting Method | Rack or cabinet backplane board slot |
| Dimensions (Approx.) | 170 mm × 100 mm × 30 mm (typical board) |
| Weight | ~0.5 kg (approx typical board) |
| Typical Application | DC power distribution and backplane interface in turbine control cabinets (Mark VI/IS200) |
FAQ
FAQ
Q1. What is the GE IS200UPDCG1A used for?
It is a DC power distribution / bus control board in the GE Mark VI / IS200 turbine control system, distributing backplane power to other modules.
Q2. Which systems is this module compatible with?
It is intended for GE Mark VI or IS200 series Speedtronic turbine control cabinets.
Q3. What power does it handle?
It typically distributes low‑voltage DC (e.g., 24 V DC) to system modules; it does not directly drive high‑power loads.
Q4. How is it mounted?
The board is installed via backplane or rack mounting inside a control cabinet.
Q5. Does the IS200UPDCG1A include protection features?
Common protections (reverse polarity, overcurrent/short circuit isolation) are typically part of power management boards in this series.
Q6. What are the approximate dimensions?
Typical control boards in this class measure about 170 mm × 100 mm × 30 mm (board only).
Q7. How much does it weigh?
These boards typically weigh around 0.5 kg.
Q8. What environments can it operate in?
It is designed for industrial control environments with standard operating ranges (–30 °C to +65 °C, 5–95% humidity).
