Technical Specifications
| Parameter | Description |
|---|---|

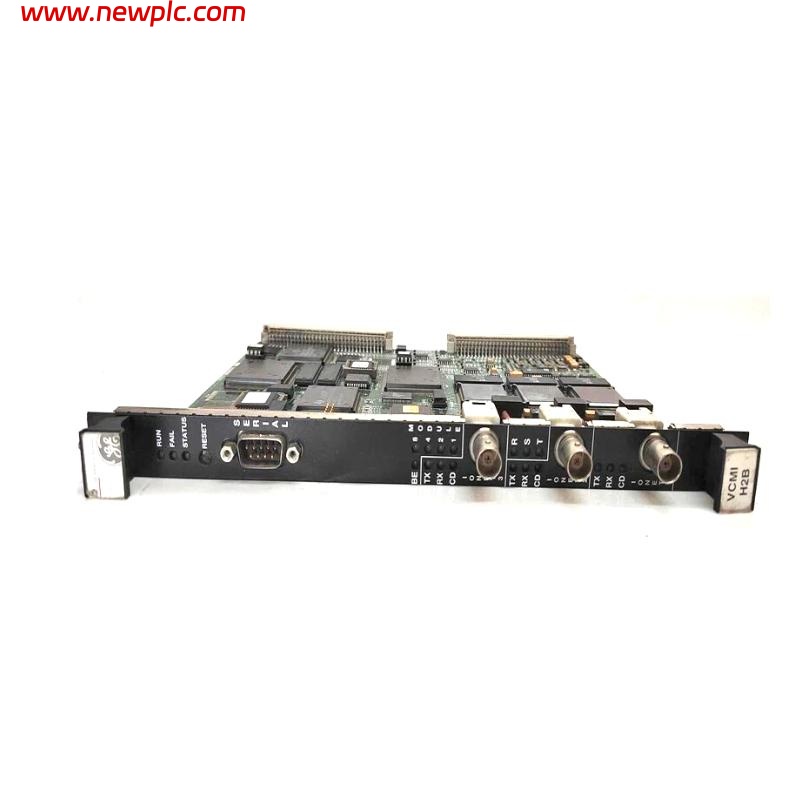

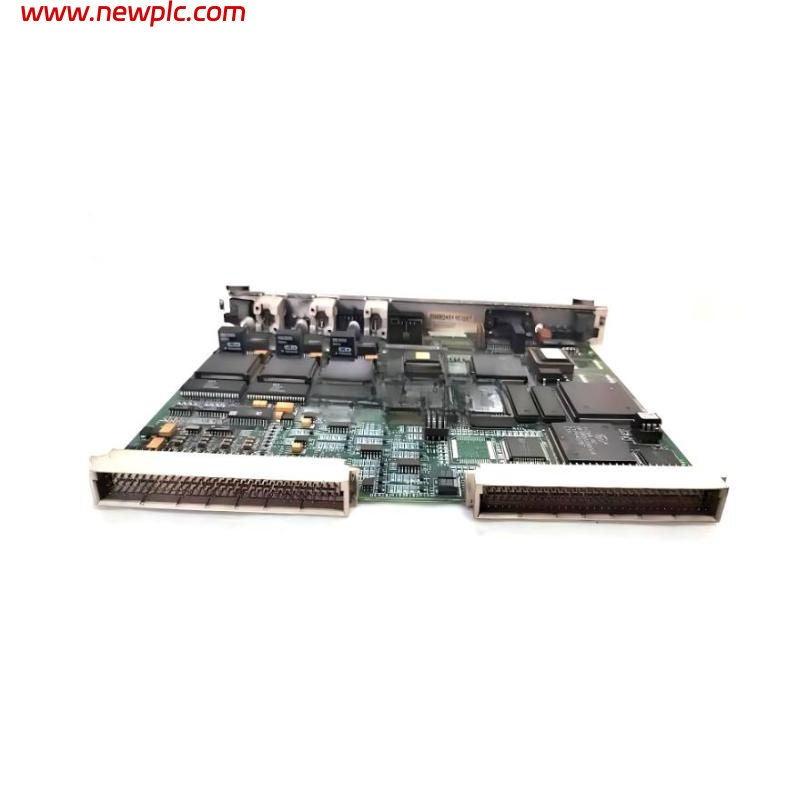

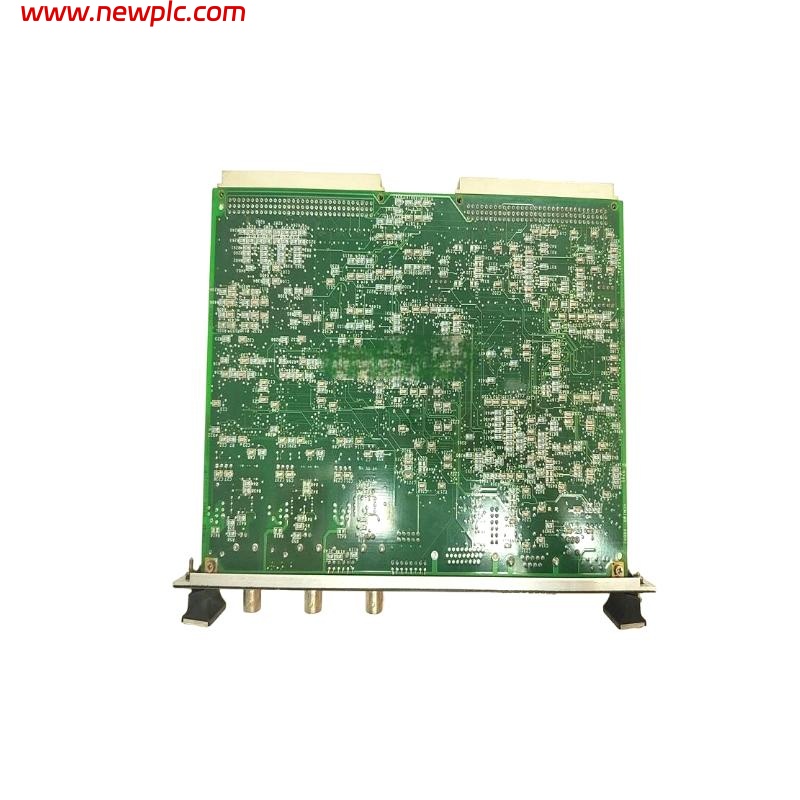

| Product Model | IS200VCMIH2B |
| Manufacturer | General Electric (GE) |
| Product Type | VME Bus Master Controller / Communications Interface Board |
| Series / System Compatibility | GE Mark VI Speedtronic turbine control system |
| Functional Role | Master communication controller on VME bus; manages data exchange between control processors, I/O cards, and communication networks |
| Communication Protocol | IONet networking (Ethernet-based proprietary bus) |
| Backplane Interface | VME bus edge connector for rack mounting |
| External Ports | IONet Ethernet connectors (1 for simplex, 3 for TMR systems), serial RS-232 port, status LEDs, reset switch |
| Processor | Texas Instruments TMS320C32 32-bit DSP |
| Memory | SRAM and flash memory (dual-port RAM, SRAM, flash for firmware) |
| Redundancy Support | Simplex or Triple Modular Redundancy (TMR) configurations |
| Operating Temperature | Typically 0 °C to ~60 °C (industrial control environment) |
| Storage Temperature | –40 °C to 85 °C |
| Relative Humidity | 5%–95% non-condensing |
| Power Requirement | 24 V DC rack-supplied |
| Typical Dimensions | Approx. 18.6 cm × 26.1 cm × 2 cm |
| Weight | Approx. 0.34 kg |
| Mounting | Slides into Mark VI VME rack slot |
FAQ
FAQ
Q1. What is the IS200VCMIH2B board?
It is the VME bus master controller and communications interface board used in GE Mark VI turbine control systems to coordinate data flow between controllers and I/O modules.
Q2. What network protocol does this board use?
It uses the proprietary IONet Ethernet-based communication network to exchange data with other modules.
Q3. What versions are available for redundancy?
It can be used in simplex (single port) or triple modular redundancy (TMR, three ports) system configurations.
Q4. Where does this board install in the control rack?
It installs in a VME bus slot in the Mark VI turbine control cabinet.
Q5. What processors does it use?
It uses a Texas Instruments TMS320C32 digital signal processor and embedded memory for communications tasks.
Q6. What happens if this board fails?
If it fails, communication between control logic and I/O modules can be disrupted, potentially affecting turbine control and monitoring.
Q7. What environmental conditions can it operate in?
It is designed for industrial environments with operating temperatures roughly 0 °C to ~60 °C and standard humidity ranges.
Q8. Does it include status indicators?
Yes, it typically includes onboard LED indicators and a reset switch on the front faceplate for status and diagnostics.
