Technical Specifications
| Parameter | Description |
|---|---|

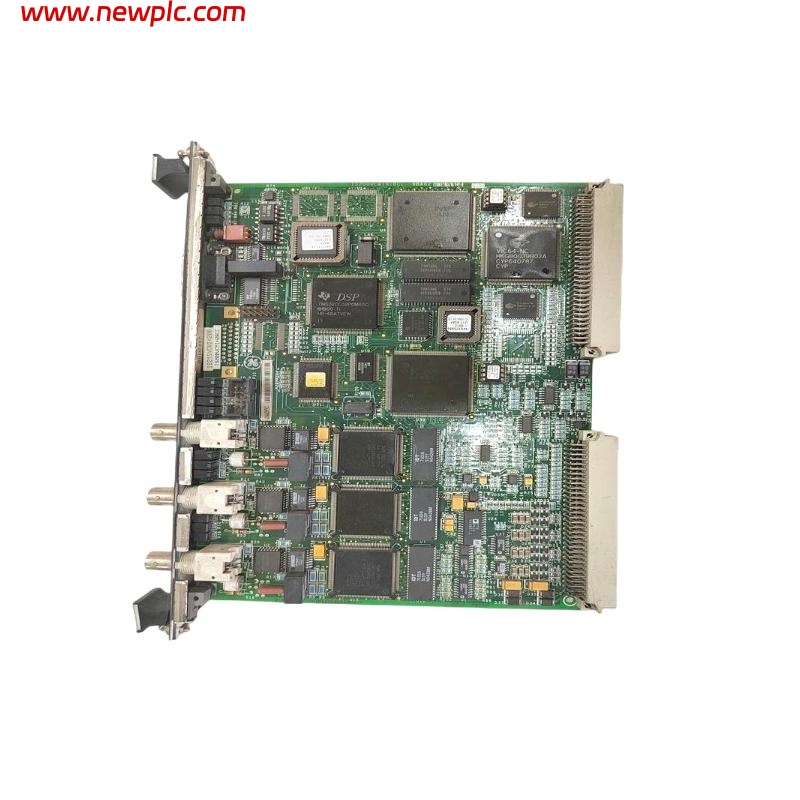

| Product Model | IS200VCMIH2BEE |
| Manufacturer | General Electric (GE) |
| Product Type | Master Communication Controller Board |
| Series / System Compatibility | GE Mark VI Speedtronic turbine control system |
| Functional Role | Master communication controller on the Unit Data Highway (UDH); manages data exchange between control processors, I/O cards, and remote racks via fiber-optic Ethernet (IONet) |
| Communication Protocol | IONet with Triple Modular Redundancy (TMR) (three IONet ports) |
| Fault Tolerance | SIFT voting (software-implemented fault tolerance) for redundancy and data integrity |

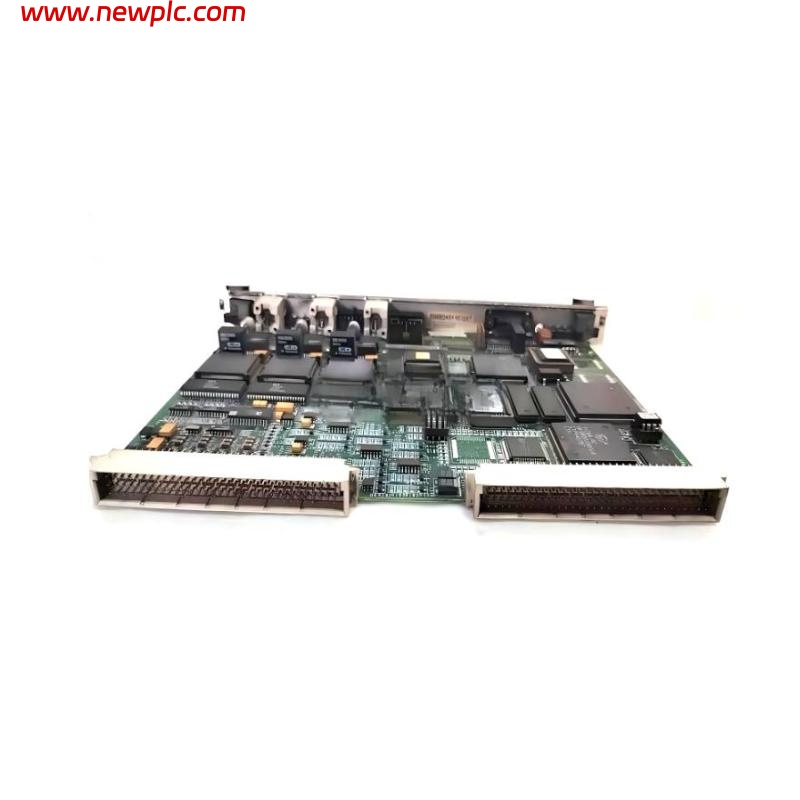

| Backplane Interface | 6U VME rack (card-edge connector) |
| Processor | Digital signal processing capability (e.g., 32-bit DSP; typical for this family) |
| Status Indicators | Multiple groups of LED indicators on the front faceplate |

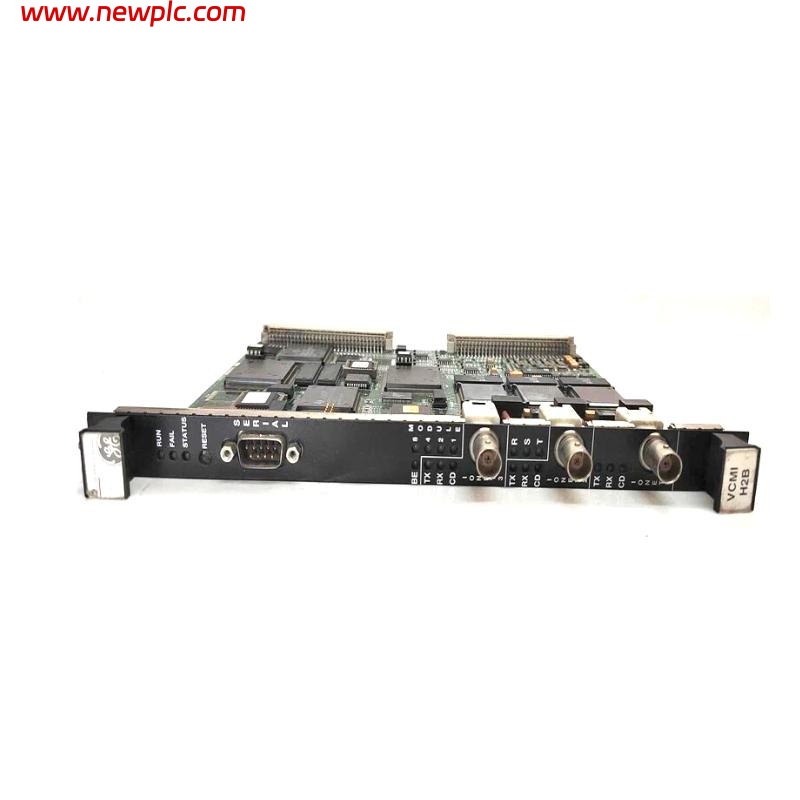

| Front Ports | Three IONet ports, serial port, reset button |
| Operating Temperature | Approx. –30 °C to +65 °C (industrial grade) |
| Relative Humidity | 5 %–95 % non-condensing |
| Power Supply | VME rack provided (standard control rack supply) |
| Dimensions | Approx. 168 mm × 150 mm × 55 mm (standard VME card form factor) |
| Weight | Approx. 0.3–0.4 kg |
| Mounting | Installs in Mark VI VME control rack slot |
FAQ
FAQ
Q1. What is the IS200VCMIH2BEE?
It’s a master communication controller board in the GE Mark VI Speedtronic turbine control system that manages high-speed data exchange between controllers and I/O modules.
Q2. Which communication network does this board use?
It uses IONet (fiber-optic Ethernet) with Triple Modular Redundancy (TMR) for robust, redundant communication throughout the control system.
Q3. What does TMR mean on this board?
TMR stands for Triple Modular Redundancy — three independent communication paths that vote for correct data, improving reliability and fault tolerance.
Q4. What boards/interfaces connect to the IS200VCMIH2BEE?
It links to other modules in the Mark VI rack (such as analog/digital I/O boards) and remote racks via IONet.
Q5. What is SIFT voting?
SIFT (Software Implemented Fault Tolerance) compares multiple communication paths to ensure data integrity and reduce failures.
Q6. How does the board physically install?
It mounts in a 6U VME backplane slot inside the Mark VI control rack.
Q7. What environmental conditions can it operate in?
It’s designed for industrial environments with operating temperatures from approx. -30 °C to +65 °C.
Q8. What happens if this board fails?
If the VCMI fails, communication between controllers and I/O modules can break, potentially disrupting turbine control and system monitoring.
