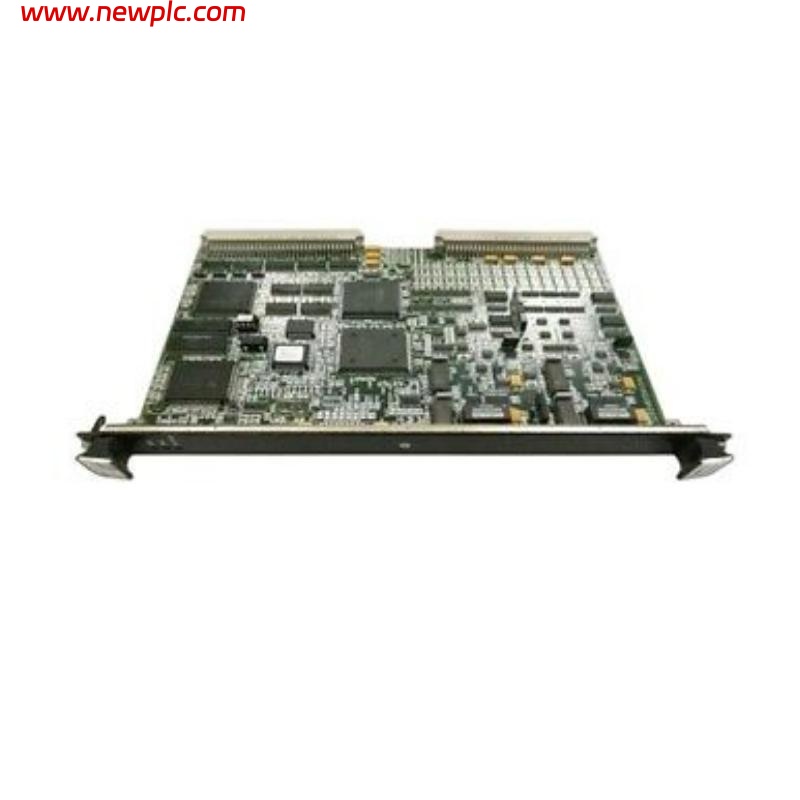

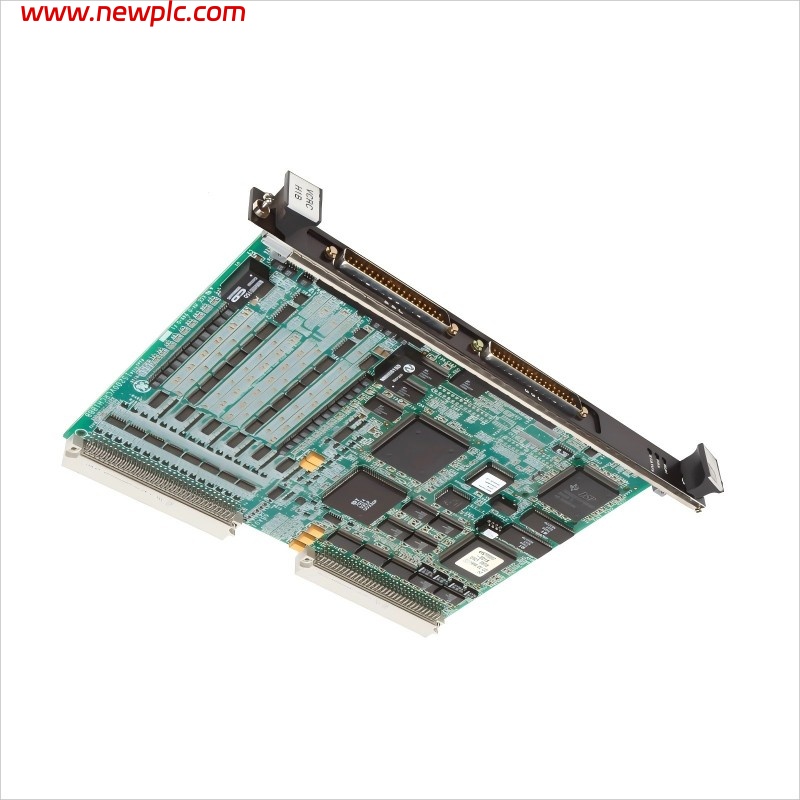

GE IS200VRTDH1DAB Resistance Temperature Detector (RTD) Input Module

FAQ

Q1. What is the IS200VRTDH1DAB used for?
It is an RTD input module that converts resistance temperature detector signals into digital temperature data for the GE Mark VI control system.

Q2. Which control system platform supports this module?
It integrates with the GE Speedtronic Mark VI turbine control system via the VME backplane.

Q3. How many temperature sensors can it monitor?
It supports up to 8–16 RTD channels depending on system configuration and installation.

Q4. What types of RTD sensors does it support?
It works with common RTD types such as PT100, PT1000, and Cu100 in three‑wire configurations.

Q5. How is the board powered?
The module is powered by a standard 24 V DC supply from the control rack.

Q6. Does the module provide any diagnostic feedback?
Yes, it has LED indicators for status, faults, and channel activity.

Q7. What environmental conditions can it operate in?
It is designed for industrial control environments with an operating range of roughly –20 °C to +65 °C and high humidity tolerance.

Q8. Can the IS200VRTDH1DAB detect open or shorted RTD sensors?
Yes, the board monitors RTD inputs and reports open or short circuits to prevent erroneous readings.

GE IS200VRTDH1DAB
