Technical Specifications
| Parameter | Specification |
|---|---|

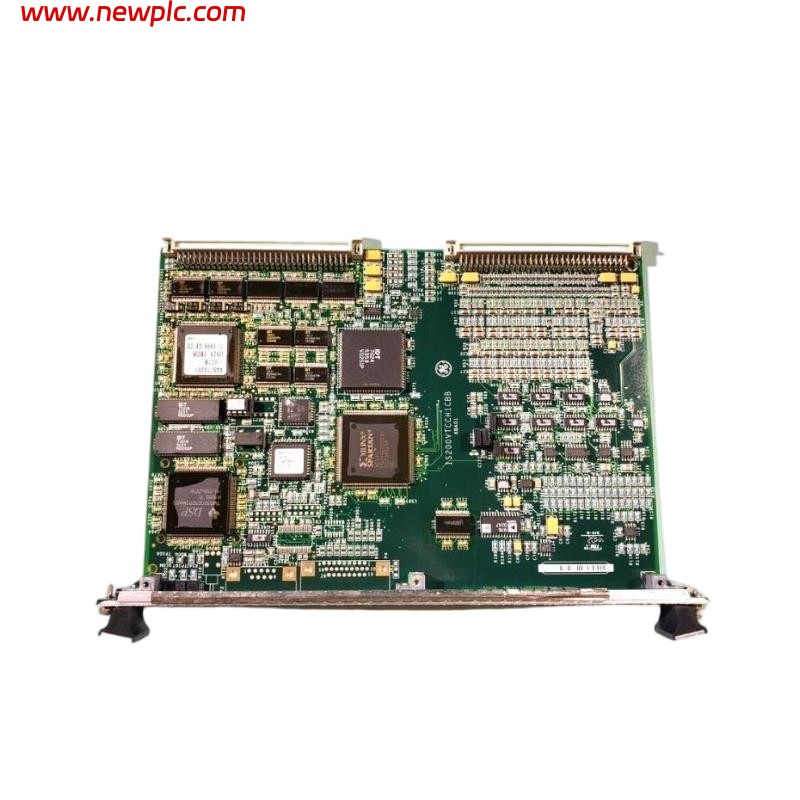

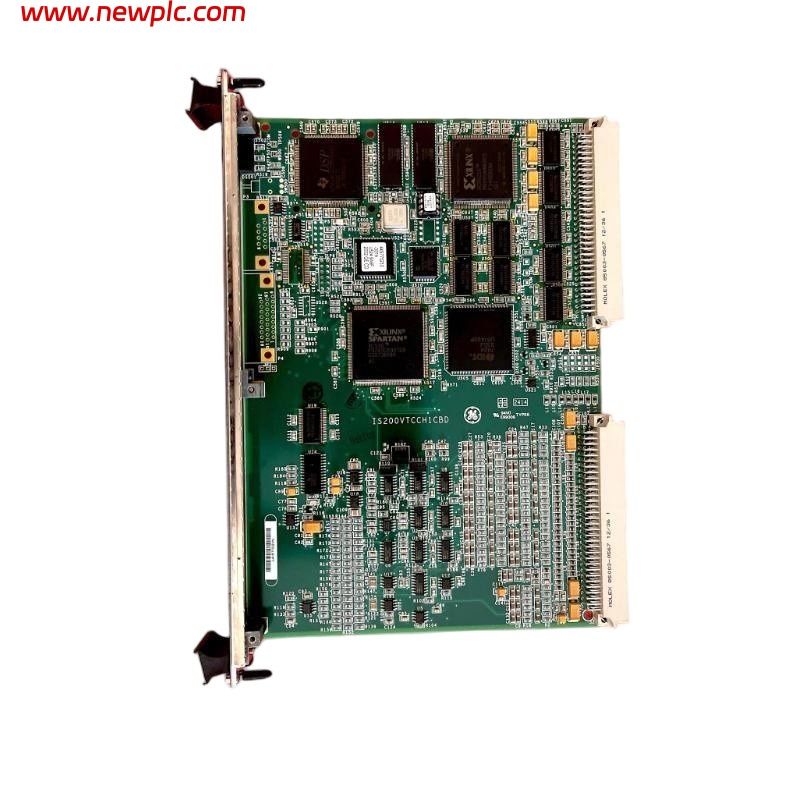

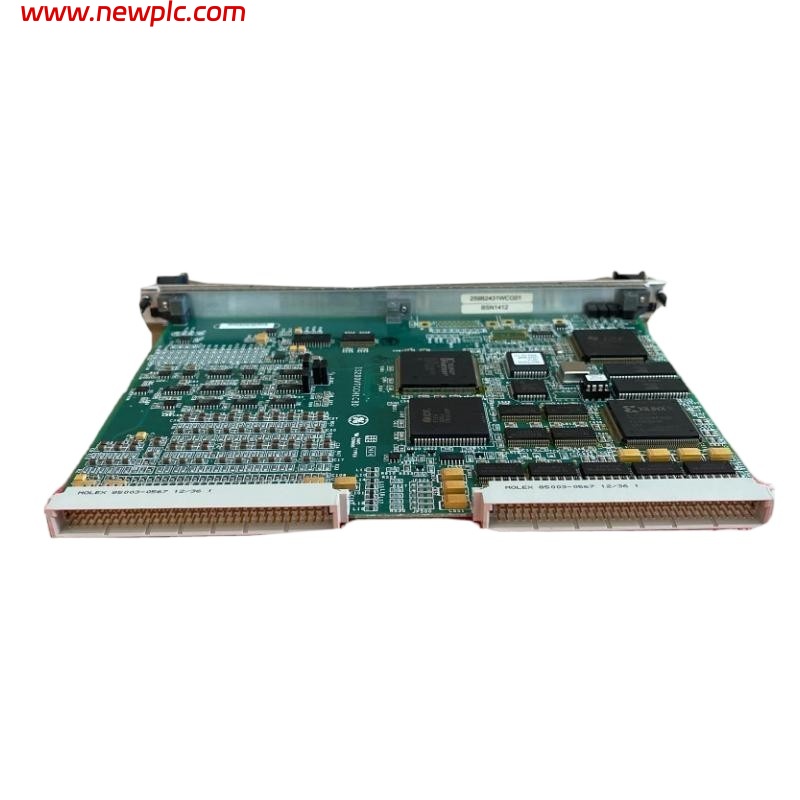

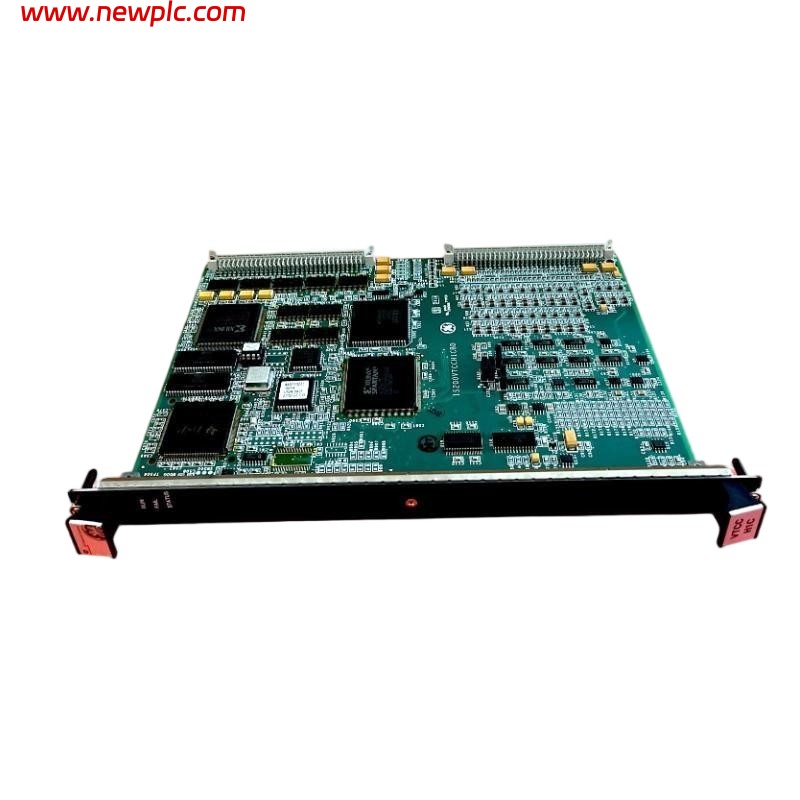

| Product Name | IS200VTCCH1C |
| Manufacturer | General Electric (GE) |
| Product Type | Thermocouple Input Interface Module |
| Application | Industrial automation and turbine control systems |
| Input Type | Thermocouple temperature signals |
| Supported Sensors | Common thermocouple types (e.g., Type J, K, T) |
| Number of Channels | Multi-channel thermocouple inputs |
| Measurement Function | Temperature acquisition and signal conditioning |
| Isolation | Electrical isolation between field inputs and system |
| Communication | Backplane communication with control processor |
| System Compatibility | Mark VI control systems |
| Installation | Rack-mounted via system backplane |
| Operating Temperature | –30 °C to +65 °C |
| Storage Temperature | –40 °C to +85 °C |
| Power Supply | Supplied through system backplane |
| Dimensions (W × H × D) | Approx. 160 mm × 120 mm × 35 mm |
| Weight | Approx. 0.7 kg |
FAQ
FAQ
Q1: What is the primary function of the IS200VTCCH1C?
It measures and processes thermocouple temperature signals from field devices.
Q2: Which types of thermocouples are supported?
It supports common industrial thermocouples such as Type J, K, and T.
Q3: Which control systems commonly use this module?
It is typically used in GE Mark VI industrial control platforms.
Q4: Does the module provide signal isolation?
Yes, it includes electrical isolation to protect the control system.
Q5: How is the IS200VTCCH1C installed?
The module is mounted on the system backplane inside the control cabinet.
Q6: Can the module be replaced while the system is running?
No, the system should be powered down before installation or removal.
Q7: Is the module suitable for continuous industrial use?
Yes, it is designed for long-term, reliable operation in industrial environments.
Q8: Are there size or weight considerations for installation?
The module has a standard form factor and moderate weight, making installation straightforward.
