Technical Specifications
| Item | Specification |
|---|---|

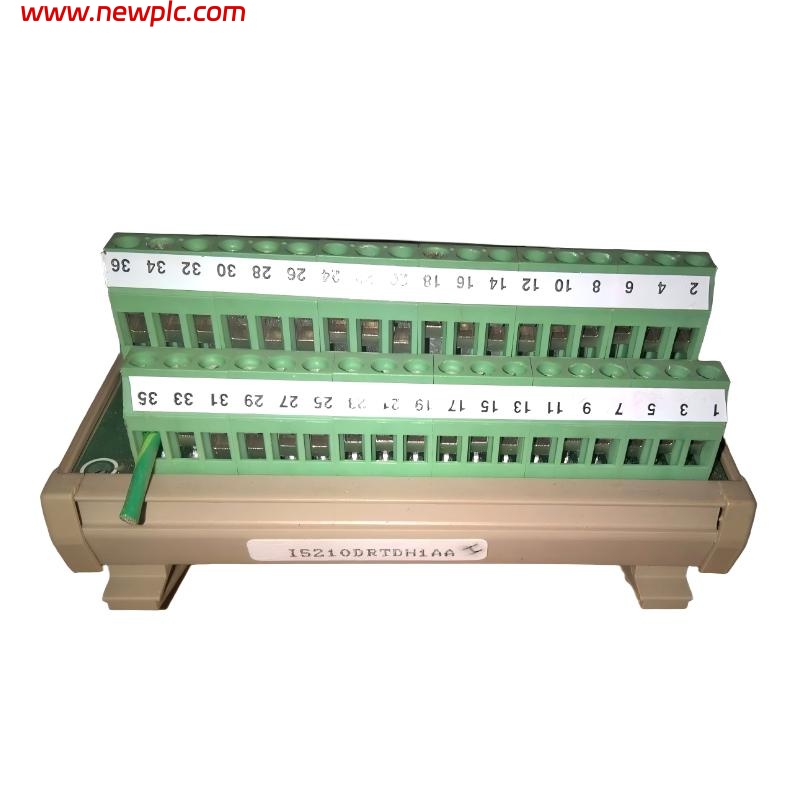

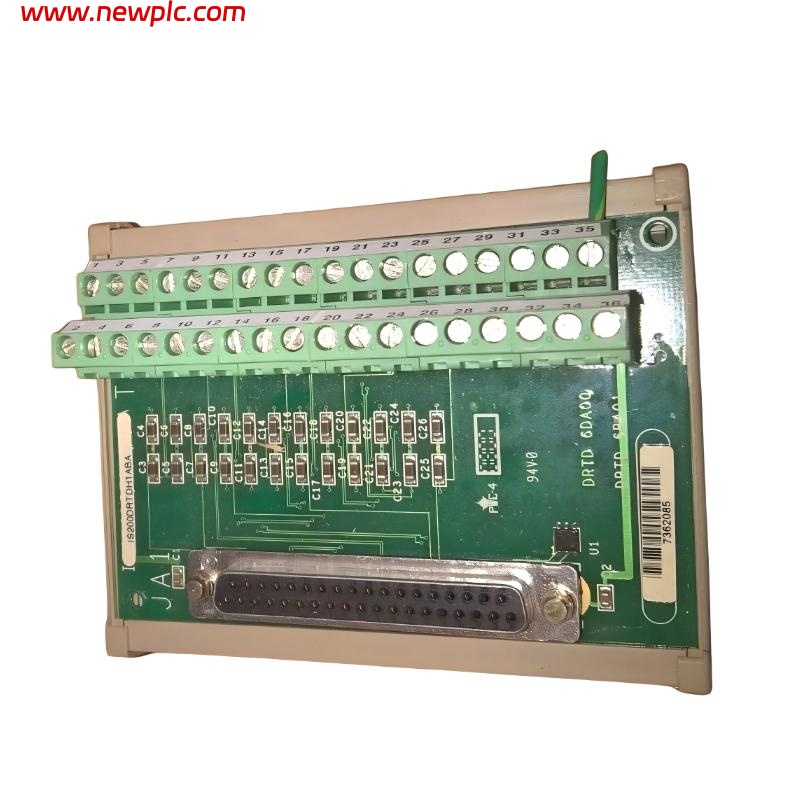

| Model | GE IS210DRTDH1A / IS200DRTDH1A |
| Product Type | RTD Terminal Board |
| Function | Interface between RTD sensors and turbine control system |
| Supported RTD Types | Pt100, Pt200, Pt500, Pt1000 |
| Wiring Method | 2-wire / 3-wire / 4-wire |
| Number of Channels | 12 |
| Input Signal Type | Resistance-based temperature input |
| Measurement Range | -200°C to +850°C (sensor dependent) |
| Accuracy | ±0.1% of full scale |
| Input Filtering | Hardware low-pass filtering |
| Isolation Type | Group isolation |
| Isolation Voltage | 1500 VAC |
| Excitation Current | 1 mA |
| Line Compensation | Automatic lead resistance compensation |
| Open Sensor Detection | Supported |
| Short Circuit Detection | Supported |
| Interface Type | Backplane connector |
| Mounting Method | Control rack slot |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% RH |
| PCB Material | FR-4 |
| Coating | Conformal coating |
| Dimensions (L × W × H) | 245 × 170 × 35 mm |
| Weight | 0.58 kg |
FAQ
FAQ
Q1: What RTD sensor types can be wired to this board?
A1: Platinum RTDs including Pt100, Pt200, Pt500 and Pt1000 are supported.
Q2: Can mixed wiring methods be used on one board?
A2: Yes, each channel can be independently configured for 2-wire, 3-wire or 4-wire connection.
Q3: How does the board compensate lead resistance?
A3: Automatic internal compensation minimizes temperature error caused by cable length.
Q4: How are RTD failures detected?
A4: Abnormal resistance levels trigger open or short circuit alarms in the controller.
Q5: What measures are taken against electrical noise?
A5: Input circuits include filtering to suppress interference and transient spikes.
Q6: Is signal linearization done on this board?
A6: No, the board outputs conditioned resistance values; conversion is done by the controller.
Q7: Can a single channel fault disturb other channels?
A7: No, group isolation prevents interference between input circuits.
Q8: Is field calibration required after installation?
A8: No calibration is necessary at the board level; configuration is handled in control software.
