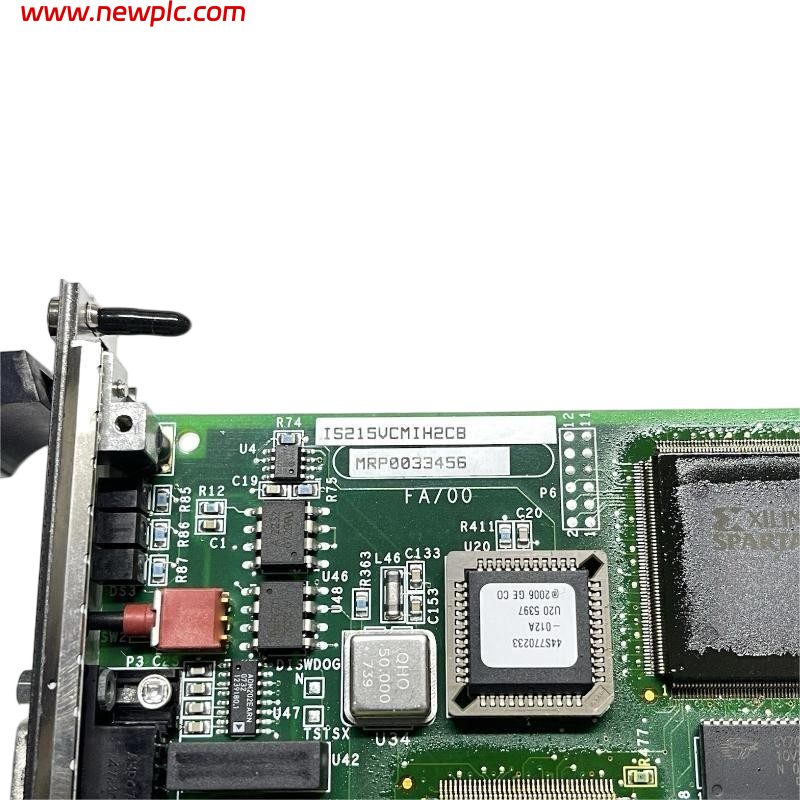

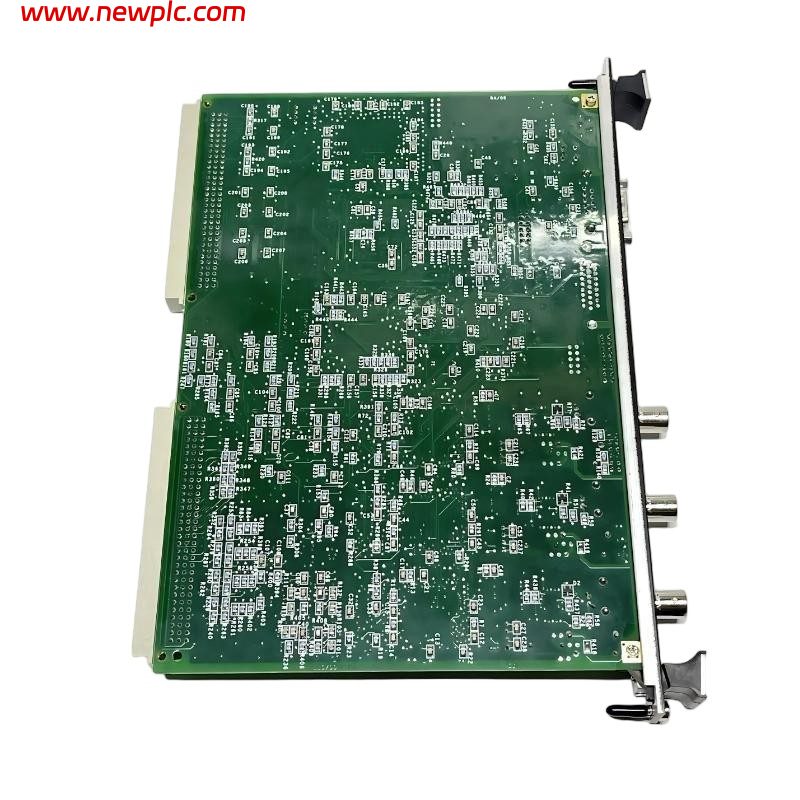

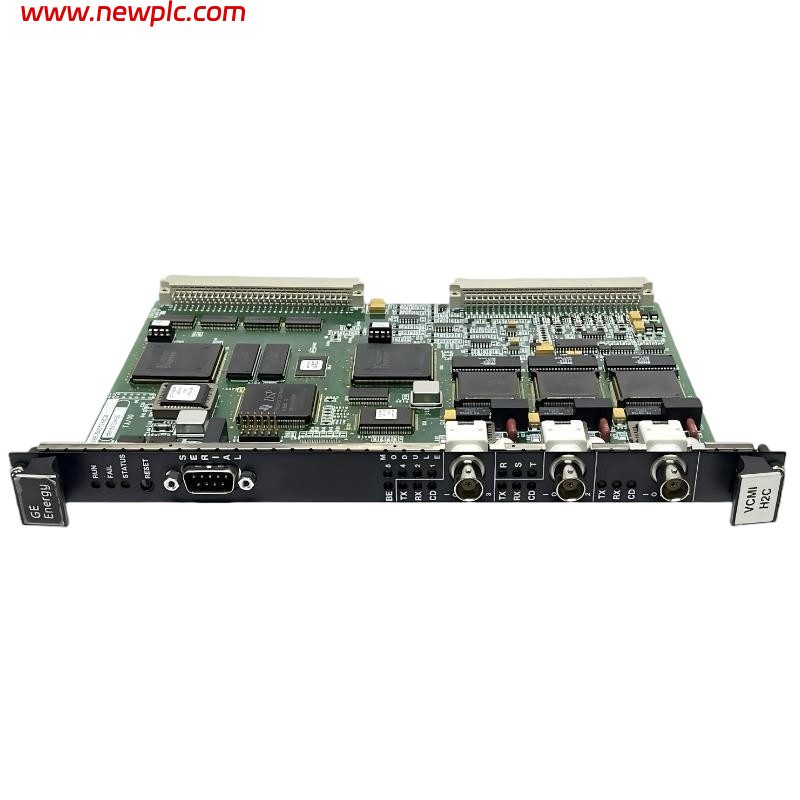

GE IS215VCMIH2CB VME Bus Master Controller / VME Communication Interface Board

FAQ

Q1: What is the GE IS215VCMIH2CB used for?
A: It is a VME Bus Master Controller used in GE Mark VI turbine control systems to coordinate communication between the controller, VME I/O boards and the IONet network.

Q2: What processor does the IS215VCMIH2CB use?
A: It uses a Texas Instruments TMS320C32 32-bit digital signal processor (DSP).

Q3: How many IONet ports does it have?
A: The H2 version provides 3 × 10Base2 Ethernet IONet ports with BNC connectors and a nominal 10 Mbps data rate.

Q4: What type of VME board is the IS215VCMIH2CB?
A: It is a 6U-high VME board with a board width of approximately 0.787 inches.

Q5: Is the IS215VCMIH2CB suitable for TMR systems?
A: Yes. The IS215VCMIH2CB is commonly specified for Triple Modular Redundant (TMR) Mark VI configurations.

Q6: What memory does the board have?
A: The VCMIH2 family includes 32 KB dual-port memory, 64K × 32 SRAM, and expanded flash memory; the VCMIH2C variant is listed with up to 4096K × 8 flash.

Q7: What power supplies does the board monitor?
A: It monitors +5 V, +12 V, +15 V and +28 V, including the corresponding negative rails where applicable.

Q8: What are the dimensions and weight of the IS215VCMIH2CB?
A: The board is approximately 233 × 312 mm in 6U VME format. Supplier-listed weights vary from about 0.5 kg to 1.2 kg, depending on whether the mounting hardware is included. For shipping calculations, approximately 1.5 kg is a reasonable planning figure.
