Technical Specifications
| Parameter | Specification |
|---|---|

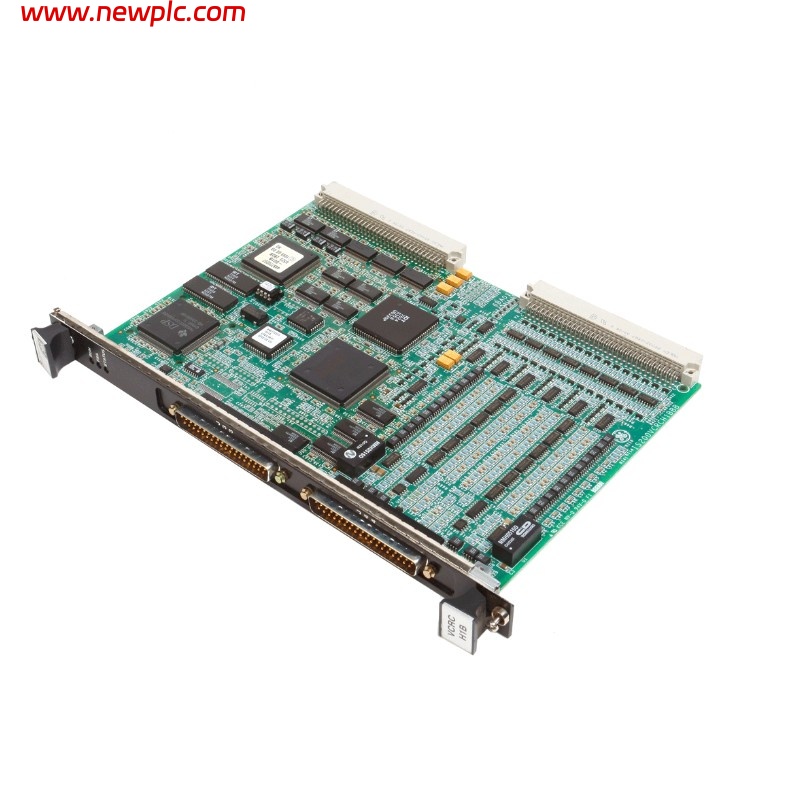

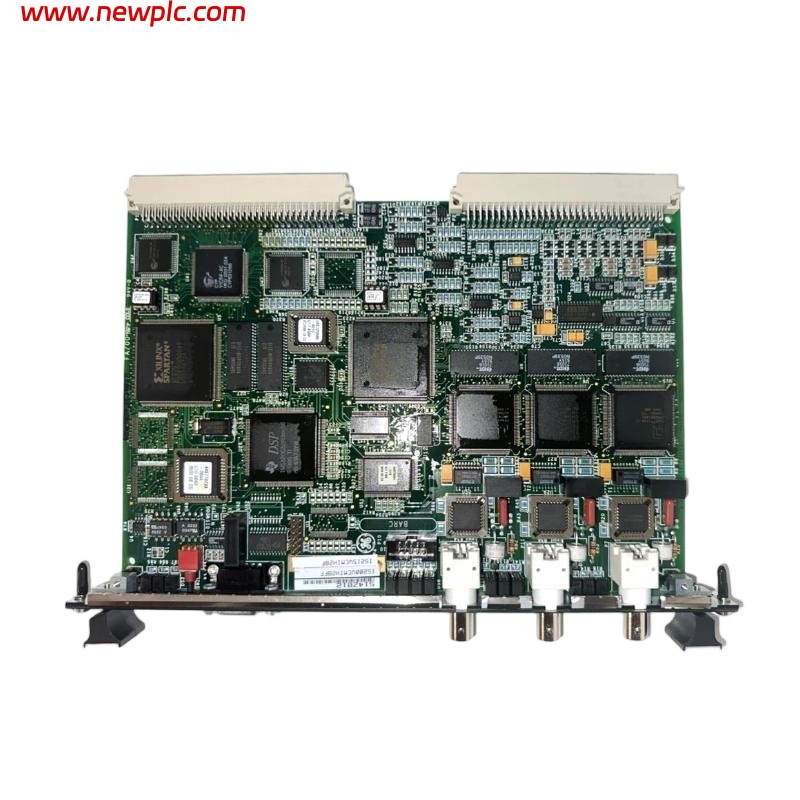

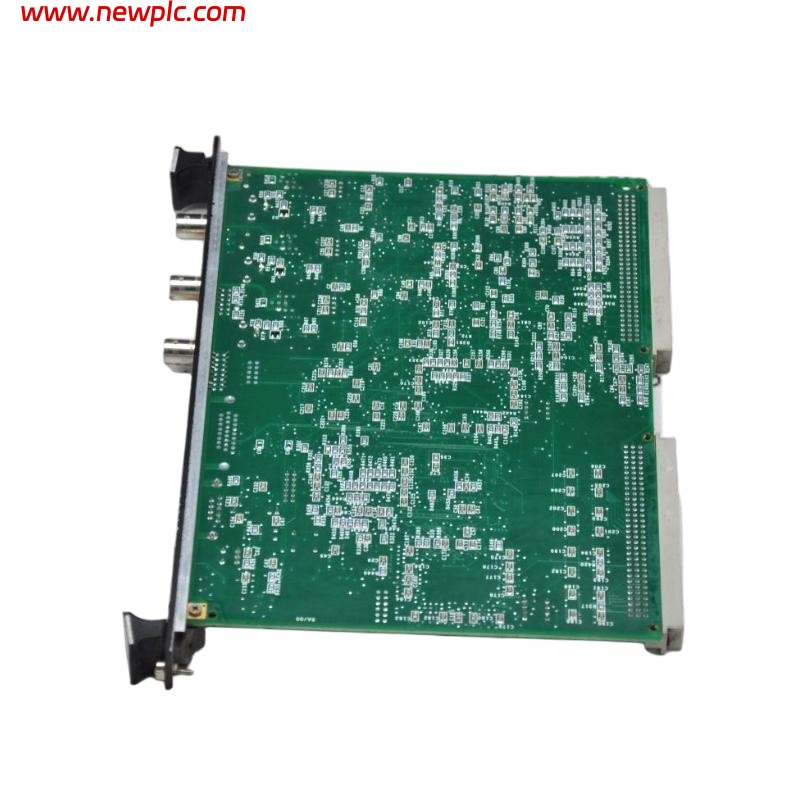

| Part Number | IS215VCMIH2CC |
| Product Type | VME Bus Master Controller / Communications Interface |
| Series | GE Mark VI / Speedtronic Control System |
| Manufacturer | General Electric (GE) |
| Functional Description | VME bus master controller that coordinates communication between the main controller, I/O boards, and IONet network in turbine/industrial control racks. |
| Processor | Texas Instruments 32‑bit digital signal processor (DSP) |
| Memory | Dual‑port SRAM with Flash memory for program/data storage |
| Communication Interfaces | IONet Ethernet ports and serial communication (typical for VCMI boards) |
| Operating Voltage | +5 V DC via VME backplane (typical for VME modules) |
| Operating Temperature | −30 °C to +65 °C (industrial range) |
| Storage Temperature | −40 °C to +85 °C (industrial range) |
| Dimensions (Board Only) | 210 mm × 188 mm × 50 mm (L × W × H) — standard 6U VME form factor (~2.1 cm × 18.8 cm × 26.2 cm) |
| Weight (Board Only) | ≈ 0.7 kg (≈ 700 g) |
| Board Format | 6U VME (0.787 in / 20 mm wide) |
| LED Indicators | Run, Fail, Status, Reset (typical) |
| Mounting | VME rack slot |
| PCB Protection | Conformal or industrial coating |
| Country of Origin | United States |
FAQ
FAQ
Q1: What is the IS215VCMIH2CC used for?
It is a VME bus master controller board that manages communication between the main controller and I/O modules in GE Mark VI turbine control racks.
Q2: What do the letters “VCMI” stand for?
VCMI stands for VME Communication Interface, indicating the board’s role as a communication master on the VME backplane.
Q3: What are the exact dimensions of the IS215VCMIH2CC?
The board measures about 210 mm × 188 mm × 50 mm (L × W × H), following the 6U VME form factor.
Q4: How much does the module weigh?
It weighs approximately 0.7 kg.
Q5: What communication interfaces are available?
It provides connections for IONet Ethernet and serial interfaces typical of VCMI board communications.
Q6: What is the operating temperature range?
It can operate from −30 °C to +65 °C, with storage to −40 °C to +85 °C.
Q7: What processor does this board use?
It uses a 32‑bit Texas Instruments DSP for control and communication tasks.
Q8: Where is the IS215VCMIH2CC manufactured?
This board is typically manufactured in the United States.
