Technical Specifications
| Parameter | Description |
|---|---|

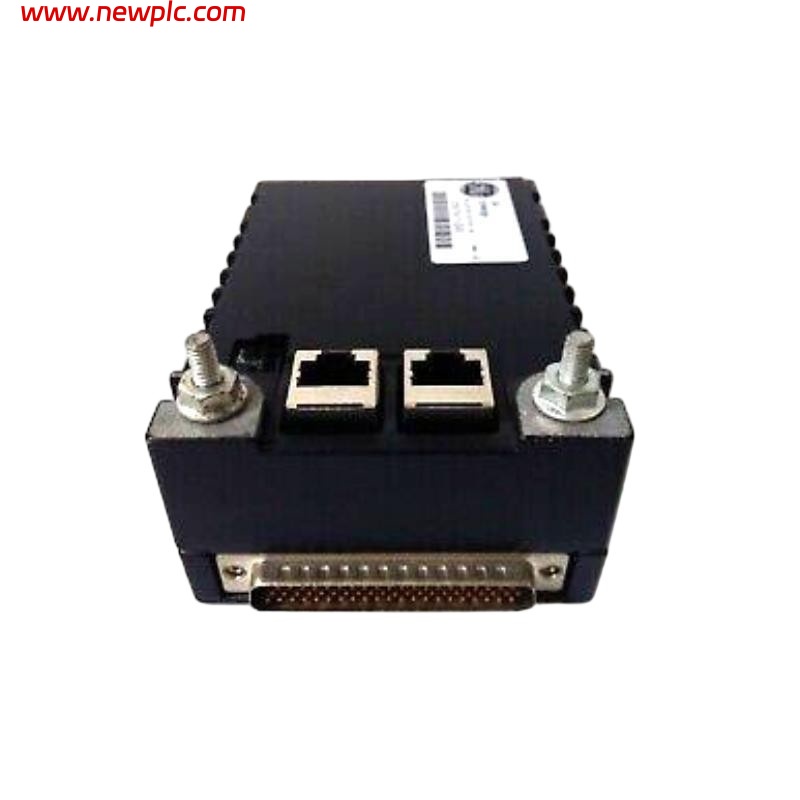

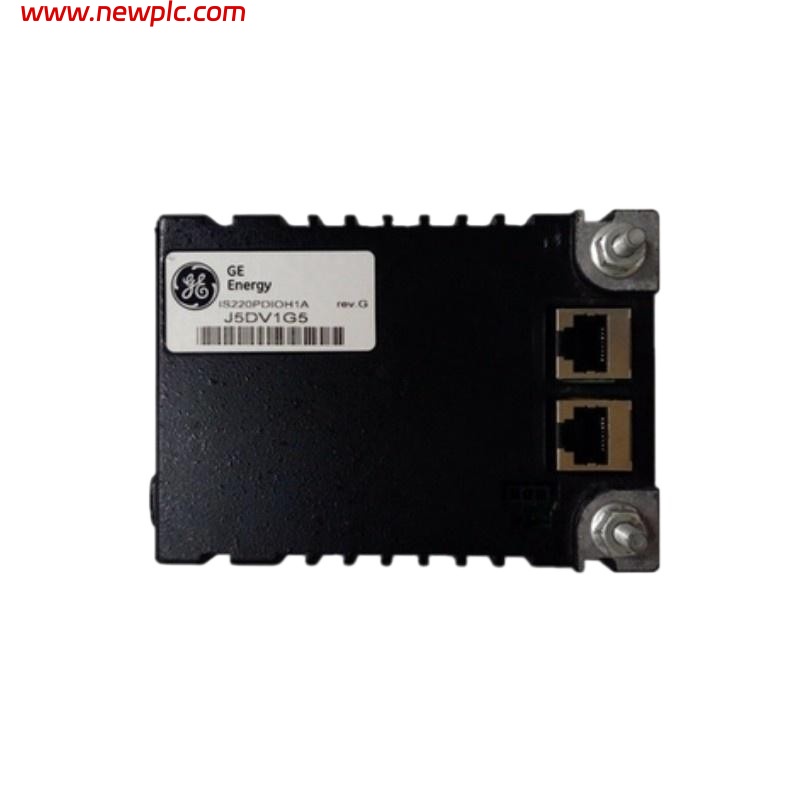

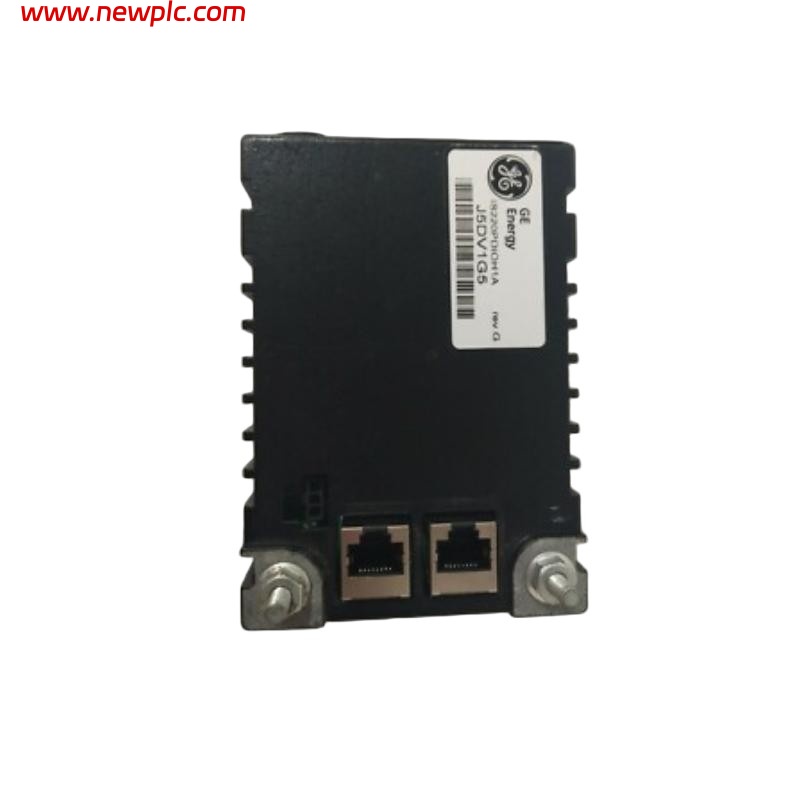

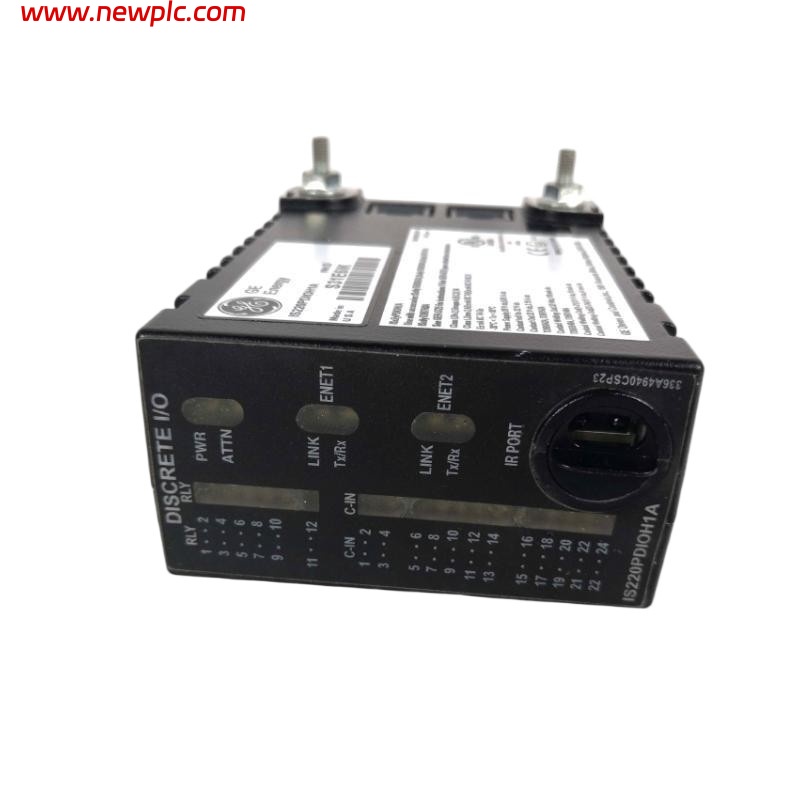

| Product Model | GE IS220PDIOS1A |
| Product Type | Discrete Input/Output Module |
| Series | Mark VIe |
| Input Channels | 16 discrete input channels |
| Output Channels | 16 discrete output channels |
| Input Signal Type | 24 V DC discrete input |
| Output Signal Type | Relay/contact output, 24–125 V DC / 24–250 V AC |
| Input Voltage Range | 18–32 V DC |
| Output Current Rating | Up to 2 A per channel |
| Logic Detection | ON/OFF status sensing |
| Electrical Isolation | Optical isolation for inputs; isolated outputs |
| Input Scan Time | Typical < 10 ms |
| Rated Supply Voltage | 24 V DC (system supplied) |
| Operating Temperature | –30 °C to +65 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting Method | DIN-rail mounting |
| Dimensions (H × W × D) | Approx. 170 mm × 120 mm × 45 mm |
| Weight | Approx. 0.7 kg |
| Typical Application | Industrial and turbine control systems requiring combined I/O |
FAQ
FAQ
Q1. What is the purpose of the IS220PDIOS1A module?
It provides discrete input monitoring and discrete output control for field devices in Mark VIe systems.
Q2. How many input and output channels are available?
The module has 16 discrete input channels and 16 discrete output channels.
Q3. What voltage range is supported for inputs?
Inputs support 24 V DC signals within an 18–32 V range.
Q4. What type of outputs does the module provide?
Outputs are relay/contact type, supporting up to 2 A per channel at 24–125 V DC or 24–250 V AC.
Q5. Does the module provide electrical isolation?
Yes, it includes optical isolation for inputs and isolated outputs for system protection.
Q6. Which control systems is this module compatible with?
It is designed for GE Mark VIe control platforms.
Q7. How is the module installed?
The module is mounted on a standard DIN rail.
Q8. What applications typically use this module?
It is commonly used in turbine control, power generation, and industrial automation applications requiring combined discrete input/output functionality.
