Technical Specifications
| Parameter | Description |
|---|---|

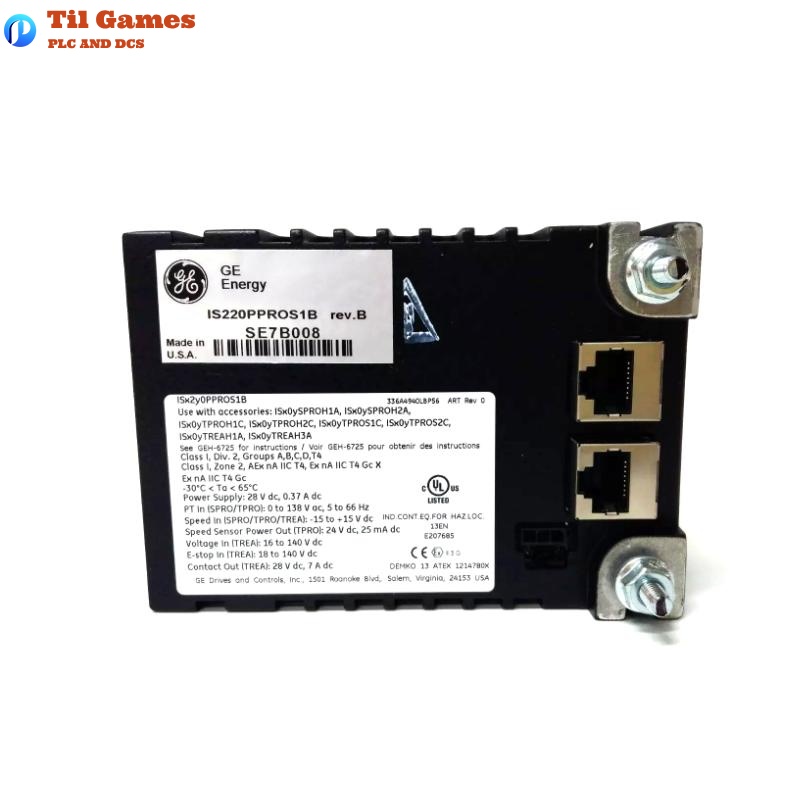

| Model | IS220PPROS1B |
| Series | Mark VIe |
| Function | Emergency Turbine Protection I/O Pack |
| Communication | Dual 10/100 Mbps Ethernet ports (auto-negotiation) |
| Mounting Options | Direct mount on SPRO or TREA |
| Supported Trip Boards | TREG, TREL, TRES, TREA |
| Overspeed Monitoring | Hardware Overspeed, Acceleration, Deceleration |
| Application Code | Loaded from internal flash memory |

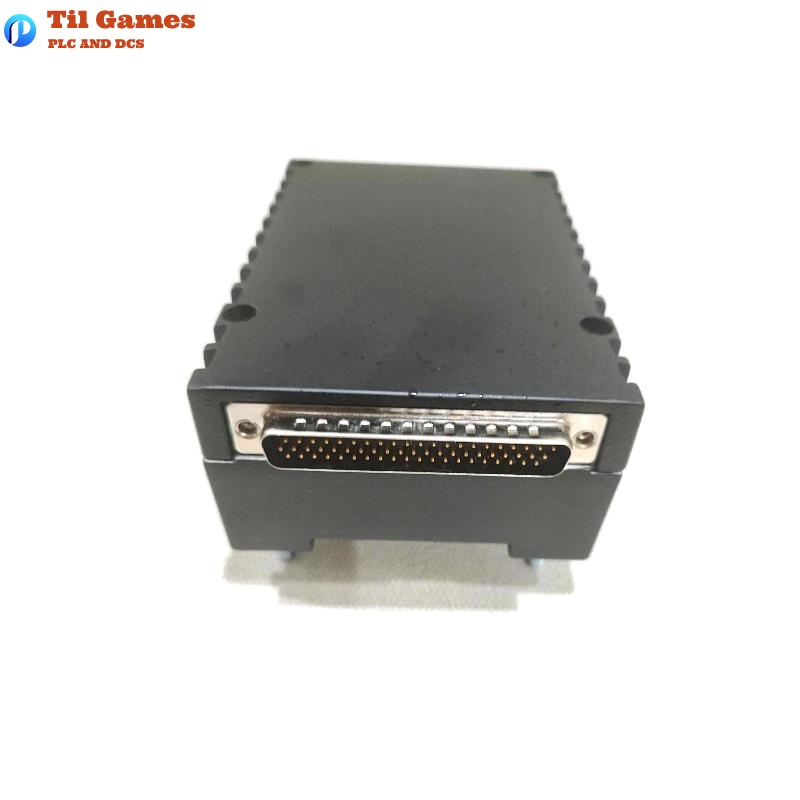

| Cable Connector Type | DC-37 pin cable (SPRO to trip board) |
| Power Features | Soft-start circuit, local power sequencing |
| Watchdog Timer | Integrated hardware watchdog |
| Temperature Sensor | Built-in |

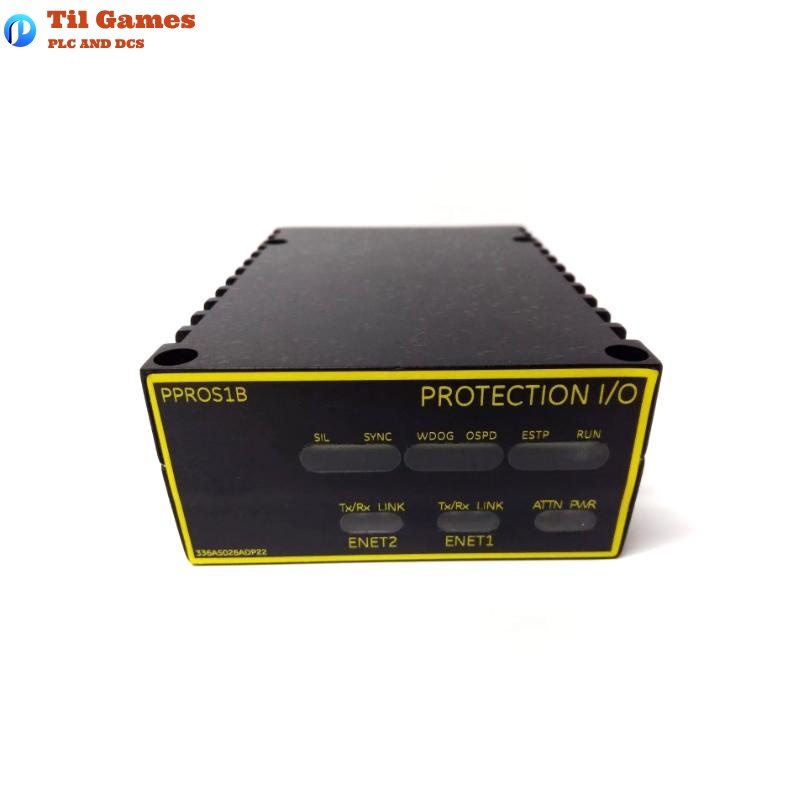

| Status Indication | Front panel LEDs |
| Dimensions | 143 x 231 x 64 mm |
| Weight | 0.45 kg |
FAQ
FAQ
Q1: What types of trip terminal boards are compatible with IS220PPROS1B?
A1: IS220PPROS1B is compatible with TREG, TREL, TRES, and TREA trip boards.
Q2: How does IS220PPROS1B ensure system fault tolerance?
A2: It uses dual Ethernet ports operating concurrently, maintaining communication if one fails.
Q3: Can IS220PPROS1B be used in both simplex and TMR configurations?
A3: Yes, it supports both simplex and Triple Modular Redundant (TMR) setups.
Q4: What are the mounting requirements for IS220PPROS1B?
A4: It can be directly mounted on SPRO or TREA boards with bracket alignment and secured by threaded posts.
Q5: What protection features are provided by the PPRO module?
A5: It offers backup overspeed protection, acceleration/deceleration checks, and monitors the primary trip system.
Q6: How is power managed in the IS220PPROS1B module?
A6: It includes a soft-start circuit with local power monitoring and sequencing.
Q7: Is Ethernet connection polarity important during installation?
A7: No, the module automatically selects the correct operation regardless of which Ethernet port is used.
Q8: What tools are used for configuring the IS220PPROS1B?
A8: Configuration is performed using GE’s ToolboxST* software.
