Technical Specifications
| Parameter | Description |
|---|---|

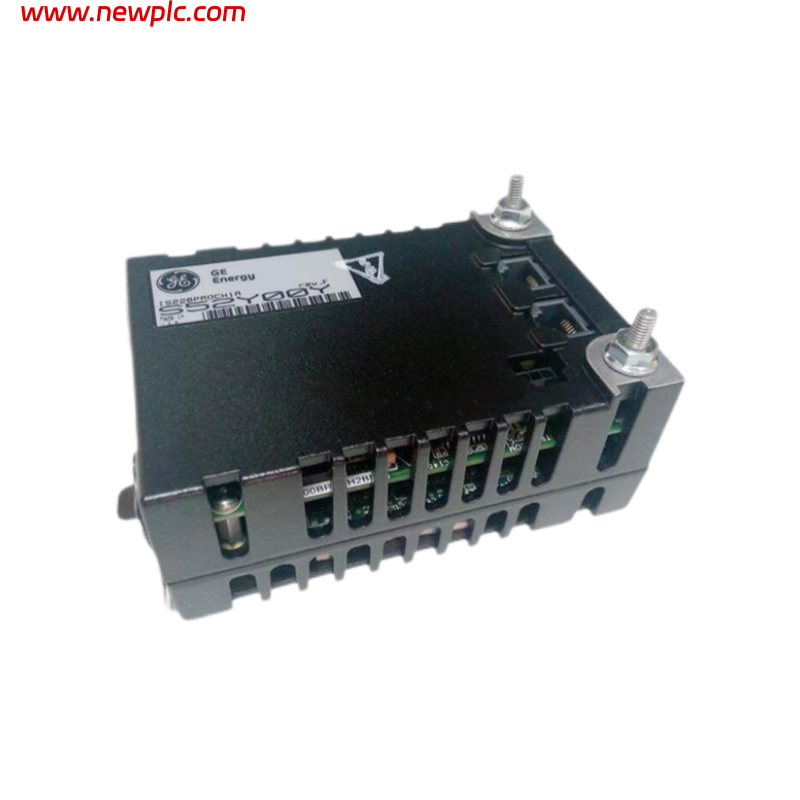

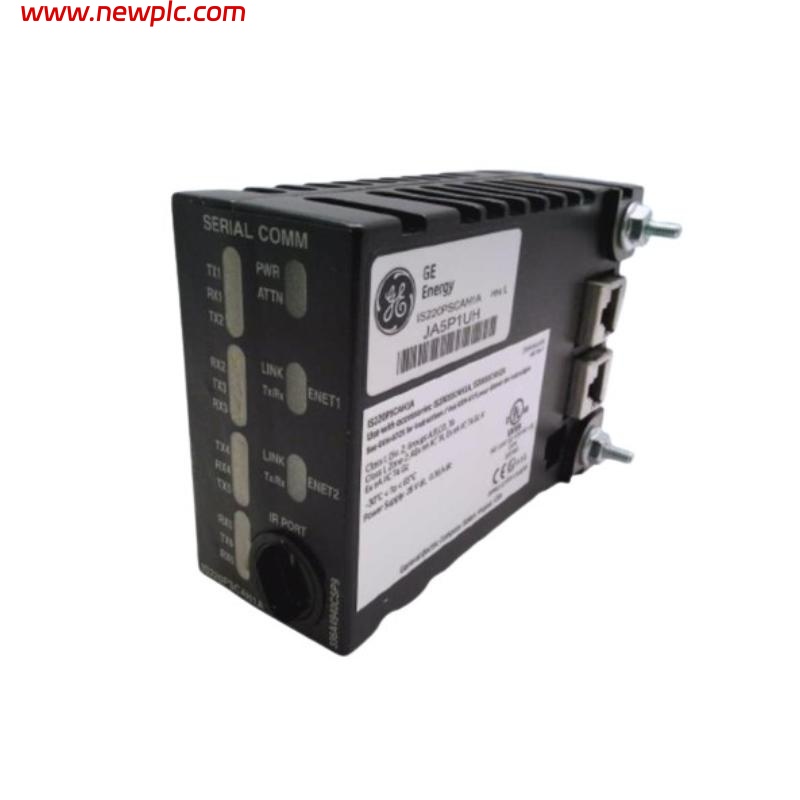

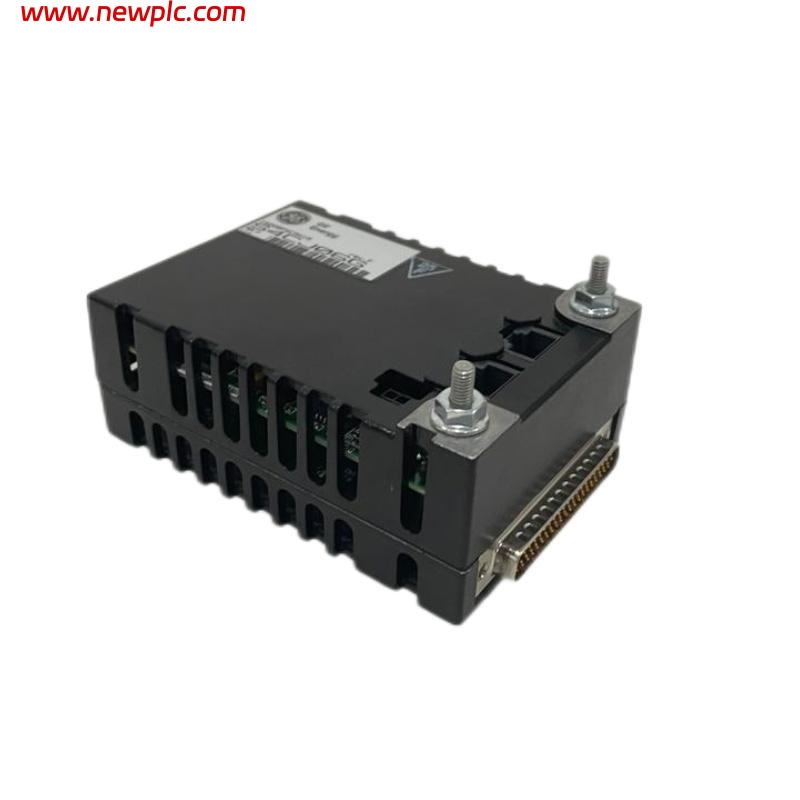

| Product Model | GE IS220PSCAH1A |
| Product Type | Serial Communication Module |
| Series | Mark VIe |
| Communication Type | Serial interface |
| Supported Protocols | RS-232 / RS-485 |
| Number of Ports | 2 serial communication ports |
| Data Rate | Configurable, up to 115.2 kbps |
| Communication Mode | Full-duplex / Half-duplex |
| Electrical Isolation | Port-to-system isolation |
| Rated Supply Voltage | 24 V DC (system supplied) |
| Operating Temperature | –30 °C to +65 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting Method | DIN-rail mounting |
| Dimensions (H × W × D) | Approx. 170 mm × 120 mm × 45 mm |
| Weight | Approx. 0.6 kg |
| Typical Application | Serial communication for Mark VIe control systems |
FAQ
FAQ
Q1. What is the main function of the IS220PSCAH1A?
It provides serial communication capability between external devices and the Mark VIe control system.
Q2. Which communication standards are supported?
It supports standard RS-232 and RS-485 serial communication.
Q3. How many serial ports are available on the module?
The module provides two independent serial communication ports.
Q4. Is electrical isolation provided for communication ports?
Yes, port-to-system isolation is included to protect against electrical interference.
Q5. Which control systems is the IS220PSCAH1A compatible with?
It is designed specifically for GE Mark VIe control platforms.
Q6. How is the module installed in a control cabinet?
It is installed using standard DIN-rail mounting.
Q7. Can the module operate in harsh industrial environments?
Yes, it is designed to operate reliably across wide temperature and humidity ranges.
Q8. What applications typically use this module?
It is commonly used for serial communication with analyzers, drives, and auxiliary control devices in turbine and industrial automation systems.
