Technical Specifications
| Parameter | Description |
|---|---|

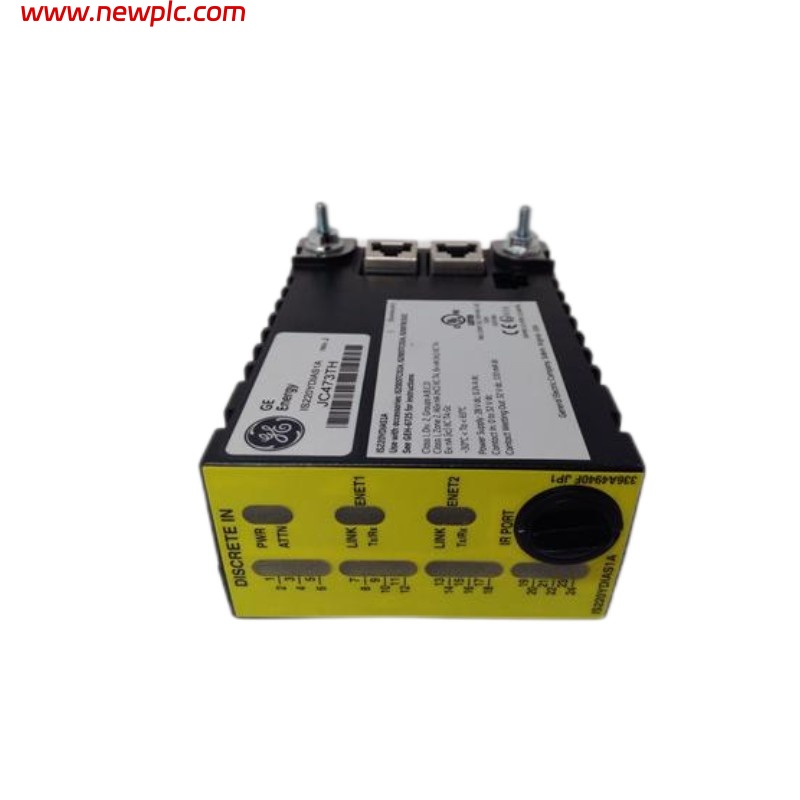

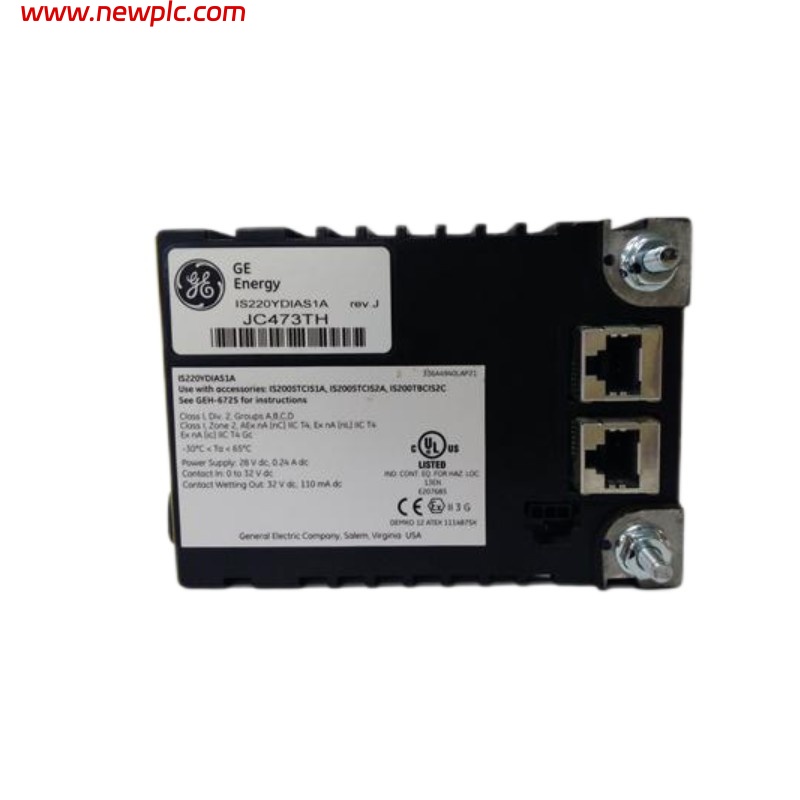

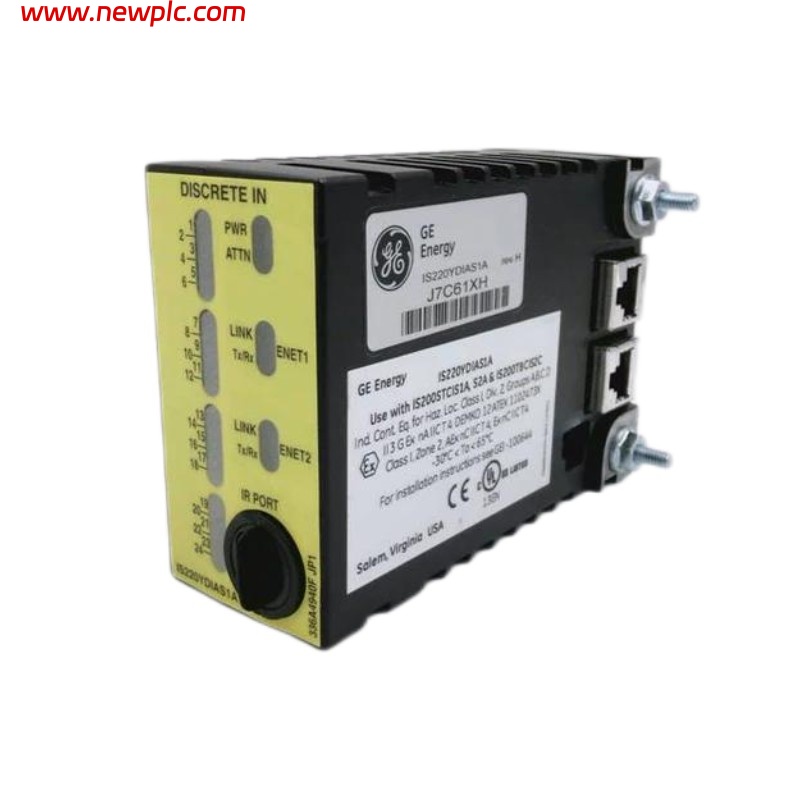

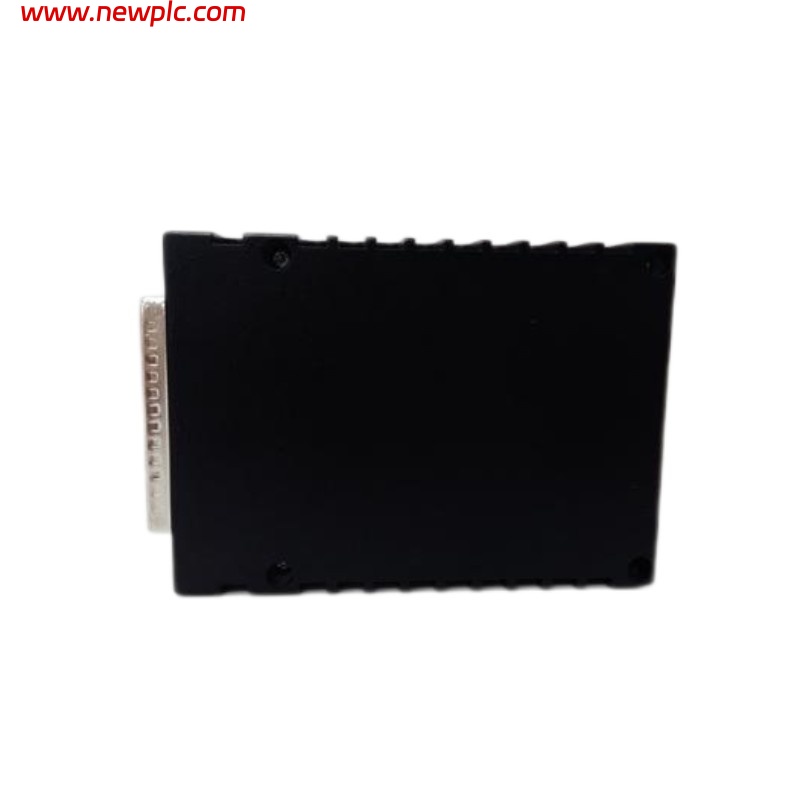

| Product Model | GE IS220YDIAS1AK |
| Product Type | Digital Input/Output Module |
| Series | Mark VIe |
| Input Channels | 16 discrete input channels |
| Output Channels | 16 discrete output channels |
| Input Signal Type | 24 V DC discrete input |
| Output Signal Type | Relay / contact output |
| Input Voltage Range | 18–32 V DC |
| Output Voltage Rating | 24–125 V DC / 24–250 V AC |
| Output Current Rating | Up to 2 A per channel |
| Logic Detection | ON/OFF status sensing |
| Electrical Isolation | Optical isolation for inputs; isolated outputs |
| Input Scan Time | Typical < 10 ms |
| Rated Supply Voltage | 24 V DC (system supplied) |
| Operating Temperature | –30 °C to +65 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting Method | DIN-rail mounting |
| Dimensions (H × W × D) | Approx. 170 mm × 120 mm × 45 mm |
| Weight | Approx. 0.7 kg |
| Typical Application | Combined discrete input/output for industrial and turbine control systems |
FAQ
FAQ
Q1. What is the primary function of the IS220YDIAS1AK?
It provides combined discrete input monitoring and discrete output control in a Mark VIe system.
Q2. How many input and output channels does it support?
The module has 16 discrete input channels and 16 discrete output channels.
Q3. What voltage range is supported for inputs?
It supports 24 V DC discrete input signals within an 18–32 V range.
Q4. What type of outputs does the module provide?
Outputs are relay/contact type, capable of 24–125 V DC or 24–250 V AC at up to 2 A per channel.
Q5. Does the module include electrical isolation?
Yes, optical isolation is provided for inputs and outputs.
Q6. Which control systems is this module compatible with?
It is designed for GE Mark VIe control systems.
Q7. How is the module installed?
The module is mounted on a standard DIN rail inside the control cabinet.
Q8. What applications typically use this module?
It is commonly used in turbine control, power generation, and industrial automation systems requiring combined discrete I/O functionality.
