Technical Specifications
| Item | Specification |
|---|---|

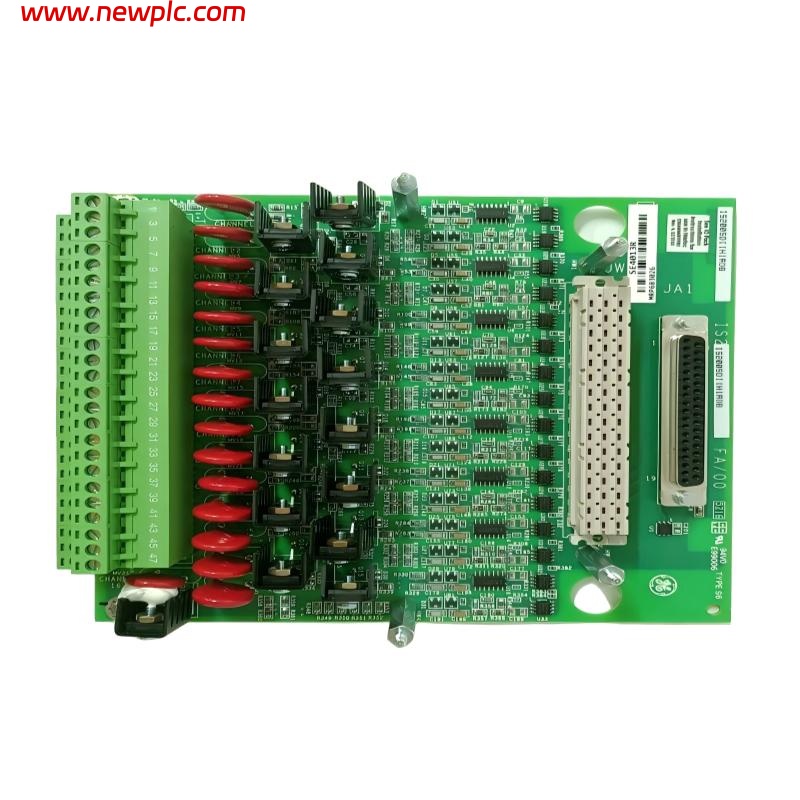

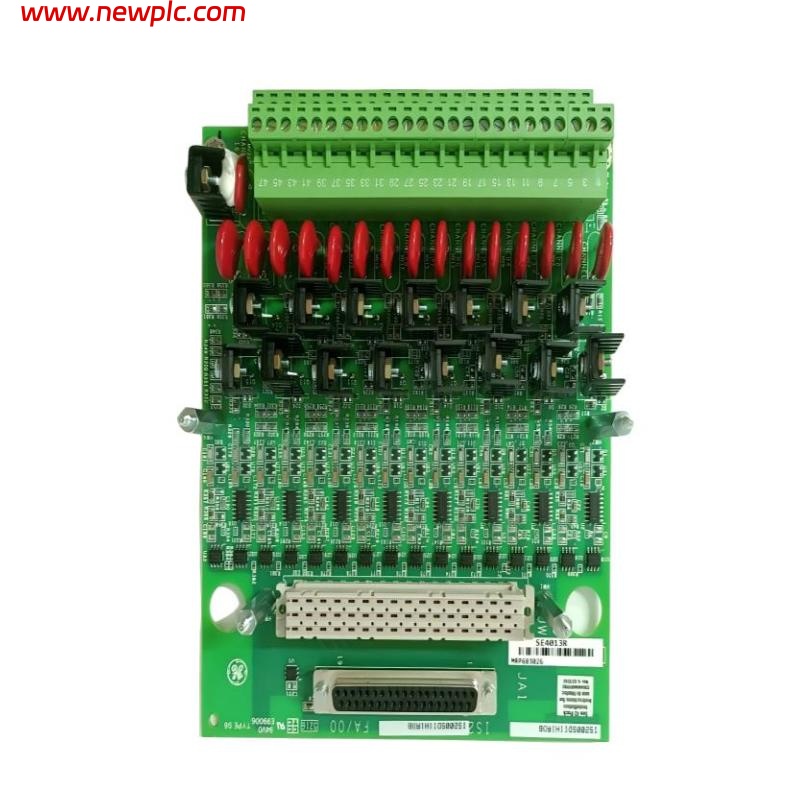

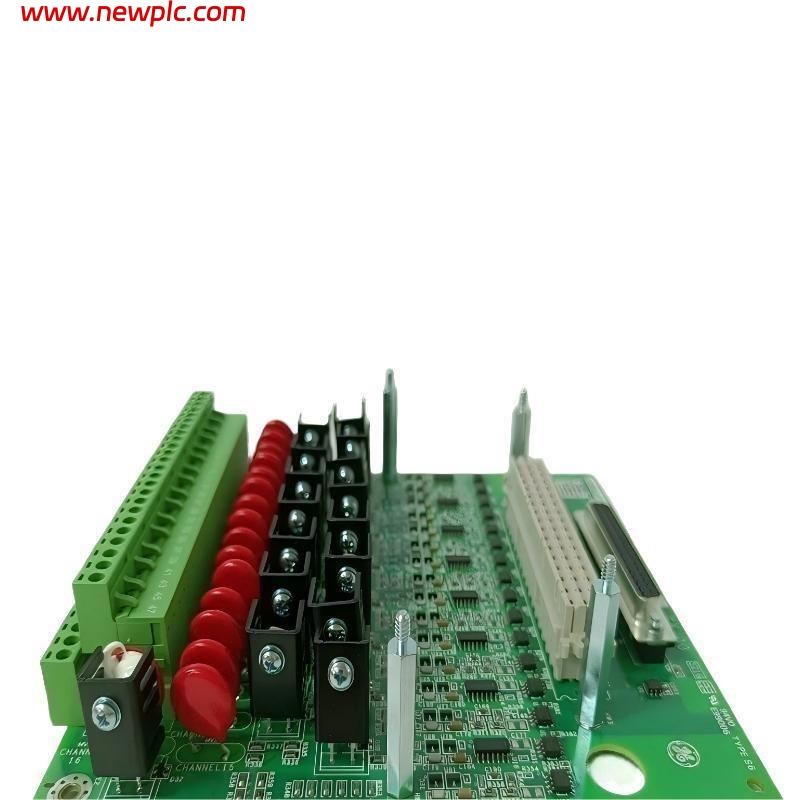

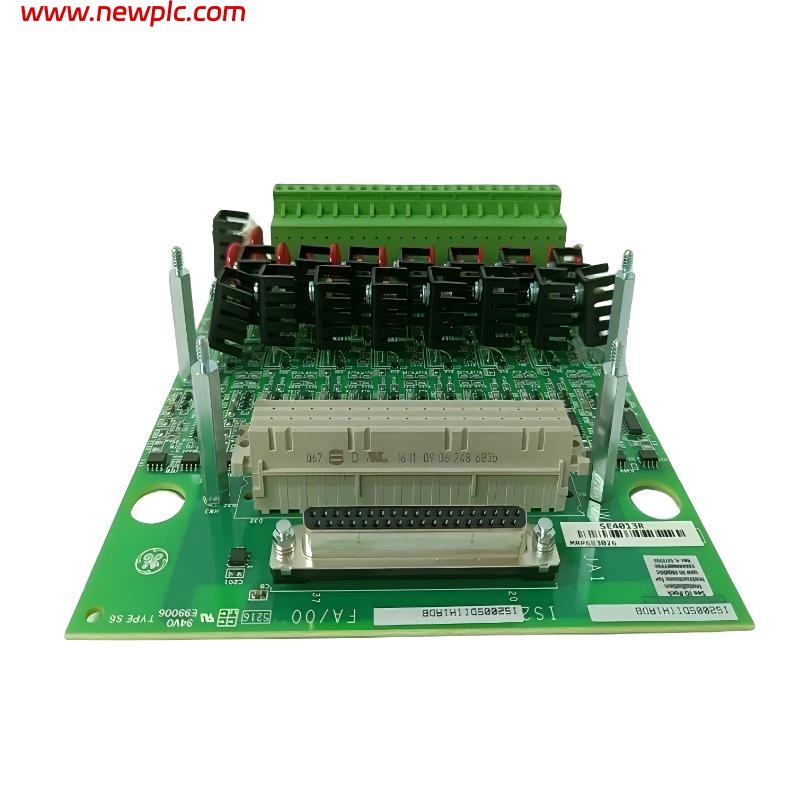

| Model | IS230SDIIH1A / IS200SDIIH1ADB |
| Product Type | Isolated Contact Input Assembly |
| Function | Provides electrically isolated contact input signals to control systems |
| Input Type | Dry contact / relay contact inputs |
| Isolation Voltage | 1500 V AC between input and output circuits |
| Response Time | ≤ 2 ms typical |
| Maximum Switching Current | 10 mA nominal |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Shock Resistance | Industrial rated |
| Vibration Resistance | Suitable for high-vibration environments |
| Housing Material | Plastic / composite insulating material |
| Mounting | DIN rail or panel mountable |
| Dimensions | 245 × 170 × 35 mm |
| Weight | 0.75 kg |
FAQ
FAQ
Q1: What is the main purpose of the isolated contact input assembly?
A1: It converts mechanical contact closures into electrically isolated signals to protect control system inputs from voltage spikes and noise.
Q2: What types of contacts can be connected to this assembly?
A2: Both dry contacts and relay contacts are supported, providing flexibility for integration with various devices.
Q3: How is electrical isolation achieved?
A3: Isolation is provided via internal optical couplers or transformer circuits, ensuring up to 1500 V AC separation between input and output.
Q4: Can the assembly handle fast switching signals?
A4: Yes, with a typical response time of 2 milliseconds, it can handle high-speed switching applications.
Q5: Is this assembly suitable for industrial environments with vibration and shocks?
A5: Yes, it is designed to withstand industrial shocks and vibrations when properly mounted on DIN rails or panels.
Q6: How does the assembly protect the control system from electrical faults?
A6: By providing galvanic isolation between input contacts and the output circuitry, it prevents high voltage transients from reaching sensitive control electronics.
Q7: Can multiple assemblies be used together in one control system?
A7: Yes, multiple units can be integrated to expand the number of isolated contact inputs available to the system.
Q8: What maintenance is required for reliable operation?
A8: Routine inspection of wiring connections and checking for any physical damage to the housing are sufficient; no calibration is needed.
