Technical Specifications
| Parameter | Description |
|---|---|

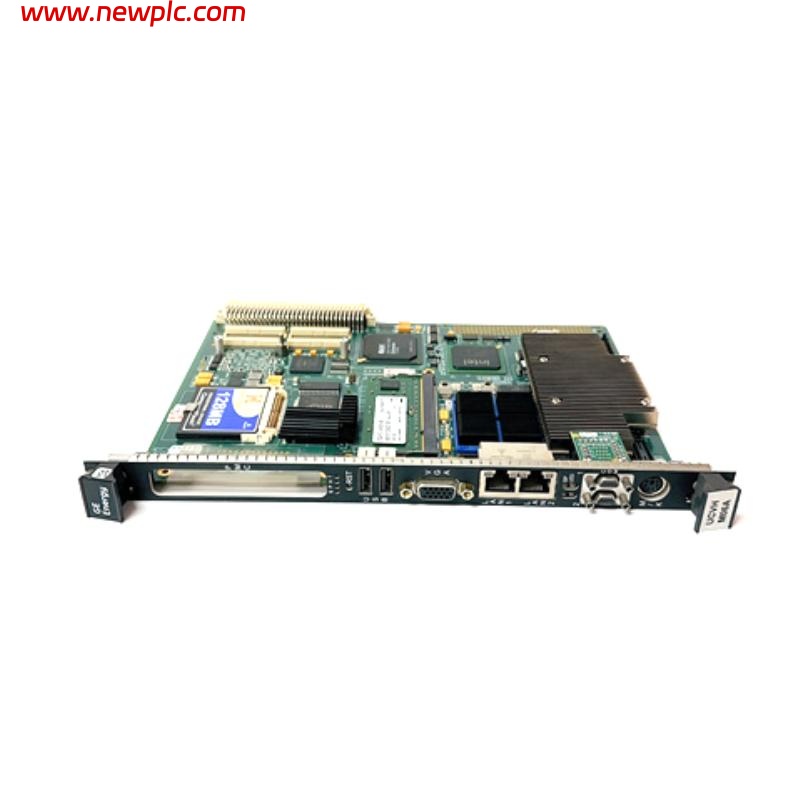

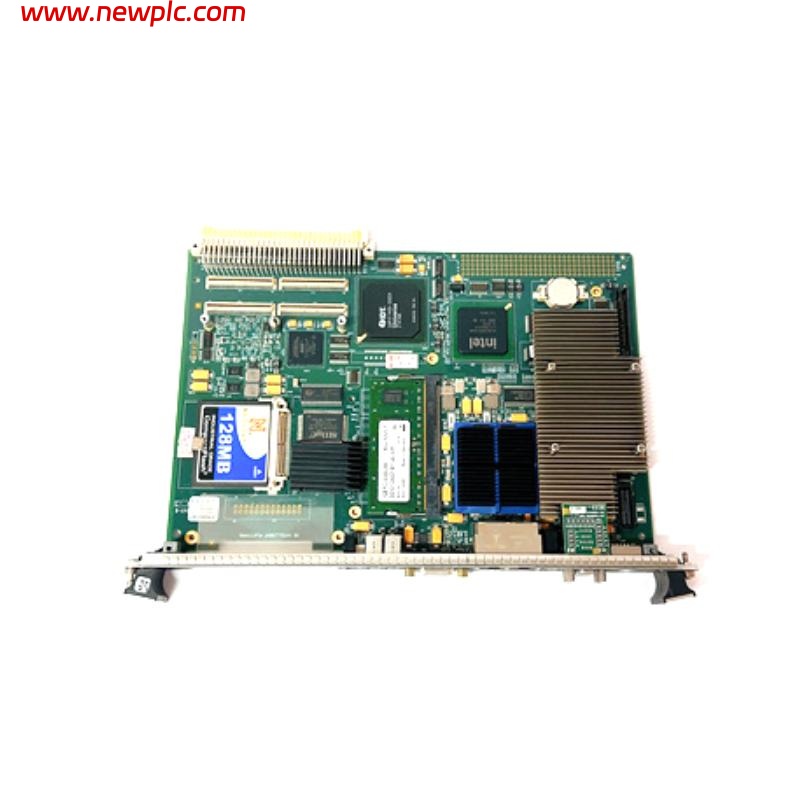

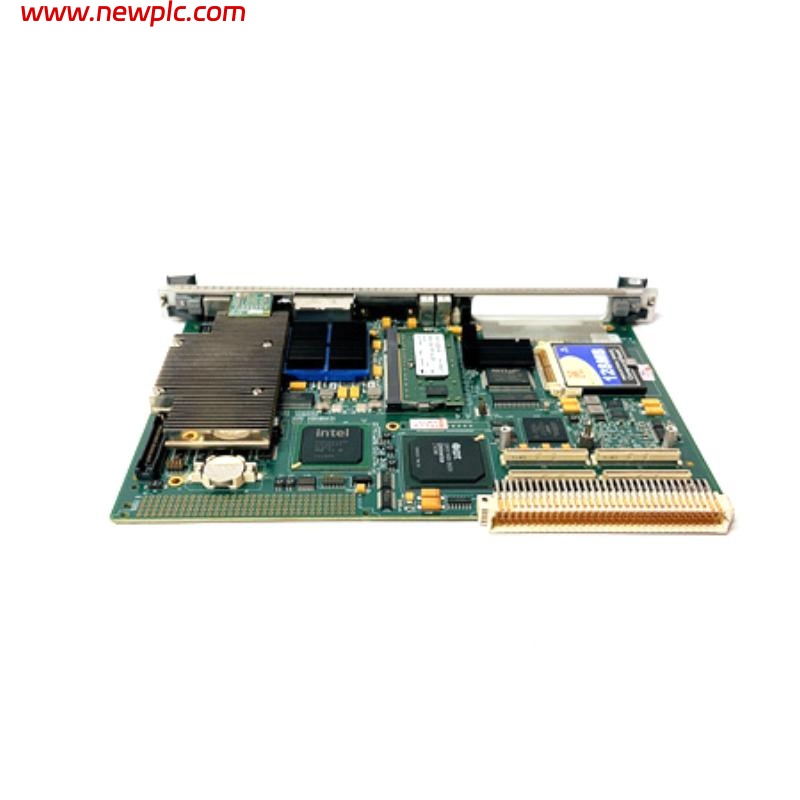

| Model Number | GE IS415UCVHH1AB |
| Series | Mark VIe Innovation Series |
| Type | VME Platform Controller (Single Board Computer) |
| Application Scope | Gas turbines, steam turbines, LM derivatives, BOP |
| Rack Height | 6U, mounts in a VME rack |
| Operating System | QNX real-time multitasking industrial OS |
| Communication Ports | 3 ports: 2 × RS-232C, 1 × Ethernet |
| Ethernet Connectivity | For UDH, HMI, and control device communication |
| COM1 Port | RS-232C for configuration setup |
| COM2 Port | RS-232C for DCS integration |
| Execution Capacity | Up to 100,000 rungs or blocks per second |
| Synchronization Accuracy | 100 microseconds with VCMI board clock |
| Data Exchange Method | Via VME bus to/from VCMI communication board |
| Control Module Contents | Includes UCVH controller and VCMI board |
| Supported Rack Types | GE Fanuc short rack (remote I/O), Mark VIe long rack |
| Cooling System | Fan above or below controller, depending on rack |
| Additional Board | VDSK board required for standalone use in GE Fanuc rack |
| Dimensions (L×W×H) | 200 × 115 × 57 mm |
| Weight | 0.788 kg |
FAQ
FAQ
Q1: What operating system does the GE IS415UCVHH1AB use?
A1: It uses the QNX real-time operating system, designed for high-speed industrial applications.
Q2: What applications is this controller suited for?
A2: It is designed for gas turbines, steam turbines, LM land-marine derivatives, and balance of plant systems.
Q3: What is the maximum logic execution capability of the controller?
A3: It can process up to 100,000 rungs or logic blocks per second under normal conditions.
Q4: How does the controller communicate with I/O boards?
A4: It communicates via the VME bus and exchanges data with the VCMI board.
Q5: Is the controller compatible with DCS systems?
A5: Yes, it connects to distributed control systems via the COM2 RS-232C port.
Q6: What components make up a complete control module?
A6: A control module includes the UCVH controller and a VCMI communication board.
Q7: Can a GE Fanuc short rack be used with this controller?
A7: Yes, but only for standalone modules using remote I/O.
Q8: What is the synchronization precision of this controller?
A8: The controller synchronizes with the VCMI clock within 100 microseconds.
